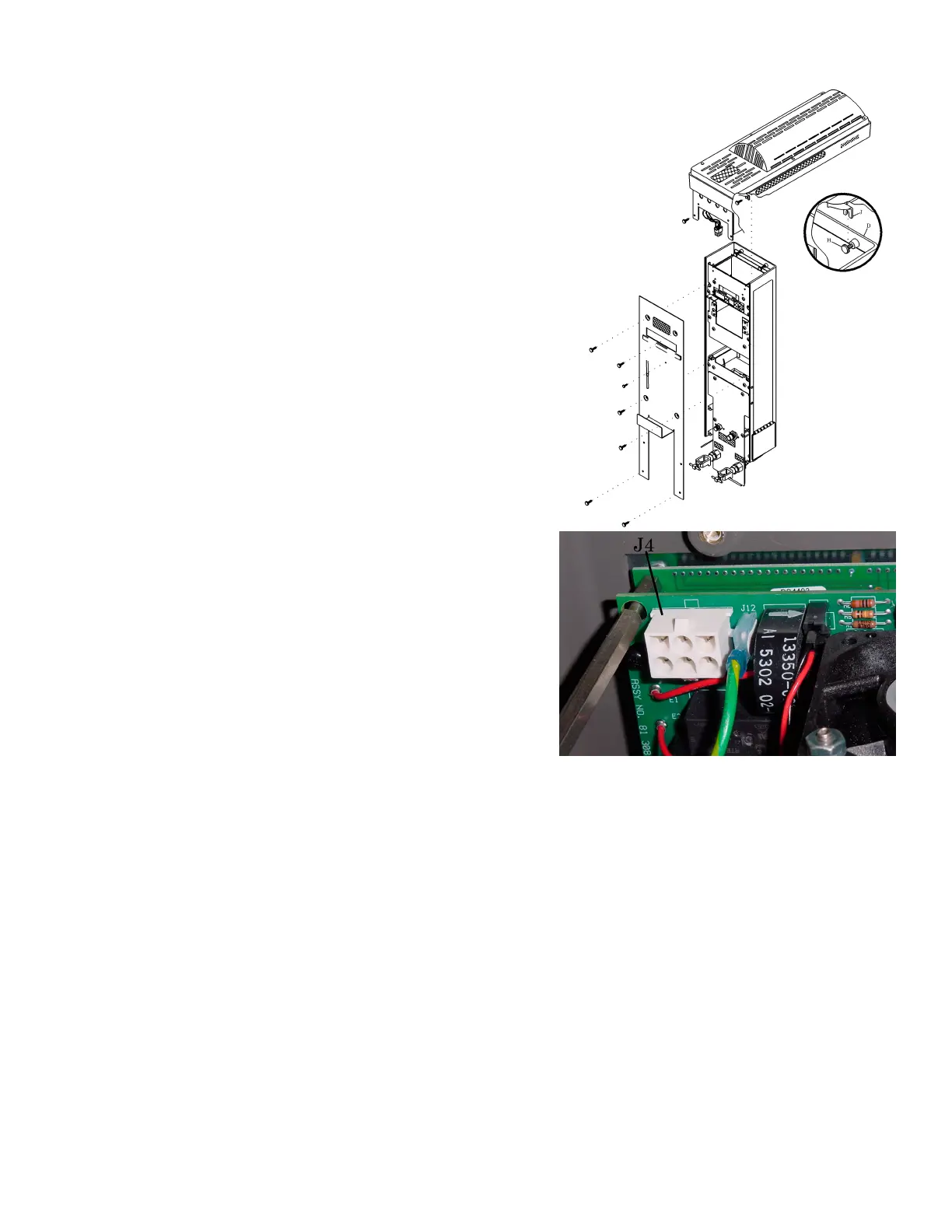

10. Install and turn, but do not tighten, the two #10-32 x
3/8" Nylok screws three or four revolutions only in the
upper holes on the inside of the upper post.
11. Slowly lower the warmer onto the upper post, and
align the slots of the warmer under the two #10-32 x
3/8" Nylok screws in the upper holes on the inside of
the upper post.
12. Install the four #10-32 x 3/8" Nylok screws to secure
the pivot bracket to the head support plate.
13. Tighten the two #10-32 x 3/8" Nylok screws installed
in step 7 to secure the warmer to the upper post.
14. Remove and discard the two #10-32 x 3/8" Nylok
screws from the lower corners of the head support
plate.
15. Thread the power cable out through the opening in the
front of the upper post.
16. At the controller, connect the power cable to connector
J4 on the power and control P.C. board assembly.
