Item Description
Key - Type 8 ~ 63 ASCII characters or 64 hexadecimal digits
leading by ā0xā.
Bridge
If you choose Bridge as the connecting mode, please type in
the peer MAC address in these fields. Four peer MAC
addresses are allowed to be entered in this page at one time.
Yet please disable the unused link to get better performance. If
you want to invoke the peer MAC address, remember to check
Enable box in the front of the MAC address after typing.
Repeater
If you choose Repeater as the connecting mode, please type in
the peer MAC address in these fields. Four peer MAC
addresses are allowed to be entered in this page at one time.
Similarly, if you want to invoke the peer MAC address,
remember to check Enable box in the front of the MAC
address after typing.
Access Point Function
Click Enable to make this router serving as an access point;
click Disable to cancel this function.
Status
It allows user to send āhelloā message to peers. Yet, it is valid
only when the peer also supports this function.
After finishing all the settings here, please click OK to save the configuration.
4
4
.
.
1
1
2
2
.
.
7
7
A
A
d
d
v
v
a
a
n
n
c
c
e
e
d
d
S
S
e
e
t
t
t
t
i
i
n
n
g
g

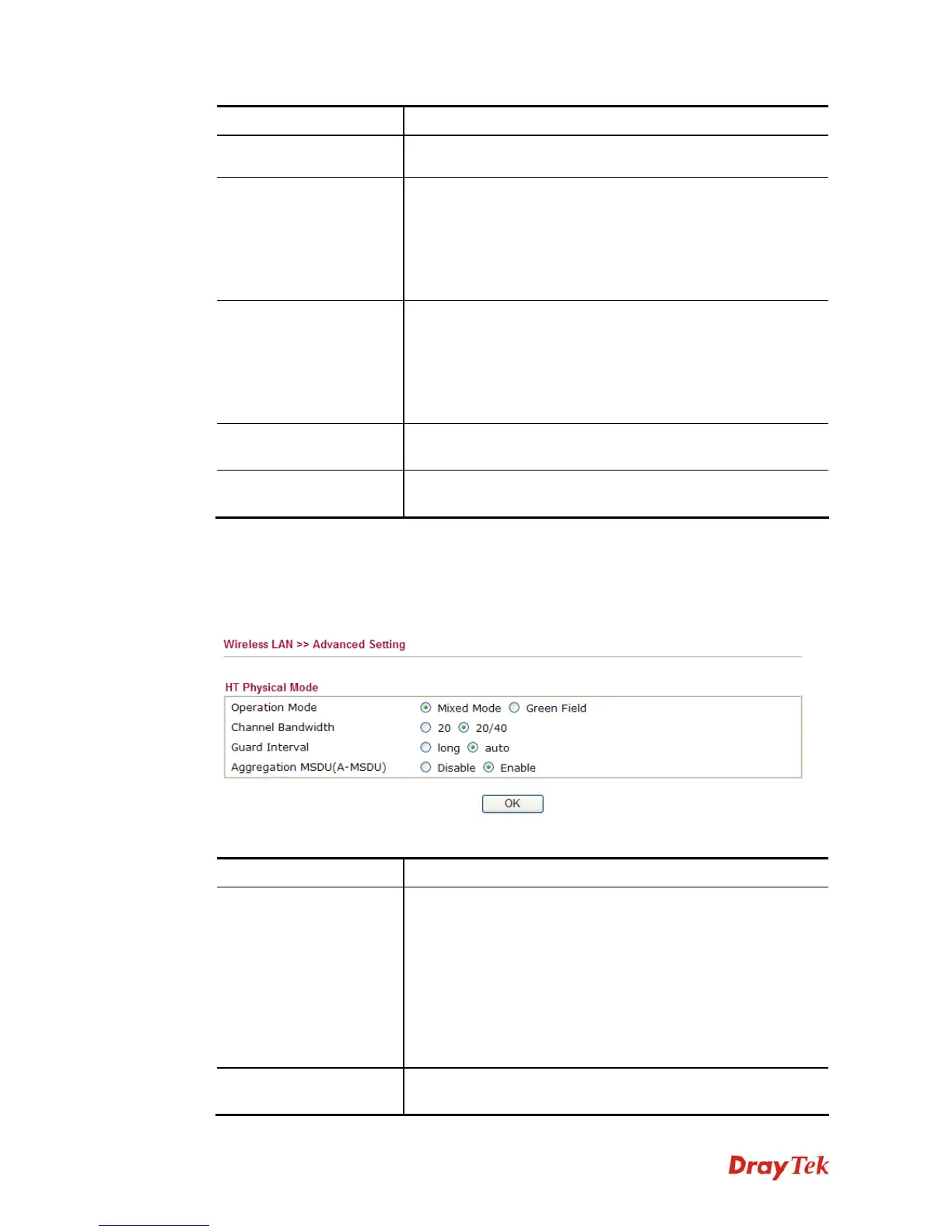

This page allows users to set advanced settings such as operation mode, channel bandwidth,
