Vigor2920 Series User’s Guide
136
This page displays the QoS settings result of the WAN interface. Click the Setup link to
access into next page for the general setup of WAN interface. As to class rule, simply click the
Edit link to access into next for configuration.
You can configure general setup for the WAN interface, edit the Class Rule, and edit the
Service Type for the Class Rule for your request.
G
G
e
e
n
n
e
e
r
r
a
a
l
l
S
S
e
e
t
t
u
u
p
p
f
f
o
o
r
r
W
W
A
A
N
N
I
I
n
n
t
t
e
e
r
r
f
f
a
a
c
c
e
e

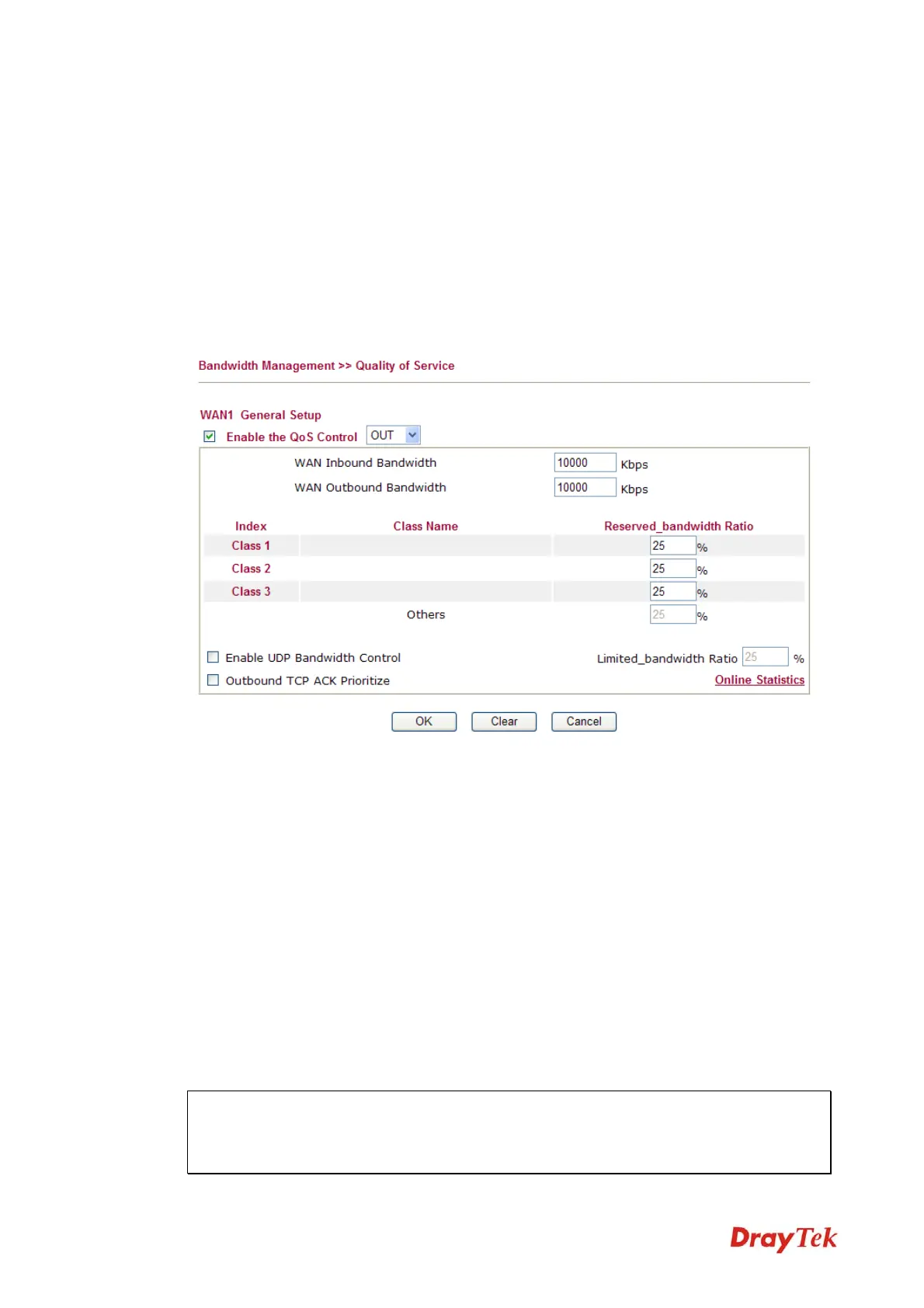

When you click Setup, you can configure the bandwidth ratio for QoS of the WAN interface.
There are four queues allowed for QoS control. The first three (Class 1 to Class 3) class rules
can be adjusted for your necessity. Yet, the last one is reserved for the packets which are not
suitable for the user-defined class rules.
Enable the QoS Control The factory default for this setting is checked.
Please also define which traffic the QoS Control settings will
apply to.
IN- apply to incoming traffic only.
OUT-apply to outgoing traffic only.
BOTH- apply to both incoming and outgoing traffic.
Check this box and click OK, then click Setup link again. You
will see the Online Statistics link appearing on this page.
WAN Inbound Bandwidth It allows you to set the connecting rate of data input for WAN.
For example, if your ADSL supports 1M of downstream and
256K upstream, please set 1000kbps for this box. The default
value is 10000kbps.
WAN Outbound Bandwidth It allows you to set the connecting rate of data output for WAN.
For example, if your ADSL supports 1M of downstream and
256K upstream, please set 256kbps for this box. The default
value is 10000kbps.
Note: The rate of outbound/inbound must be smaller than the real bandwidth to ensure
correct calculation of QoS. It is suggested to set the bandwidth value for inbound/outbound
as 80% - 85% of physical network speed provided by ISP to maximize the QoS
performance.
