Vigor2920 Series User’s Guide

179

SSID Display the SSID1 of the router. WPS is supported by

SSID1 only.

Authentication Mode Display current authentication mode of the router. Only

WPA2/PSK and WPA/PSK support WPS.

Configure via Push Button Click Start PBC to invoke Push-Button style WPS setup

procedure. The router will wait for WPS requests from

wireless clients about two minutes. The WPS LED on the

router will blink fast when WPS is in progress. It will

return to normal condition after two minutes. (You need to

setup WPS within two minutes)

Configure via Client PinCode Please input the PIN code specified in wireless client you

wish to connect, and click Start PIN button. The WPS

LED on the router will blink fast when WPS is in progress.

It will return to normal condition after two minutes. (You

need to setup WPS within two minutes)

WDS means Wireless Distribution System. It is a protocol for connecting two access points

(AP) wirelessly. Usually, it can be used for the following application:

y Provide bridge traffic between two LANs through the air.

y Extend the coverage range of a WLAN.

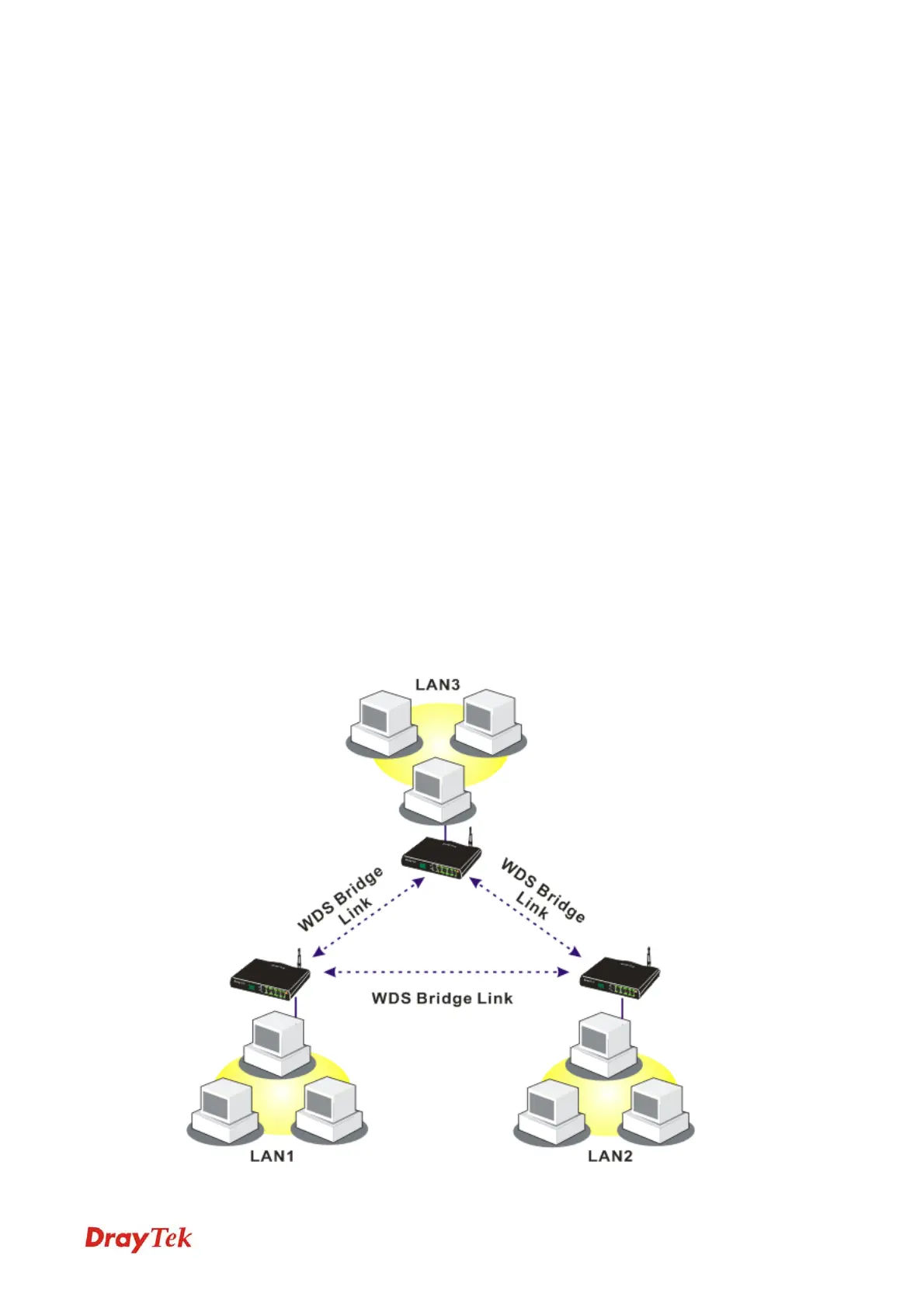

To meet the above requirement, two WDS modes are implemented in Vigor router. One is

Bridge, the other is Repeater. Below shows the function of WDS-bridge interface:
