Vigor2920 Series User’s Guide
138

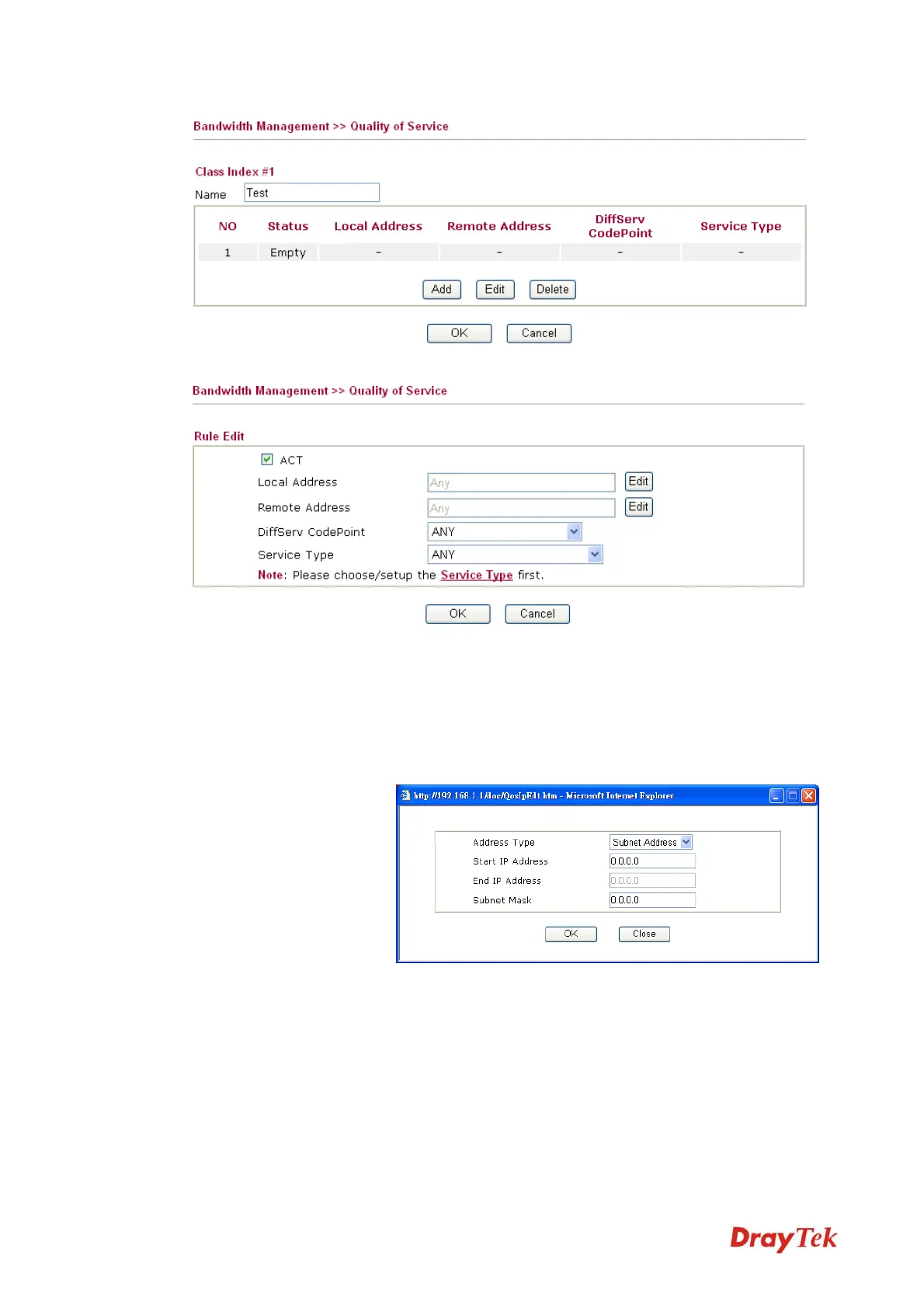

For adding a new rule, click Add to open the following page.
ACT Check this box to invoke these settings.
Local Address Click the Edit button to set the local IP address (on LAN) for
the rule.
Remote Address Click the Edit button to set the remote IP address (on
LAN/WAN) for the rule.
Edit It allows you to edit source address information.
Address Type – Determine the address type for the source
address.
For Single Address, you have to fill in Start IP address.
For Range Address, you have to fill in Start IP address and
End IP address.
For Subnet Address, you have to fill in Start IP address and
Subnet Mask.
DiffServ CodePoint All the packets of data will be divided with different levels and
will be processed according to the level type by the system.
Please assign one of the levels of the data for processing with
QoS control.
