Vigor2920 Series User’s Guide
149

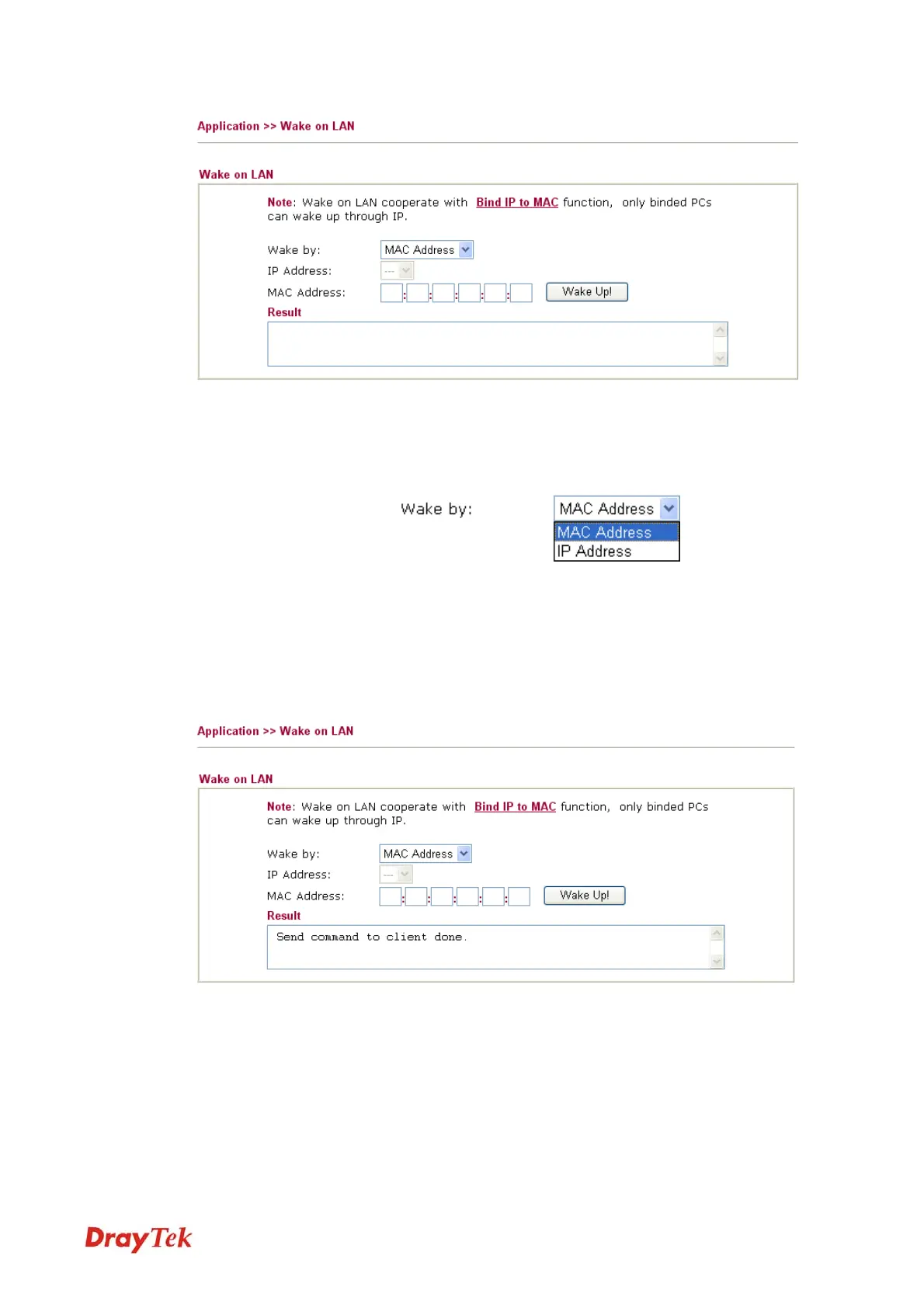

Wake by Two types provide for you to wake up the binded IP. If you
choose Wake by MAC Address, you have to type the correct
MAC address of the host in MAC Address boxes. If you choose
Wake by IP Address, you have to choose the correct IP address.
IP Address The IP addresses that have been configured in Firewall>>Bind
IP to MAC will be shown in this drop down list. Choose the IP
address from the drop down list that you want to wake up.
MAC Address Type any one of the MAC address of the bound PCs.
Wake Up Click this button to wake up the selected IP. See the following
figure. The result will be shown on the box.
VoIPon www.voipon.co.uk sales@voipon.co.uk Tel: +44 (0)1245 808195 Fax: +44 (0)1245 808299
