Vigor2920 Series User’s Guide
46
If you previously have set up WAN Alias for PPPoE or Static or Dynamic IP mode, you will
find them in Aux. WAN IP for your selection.
Enable Check to enable the DMZ Host function.
Private IP Enter the private IP address of the DMZ host, or click Choose PC to
select one.

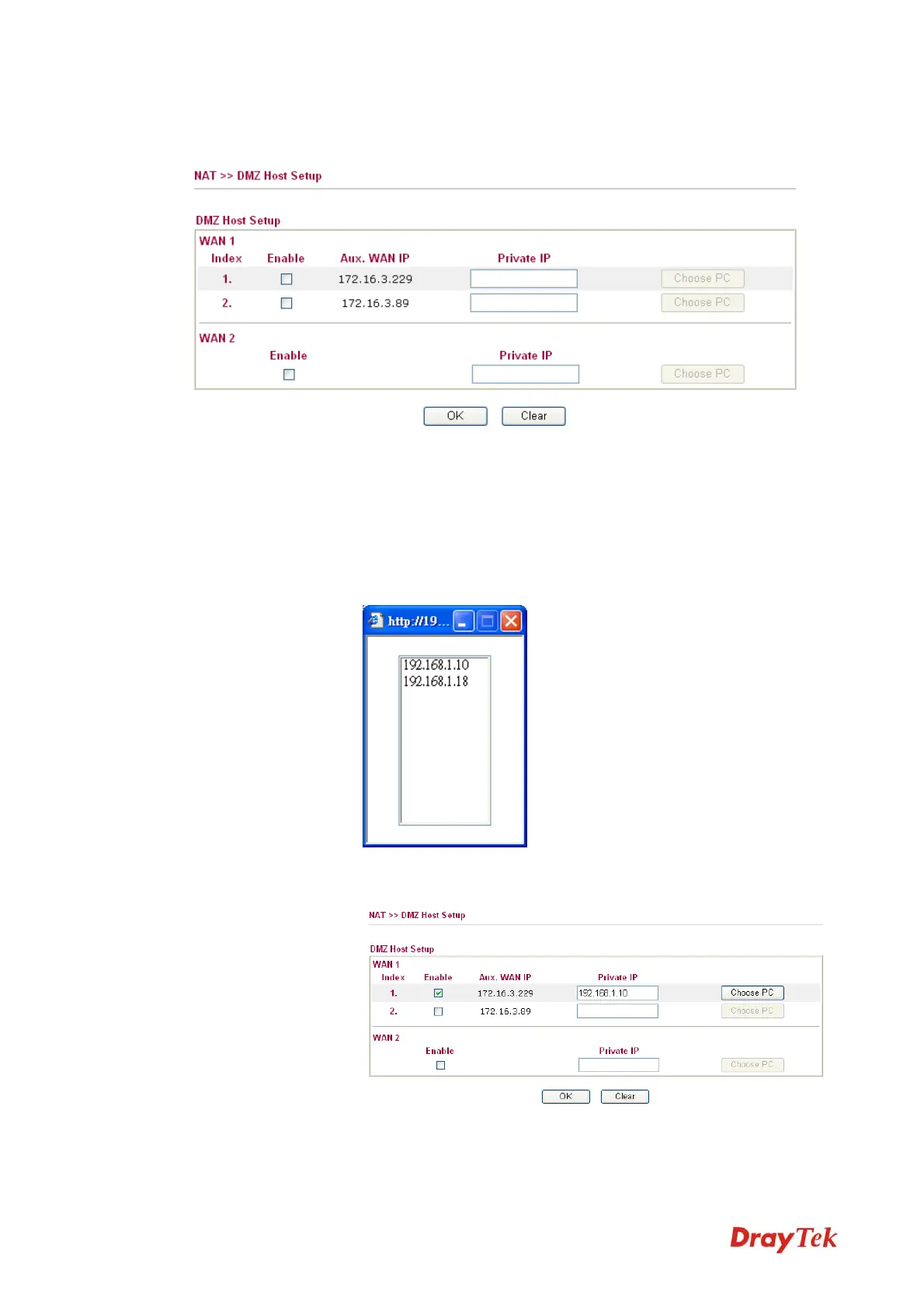

Choose PC Click this button and then a window will automatically pop up, as
depicted below. The window consists of a list of private IP addresses
of all hosts in your LAN network. Select one private IP address in
the list to be the DMZ host.
When you have selected one private IP from the above dialog, the IP
address will be shown on the following screen. Click OK to save the
setting.
