Vigor2920 Series User’s Guide
7

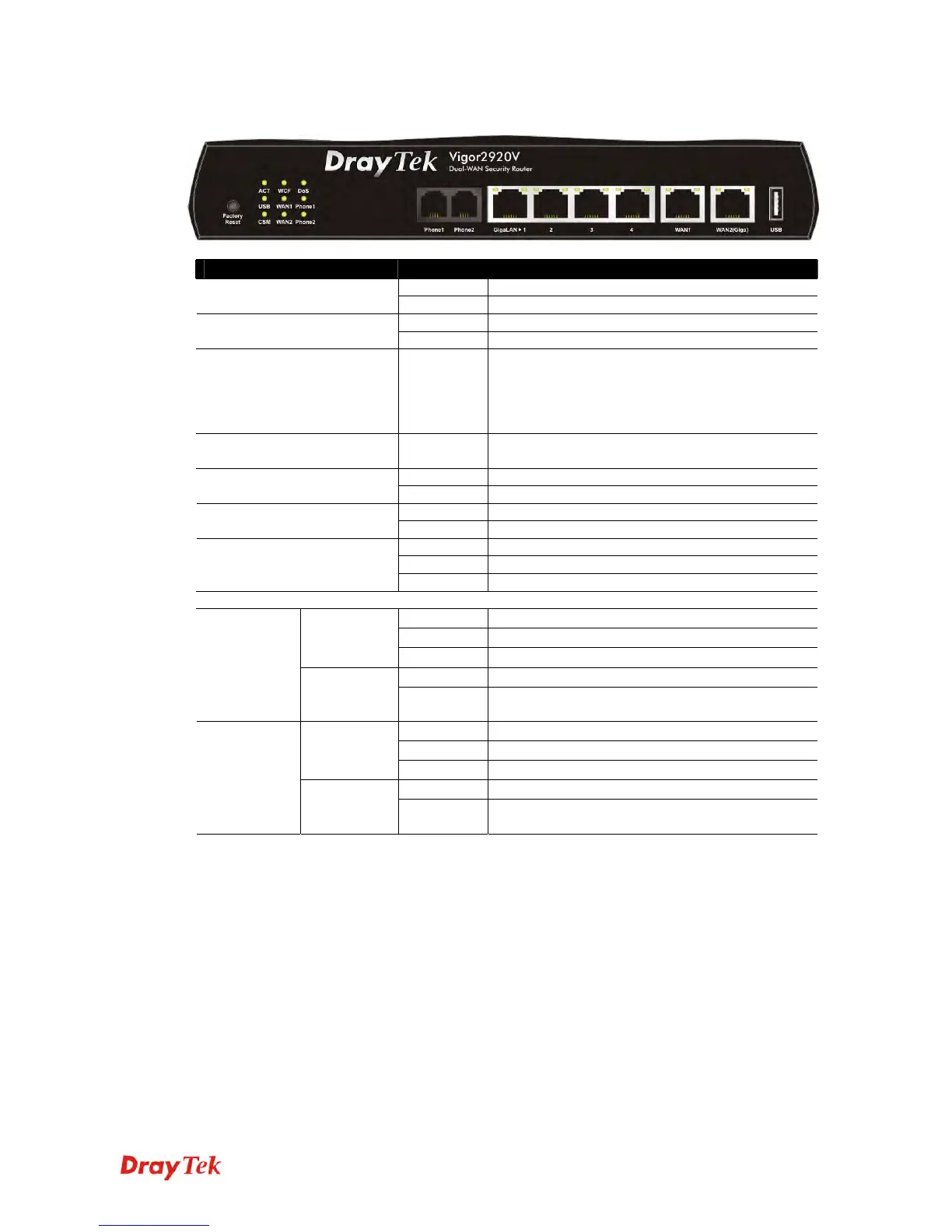

Interface Description
Wireless LAN
ON/OFF/WPS
Press "Wireless LAN ON/OFF/WPS" button once to wait for client device
making network connection through WPS.
Press "Wireless LAN ON/OFF/WPS" button twice to enable (WLAN LED on)
or disable (WLAN LED off) wireless connection.
Factory Reset Restore the default settings. Usage: Turn on the router (ACT LED is blinking).
Press the hole and keep for more than 5 seconds. When you see the ACT LED
begins to blink rapidly than usual, release the button. Then the router will
restart with the factory default configuration.
Phone 1/2 Connecter for analog phone(s).
Line Connector for PSTN life line.
GigaLAN (1-4) Connecters for local networked devices.
WAN1/WAN2(Giga) Connecters for remote networked devices.
USB Connecter for Mobile HDD, 3G Modem or printer.
PWR
Connecter for a power adapter.
ON/OFF
Power Switch.
