VigorAP 710 User’s Guide
33

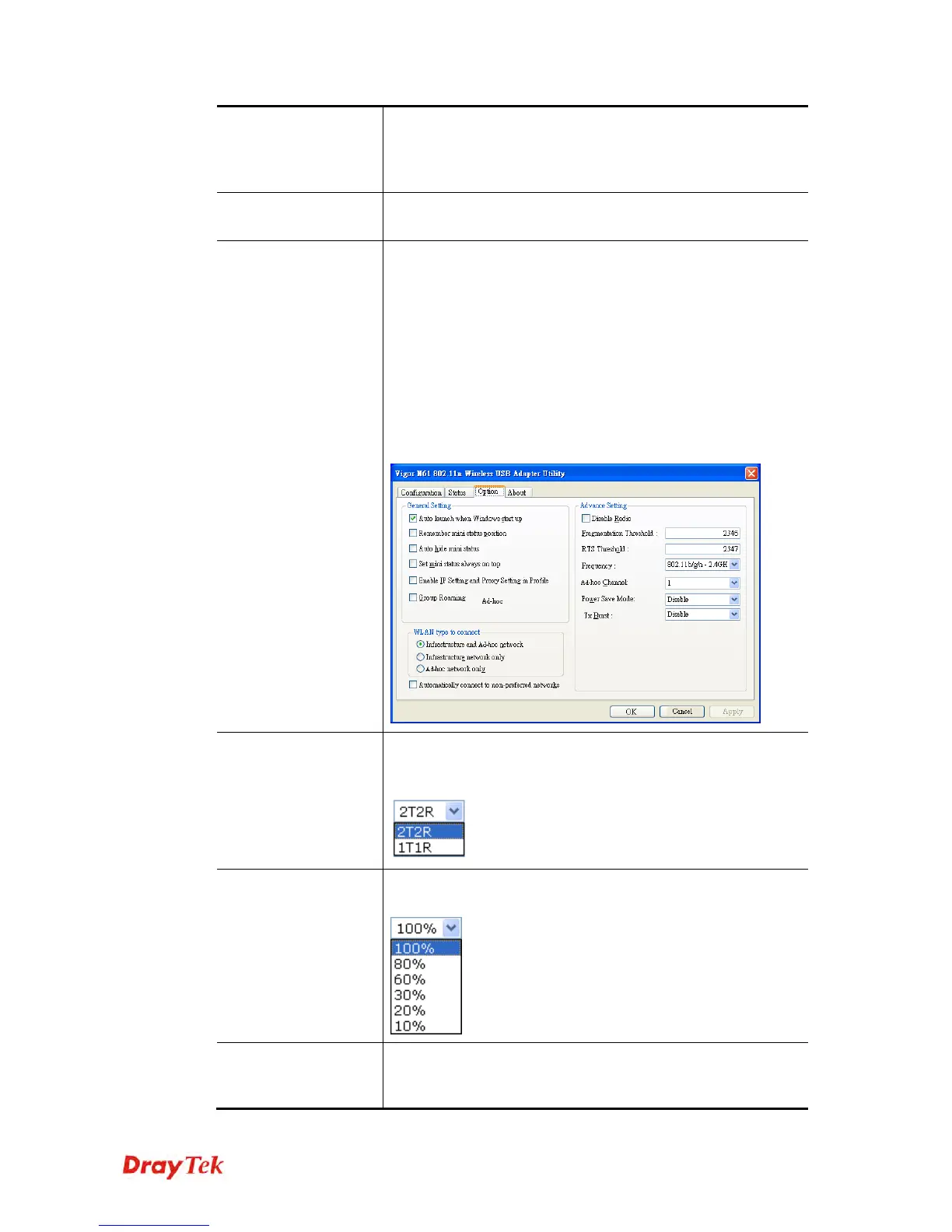

Extension Channel
With 802.11n, there is one option to double the bandwidth per
channel. The available extension channel options will be varied
according to the Channel selected above. Configure the
extension channel you want.
Rate
If you choose 11g Only, 11b Only or 11n Only, such feature
will be available for you to set data transmission rate.
Packet-OVERDRIVE
This feature can enhance the performance in data transmission
about 40%* more (by checking Tx Burst). It is active only
when both sides of Access Point and Station (in wireless
client) invoke this function at the same time. That is, the
wireless client must support this feature and invoke the
function, too.
Note: Vigor N61 wireless adapter supports this function.
Therefore, you can use and install it into your PC for matching
with Packet-OVERDRIVE (refer to the following picture of
Vigor N61 wireless utility window, choose Enable for
TxBURST on the tab of Option).
Antenna
VigorAP 710 can be attached with two antennas to have good
data transmission via wireless connection. However, if you
have only one antenna attached, please choose 1T1R.
Tx Power
The default setting is the maximum (100%). Lower down the
value may degrade range and throughput of wireless.
Channel Width
20 MHZ- the router will use 20Mhz for data transmission and
receiving between the AP and the stations.
40 MHZ- the router will use 40Mhz for data transmission and
