When you choose AP Bridge-Point to Point or Point-to Multi-Point Mode as the operation
mode, the Wireless LAN menu items will include General Setup, AP Discovery and WDS
AP Status.
AP Bridge-Point to Point allows VigorAP 710 to connect to another VigorAP 710 which
uses the same mode. All wired Ethernet clients of both VigorAP 710s will be connected
together.
Point-to Multi-Point Mode allows VigorAP 710 to connect up to four VigorAP 710s which
uses the same mode. All wired Ethernet clients of every VigorAP 710 will be connected
together.
3
3
.
.
5
5
.
.
1
1
G
G
e
e
n
n
e
e
r
r
a
a
l
l
S
S
e
e
t
t
u
u
p
p

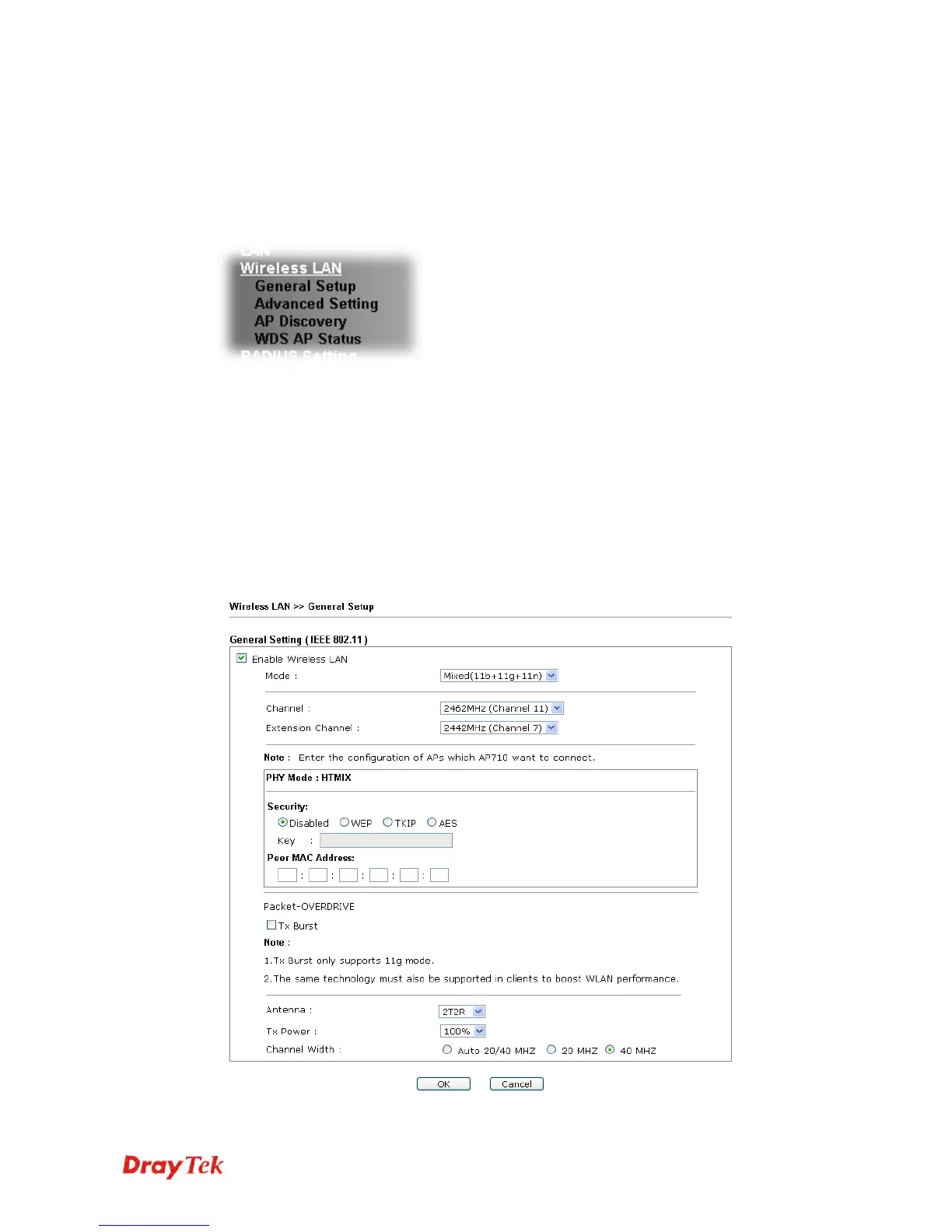

By clicking the General Setup, a new web page will appear so that you could configure the
Phy mode, security, Tx Burst and choose proper mode. Please refer to the following figure
for more information.
