DRESSTA TD-25M EXTRA - Disassembly

COOLING SYSTEM SECTION 6
Page 11
DRESSTA TD-25M EXTRA
6. DISASSEMBLY (Refer to Fig. 6.9)
NOTE: If any problem occurs with the particular element (core) of the radiator assy, it is possible to
remove a single core required repairing without disassembly of all elements.
Charge air cooler removing

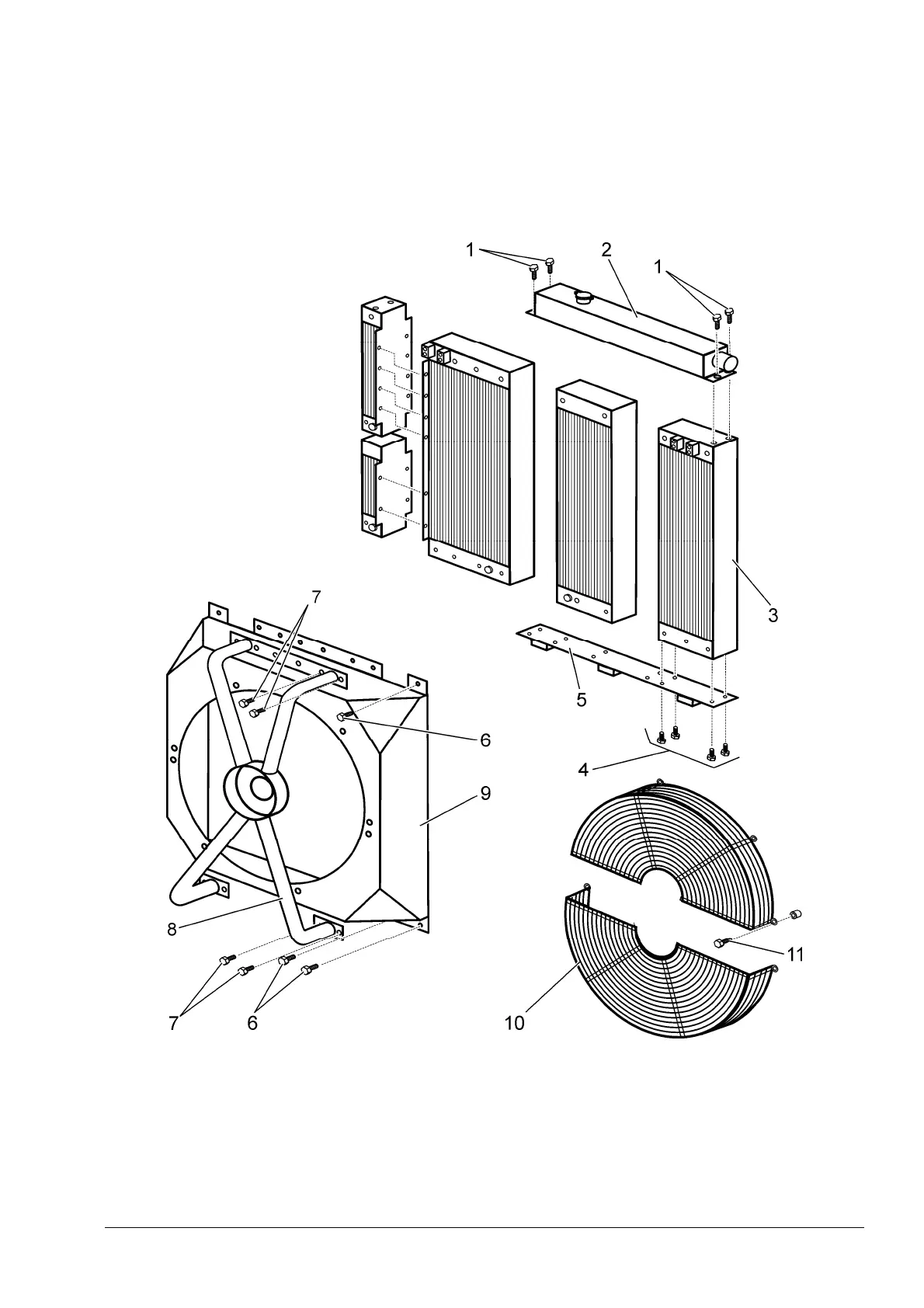

Fig. 6.9. Radiators Assy Exploded View
1. Bolts
2. Auxiliary Tank
3. Charge Air Cooler (core)
4. Bolts
5. Bottom Plate
6. Bolts
7. Bolts
8. Fan Drive Hydraulic Motor
Bracket
9. Fan Shroud
10. Fan Guard
11. Bolt
