SECTION 15 TRACKS OR WHEELS
Page 14
TD-25M EXTRA DRESSTA
TRACK CHAIN
DRY SEALED TRACK SYSTEM
Disassembly
1. Position chain on press so that bushing end (non-threaded end) of split link is toward rams.
Remove track shoes. Install disassembly adapters on ram heads. Advance chain and lower
table so split link drops into saddle. Press pin out of right link then press pin out of left link.
Remove loose split links from press. Advance track chain so next link drops into saddle. Press
pin and bushing out of right link, then press pin and bushing out of left link. Remove loose links,
bushing and pin from press. Repeat this step with remaining sections of chain. Remove spring
seal washers from chain links.

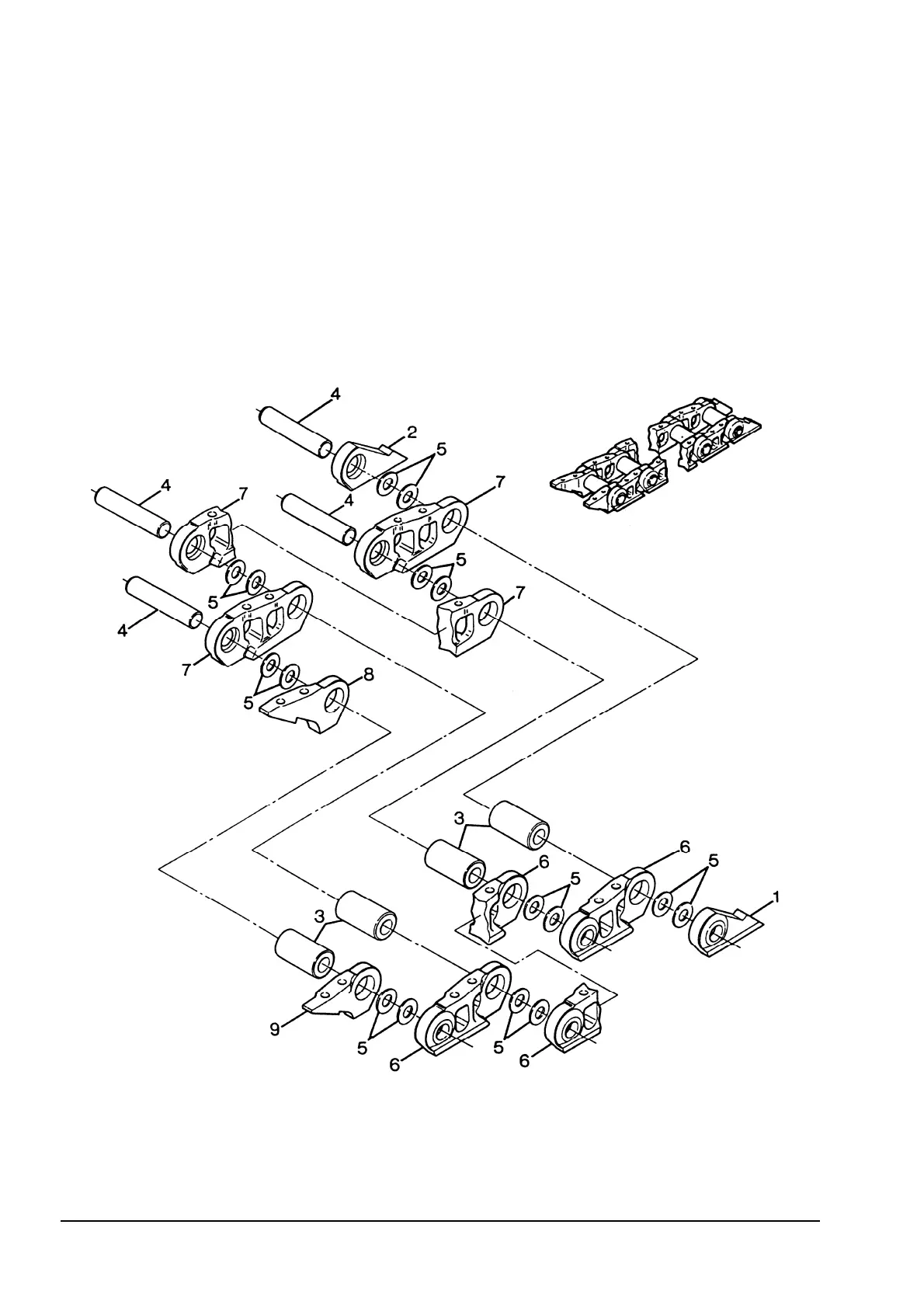

Fig. 15.17. Exploded View of Dry Sealed Track System
1. Master Split Link - Pin R.H. Down
2. Master Split Link - Pin L.H. Down
3. Track Link Bushing
4. Track Link Pin
5. Spring Seal Washer
6. Right Track Link
7. Left Track Link
8. Master-Split Link - Bushing L.H. Upper
9. Master-Split Link - Bushing R.H. Upper
