DEHUMIDIFIER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL

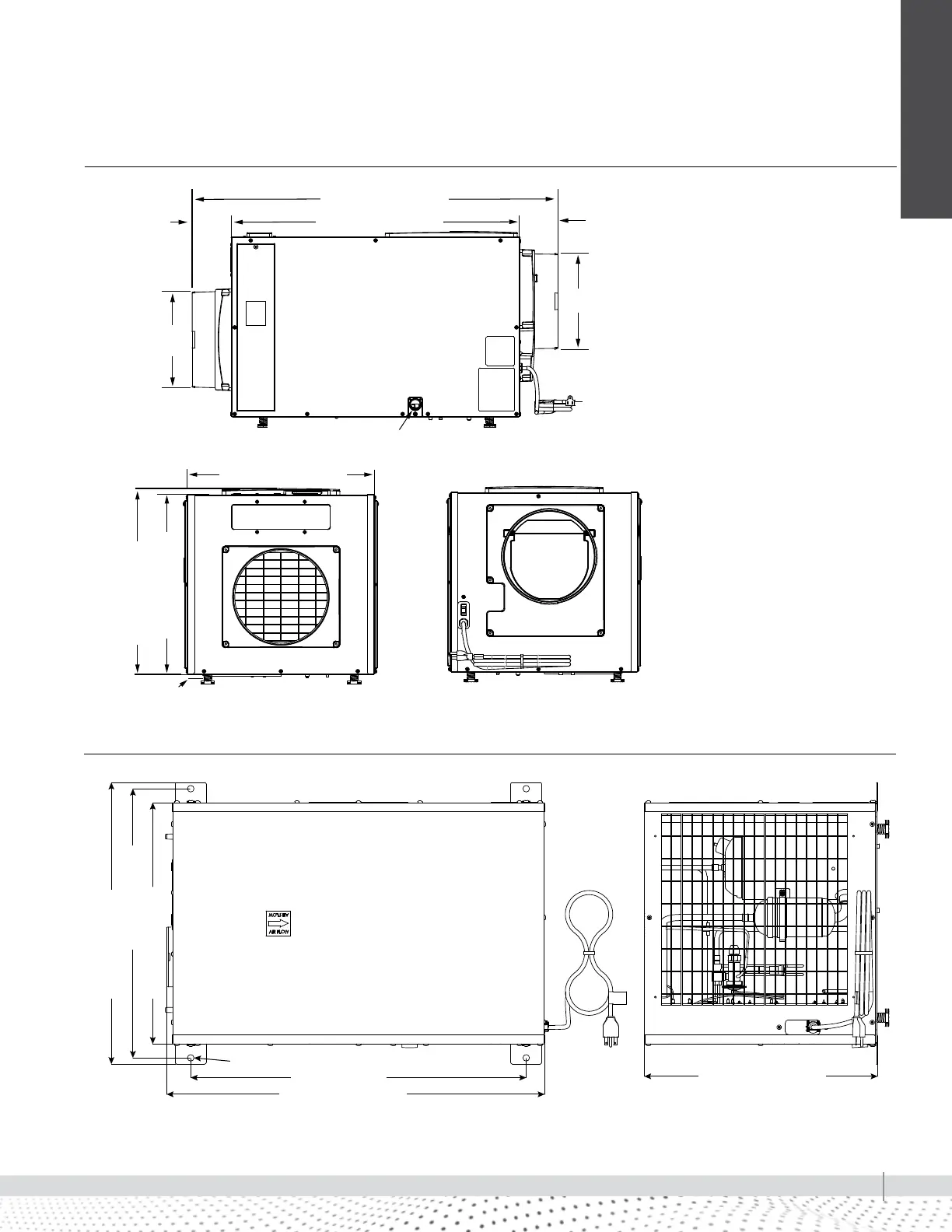

FIGURE 13-2: MODEL RL-9 DEHUMIDIFIER DIMENSIONS
Dimensions
FIGURE 13-1: MODEL RL-6 DEHUMIDIFIER DIMENSIONS
90-2394
90-2053
Up to 1/2" (13 mm) diameter rod
18.85 (479 mm)
BACK
TOP
27.09 (688 mm)
30.53 (775 mm)
19.49 (495 mm)
21.73 (552 mm)
22.73 (577 mm)
BACK
TOP
38.06 (967 mm)
30.06 (763 mm)
3.94 (100 mm)
ø10 (254 mm)
ø0.75 (20 mm)
pipe inside
19.5 (495 mm)
4.06
(103 mm)
ø10
(254 mm)
18.75 (476 mm)
19.38 (492 mm)
1.38 to 2
(35 to 50 mm)
SPECIFICATIONS
