DEHUMIDIFIER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
INSTALLATION
INLET ADAPTER PLATE
INLET HOUSING
FILTER DOOR
OUTLET HOUSING
OUTLET ADAPTER PLATE
90-2575
CAUTION
Sharp edges may cause serious injury from cuts. Use care
when cutting plenum openings and handling duct work.
NOTICE
• Failure to follow ducting guidelines may negatively
impact unit performance.
• Minimize equivalent duct length to maximize unit
capacity and efficiency.
AIRFLOW DELIVERY SPECIFICATIONS
• Nominal airflow through dehumidifier is 830 cfm
(1410 m
3
/h).
• Airflow decreases as duct length and bends increase,
therefore if the equivalent duct length is too long the
dehumidifier will cease to function properly.

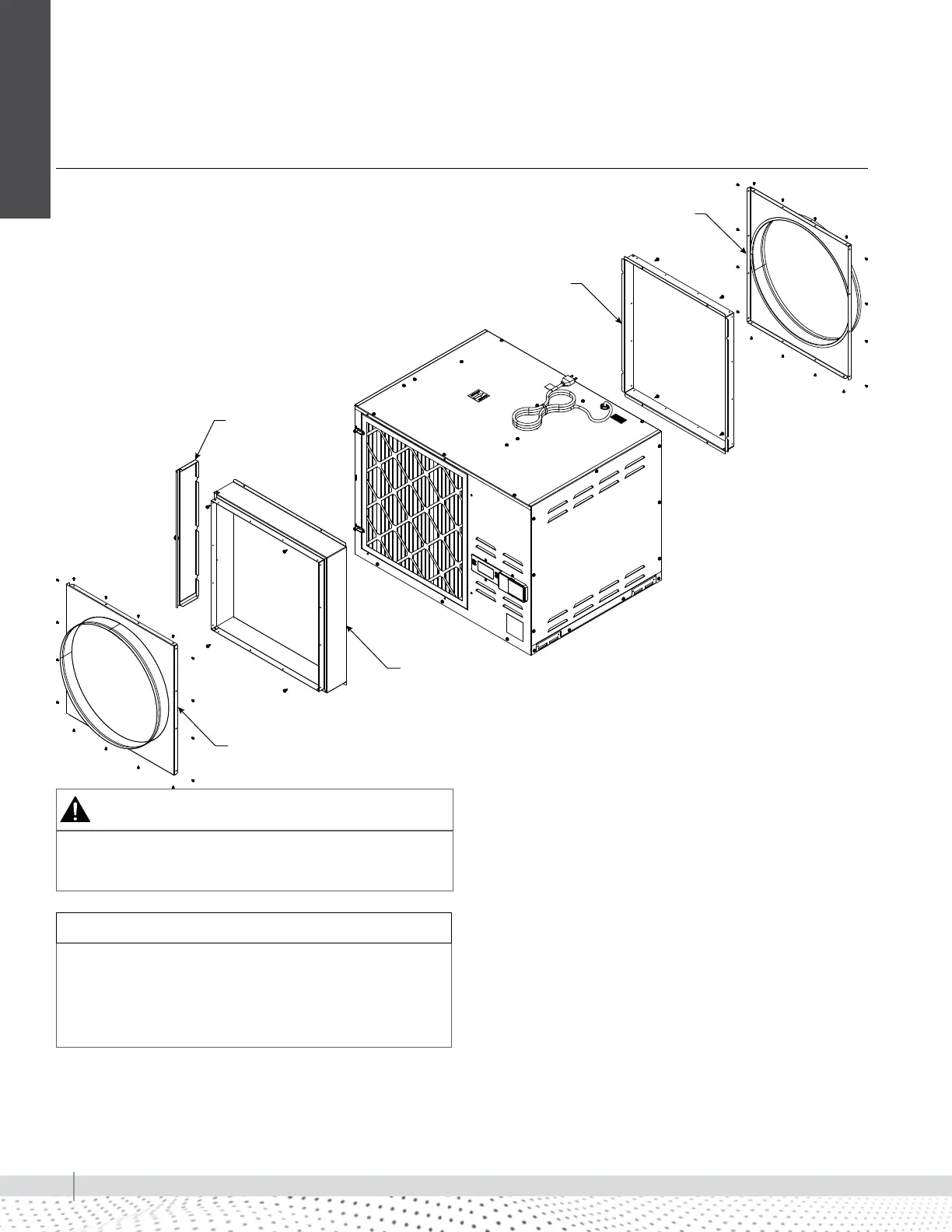

FIGURE 32-1: DUCT ASSEMBLY
Model RL-14 duct installation
