DriSteem RL-3 - RL-3, RL-4, and RL-6 Trapeze Mount

20
DEHUMIDIFIER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL

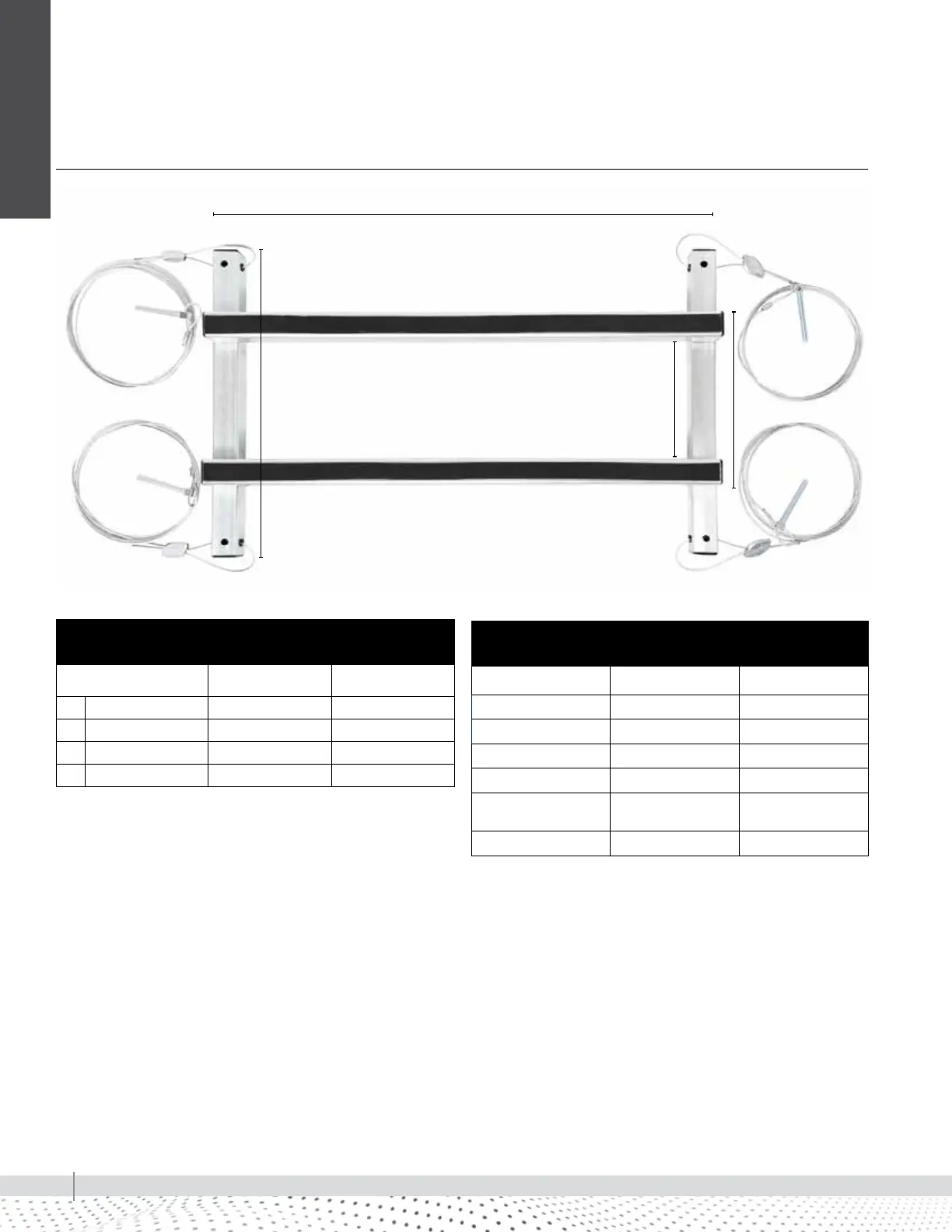

FIGURE 20-1: RL-3, RL-4 AND RL-6 TRAPEZE MOUNT
RL-3, RL-4, and RL-6 trapeze mount
A
D
C
B
Table 20-1:
Trapeze mount dimensions
601299 601300
A Width 18" (457 mm) 27" (686 mm)
B Inside Rail Width 5.75" (146 mm) 10.5" (267 mm)
C Outside Rail Width 8.75" (222 mm) 13.5" (343 mm)
D Length 29.88" (759 mm) 38" (965 mm)
Table 20-2:
Trapeze mount specifications
601299 601300
Width 18" (457 mm) 27" (686 mm)
Height 3" (76 mm) 3" (76 mm)
Length 29.88" (759 mm) 38" (965 mm)
Weight 13 lbs. (5.9 kg) 18 lbs. (8.2 kg)
Operating weight
(working load)
400 lbs. (181 kg) 400 lbs. (181 kg)
Shipping weight 14.6 lbs. (6.6 kg) 19.7 lbs. (8.9 kg)
INSTALLATION
