DEHUMIDIFIER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
INSTALLATION
90-2577
90-2646
90-2647
DUCT KIT INSTALLATION
1. Install the round adapter plates onto the inlet and
outlet using the #6 (smaller) screws provided. See
Figure 33-1.
2. Attach the assembled components to the dehumidifier
using the #10 (larger) screws provided. The filter
clips must be removed from the inlet side of the
dehumidifier, the duct kit will attach using those holes.
See Figure 33-2.
3. Install the filter access door and secure with the two
thumb screws. See Figure 36-3.

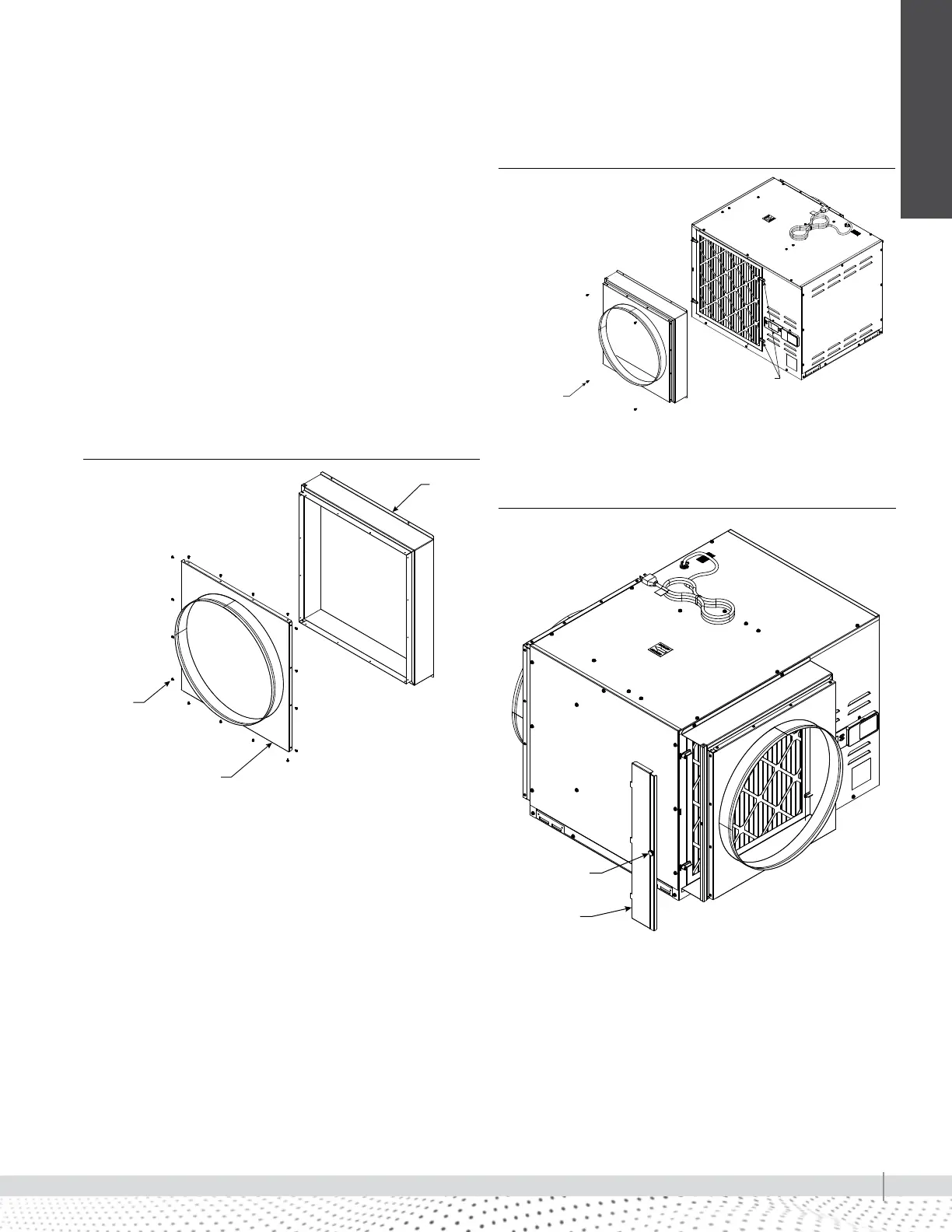

FIGURE 33-1: ALIGN TABS
FIGURE 33-2: ATTACH ASSEMBLED DUCT HOUSING
FIGURE 33-3: INSTALL
Model RL-14 duct installation
Adapter plate
Housing
#6
screws
Thumb screw
Filter door
#10 screws
Remove and
discard
