14
DEHUMIDIFIER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
90-2529

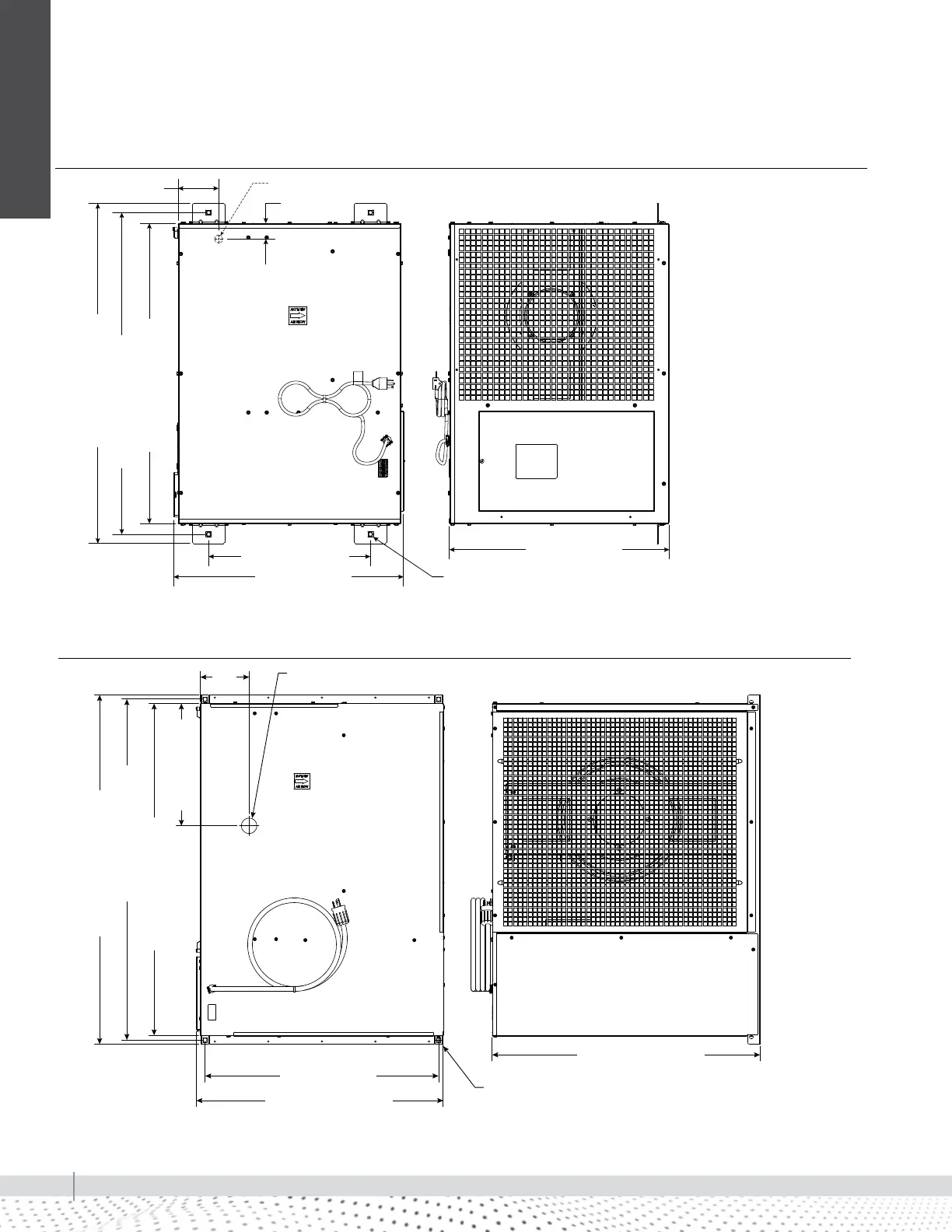

FIGURE 14-2: MODEL RL-31 DEHUMIDIFIER DIMENSIONS
Dimensions
34-13/32 (874 mm)
BACK
TOP
Up to 1/2" (13 mm) diameter rod
30 (762 mm)
31-23/32 (804 mm)
42-11/16 (1084 mm)
43-25/32 (1112 mm)
44-7/8 (1140 mm)
15-23/32
(399 mm)
ø 3/4" (DN20) FNPT drain
6-1/4 (159 mm)
FIGURE 14-1: MODEL RL-14 DEHUMIDIFIER DIMENSIONS
BACK
TOP
37" (940 mm)
90-2433
24" (610 mm)
17-5/8" (448 mm)
25" (635 mm)
35" (889 mm)
32-11/16" (830 mm)
1-11/16"
(43 mm)
ø3/4" (19 mm) FNPT drain
4-7/16" (113 mm)
Up to 1/2" (13 mm) diameter rod
SPECIFICATIONS
