DEHUMIDIFIER INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
INSTALLATION
90-2580
REPLACING THE FILTER
1. Loosen the two thumb screws and remove the filter access door.
2. Pull the filter away from the unit, then out through the access opening.
3. Install the new filter in the same direction.
4. Reinstall the filter access door and tighten the thumb screws.

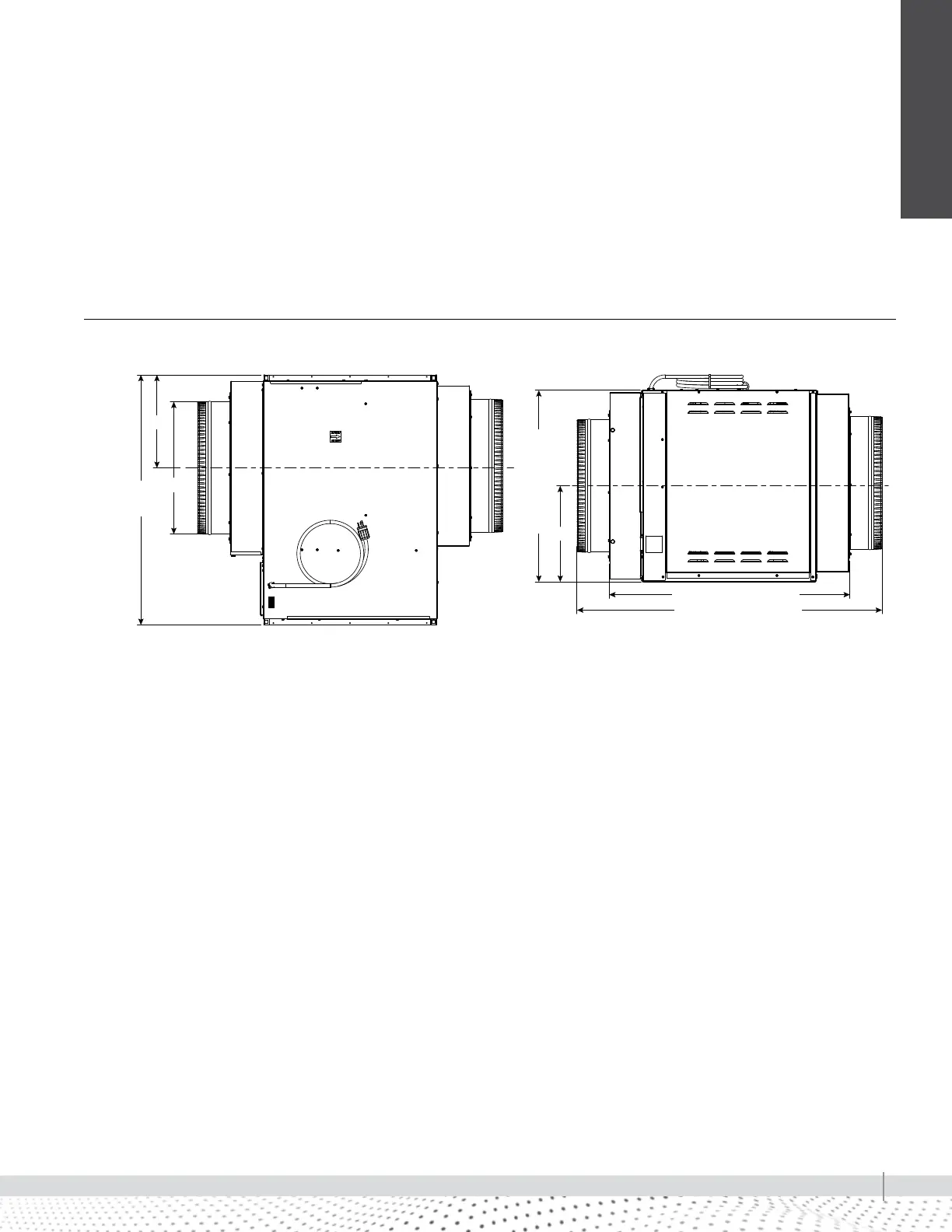

FIGURE 37-1: MODEL RL-31 OVERALL DIMENSIONS WITH DUCT KIT (INCHES)
Model RL-31 duct installation
54.70 (1389 mm)
SIDE
TOP
43.20 (1097 mm)
34.36 (873 mm)
17.22
(437 mm)
16.69
(424 mm)
ø23.75
(603 mm)
44.86
(1139 mm)
