data is converted into RS-170 analog video. The RS-170 video is not colorized. The output of
the symbology block also feeds into the digital video selection.
The Digital Video Selection allows the user to select either 14-bit (pre AGC) or 8-bit (post AGC)
digital data. This is an important note because the two video streams look very different from
each other. The output of the Digital Video Selection block feeds into the Colorization block
If the Colorization block is off, the digital video data passes through and is unchanged; 14-bit and
8-bit data is output from the colorization block. If the Colorization block is enabled, the incoming
digital video data is mapped to 24-bit RGB data. The user has the ability to select the color pallet.

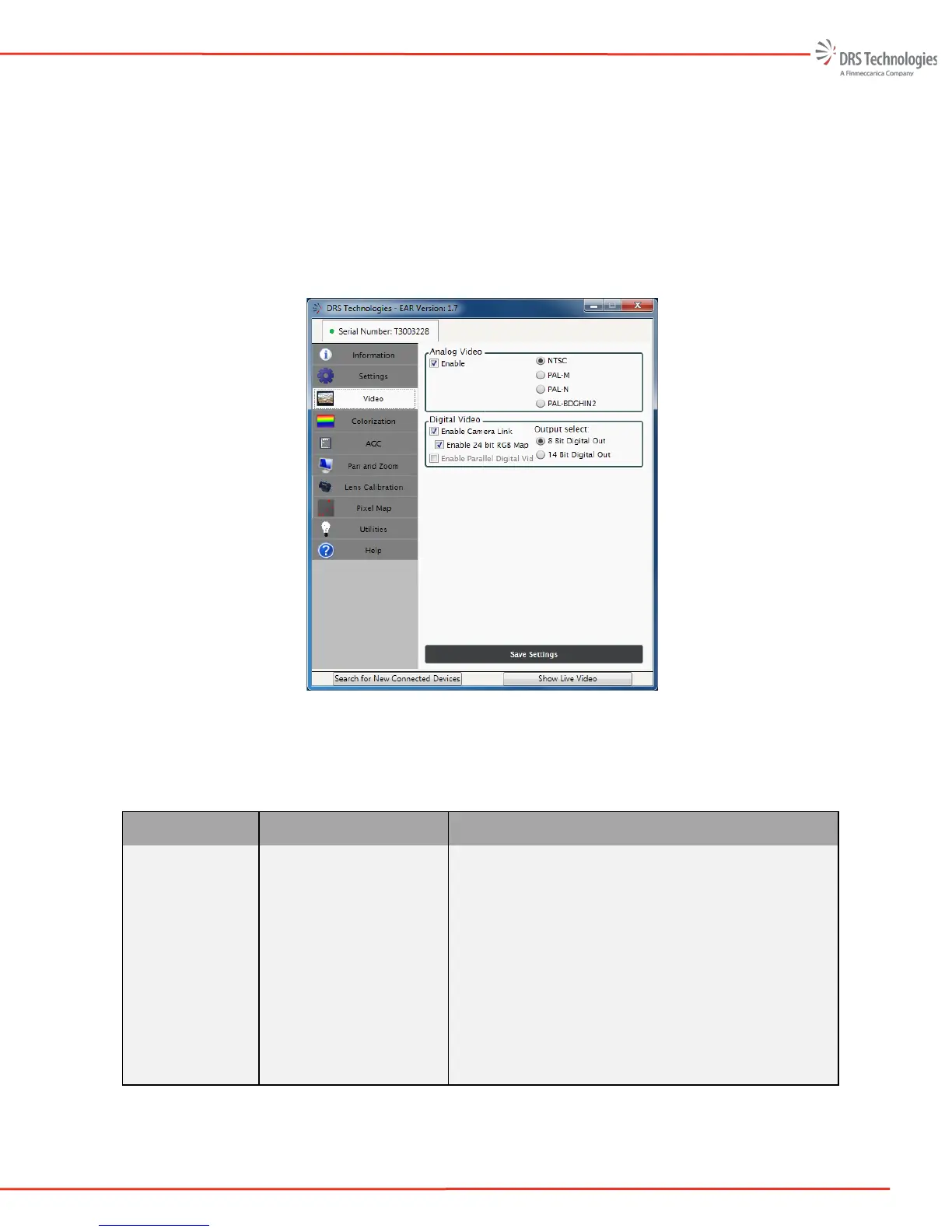

Figure 29. Video Tab
Table 4 provides an overview of the features and functions that are available on the Video tab.
Table 4 – Video Overview
Item Description Function
Digital Video
Output Select
Enable Camera Link
Enable Parallel Digital
Video
Parallel Digital Video
Enables/disables the Camera Link Output
Enables/disables Digital Video Output
Enables/disables the parallel digital video output
(Note: Parallel digital video cannot be enabled while
analog video is enabled)
Changes are automatically saved to the camera’s
non-volatile memory
