PowerSeries Neo Installation Guide
Regulatory Approvals
FCC COMPLIANCE STATEMENT
CAUTION: Changes or modifications not expressly approved by Digital Security
Controls could void your authority to use this equipment.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in
a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be deter-mined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
l Re-orient the receiving antenna.
l Increase the separation between the equipment and receiver.
l Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
l Consult the dealer or an experienced radio/television technician for help.
The user may find the following booklet prepared by the FCC useful: "How to Identify
and Resolve Radio/Television Interference Problems". This booklet is available from the
U.S. Government Printing Office, Washington D.C. 20402, Stock # 004-000-00345-4.
IMPORTANT INFORMATION
This equipment complies with Part 68 of the FCC Rules. On the side of this equipment
is a label that contains, among other information, the FCC registration number and ringer
equivalence number (REN) for this equipment. If requested, this number must be
provided to the Telephone Company.
HS2128 Product Identifier US: F53AL01BHS2128
REN: 0.1B; USOC Jack: RJ-31X
Telephone Connection Requirements
A plug and jack used to connect this equipment to the premises wiring and telephone
network must comply with the applicable FCC Part 68 rules and requirements adopted
by the ACTA. A compliant telephone cord and modular plug is provided with this
product. It is designed to be connected to a compatible modular jack that is also
compliant. See installation instructions for details.
Ringer Equivalence Number (REN)
The REN is used to determine the number of devices that may be connected to a
telephone line. Excessive RENs on a telephone line may result in the devices not
ringing in response to an incoming call. In most but not all areas, the sum of RENs
should not exceed five (5.0). To be certain of the number of devices that may be
connected to a line, as determined by the total RENs, contact the local Telephone
Company. For products approved after July 23, 2001, the REN for this product is part of
the product identifier that has the format.
US: AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal
point (e.g., 03 is a REN of 0.3). For earlier products, the REN is separately shown on the
label.
Incidence of Harm
If this equipment HS2016/HS2032/HS2064/HS2128 causes harm to the telephone
network, the telephone company will notify you in advance that temporary
discontinuance of service may be required. But if advance notice is not practical, the
Telephone Company will notify the customer as soon as possible. Also, you will be
advised of your right to file a complaint with the FCC if you believe it is necessary.
Changes in Telephone Company Equipment or Facilities
The Telephone Company may make changes in its facilities, equipment, operations or
procedures that could affect the operation of the equipment. If this happens the
Telephone Company will provide advance notice in order for you to make necessary
modifications to maintain uninterrupted service.
Equipment Maintenance Facility
If trouble is experienced with this equipment HS2016/HS2032/HS2064/HS2128 for
repair or warranty information, please contact the facility indicated below. If the
equipment is causing harm to the telephone network, the Telephone Company may
request that you disconnect the equipment until the problem is solved. This equipment
is of a type that is not intended to be repaired by the end user. Tyco Atlanta
Distribution Center 2600 West Pointe Dr. Lithia Springs, GA 30122
Additional Information
Connection to party line service is subject to state tariffs. Contact the state public utility
commission, public service commission or corporation commission for information.
Alarm dialling equipment must be able to seize the telephone line and place a call in an
emergency situation, even if other equipment (telephone, answering system, computer
modem, etc.) already has the telephone line in use. To do so, alarm dialling equipment
must be connected to a properly installed RJ-31X jack that is electrically in series with
and ahead of all other equipment attached to the same telephone line. Proper installation

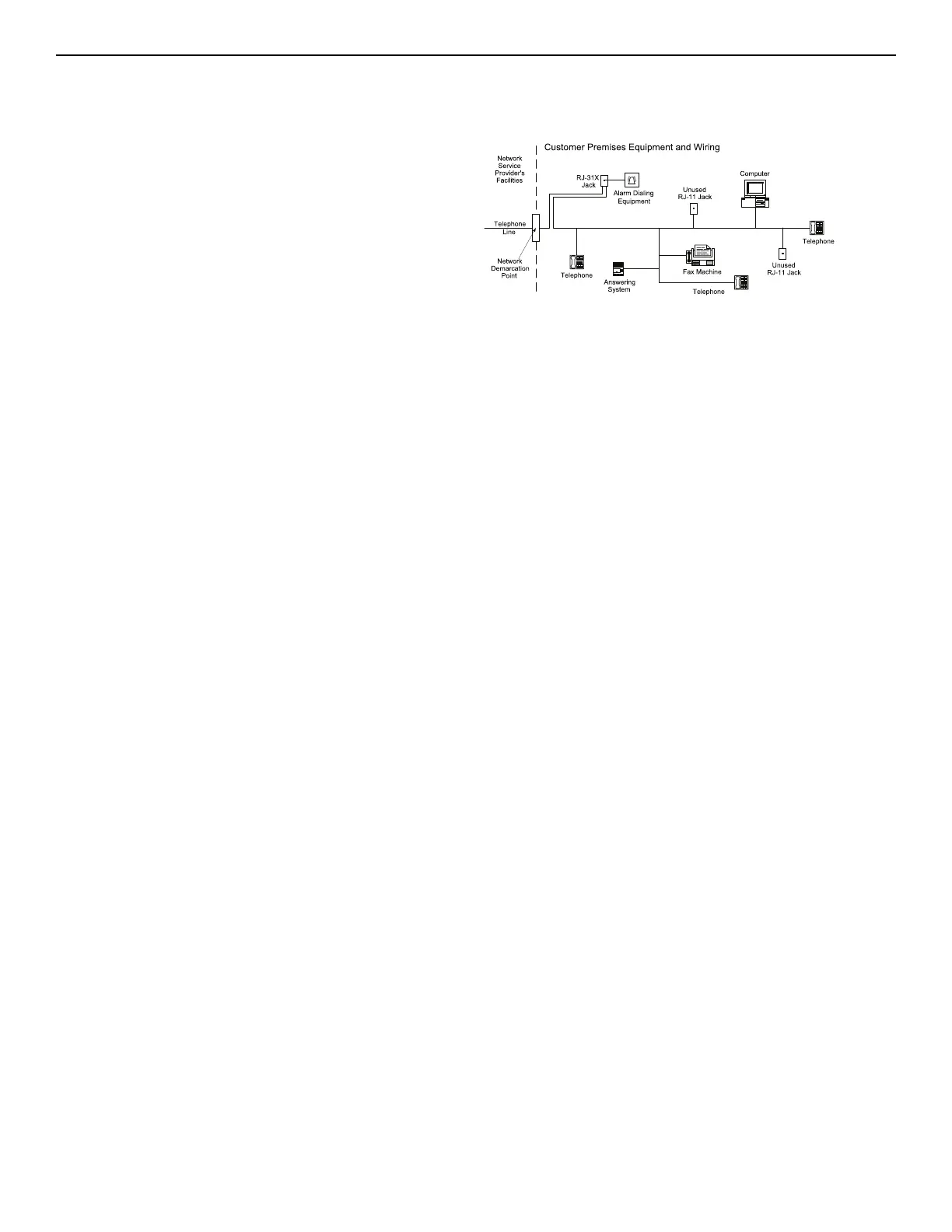

is depicted in the figure below. Consult your telephone company or a qualified installer
if you have any questions concerning these instructions or about installing the RJ-31X
jack and alarm dialling equipment for you.
ISED STATEMENT
NOTICE: This Equipment, HS2016/HS2032/HS2064/HS2128, meets the applicable
ISED Terminal Equipment Technical Specifications. This is confirmed by the
registration number. The abbreviation, IC, before the registration number signifies that
registration was performed based on a Declaration of Conformity indicating that ISED
technical specifications were met. It does not imply that ISED approved the equipment.
NOTICE: The Ringer Equivalence Number (REN) for this terminal equipment is 0.1.
The REN assigned to each terminal equipment provides an indication of the maximum
number of terminals allowed to be connected to a telephone interface. The termination
on an interface may consist of any combination of devices subject only to the
requirement that the sum of the Ringer Equivalence Numbers of all devices does not
exceed five.
Certification Number:IC: 160A-HS2128; This Class B digital apparatus complies with
Canadian ICES-003.
UL/ULC Installations
This product (HS2016/HS2032/HS2064/HS2128) has been tested and found in
compliance with the following standards:
l UL1610 Central-Station Burglar-Alarm Units
l UL365 Police Station Connected Burglar Alarm Units and Systems
l UL1023 Household Burglar-Alarm System Units
l UL985 Household Fire Warning System Units
l UL1635 Digital Alarm Communicator System Units
l UL1637 Home Health Care Signaling Equipment
l ULC-S304-16 Rev1 Signal Receiving Centre & Premise Burglar Alarm Con-
trol Units
l ULC-S559-13 Equipment for Fire Signal Receiving Centers and Systems
l ULC-S545-02 Residential Fire Warning System Control Units
l ORD-C1023-1974 Household Burglar-Alarm System Units
This product has also been tested and found in compliance with the ANSI/SIA
CP-01-2010 Control Panel Standard – Features for False Alarm Reduction. This
product is UL/ULC listed under the following categories:
l AMCX/AMCXC Central Stations Alarm Units
l APAW Police-station-connected Alarm Units
l DAYRC Central Station Fire Alarm System Units
l UTOU/UTOUC Control Units and Accessories, Household System Type
l NBSX/NBSXC Household Burglar Alarm System Units
l AMTB Control Panels, SIA False Alarm Reduction
The product is labeled with the UL and ULC listing marks along with the SIA
CP-01 compliance statement (Also Classified in accordance with SIA-CP-01
Standard) as proof of compliance with the above mentioned standards. For
further information on this product’s listings please also refer to the official
listing guides published at the UL web site (www.ul.com) under Online
Directions Section.
UL/ULC Residential Fire and Burglary Installations:
For ULC Installations refer to the Standard for the Installation of Residential
Fire Warning Systems, CAN/ULC-S540.
l All burglary-type zones shall be configured with SEOL or DEOL con-
figuration. Use model EOLR-2 (refer to section [002], bit 10 or 11 shall be
ON)
l Use at least one PG9936/PG9926/PG9916 Smoke Detector for Fire Install-
ations (section [001], fire zone shall be programmed as type 025)
l The entry delay shall not exceed 45 seconds (see section [005])
l The exit delay shall not exceed 60 seconds (refer to section [005])
l The minimum Bell Time-out is 4 minutes (refer to section [005])
Note: For UL Commercial Burglary installations, minimum bell time-out is 15
min.
