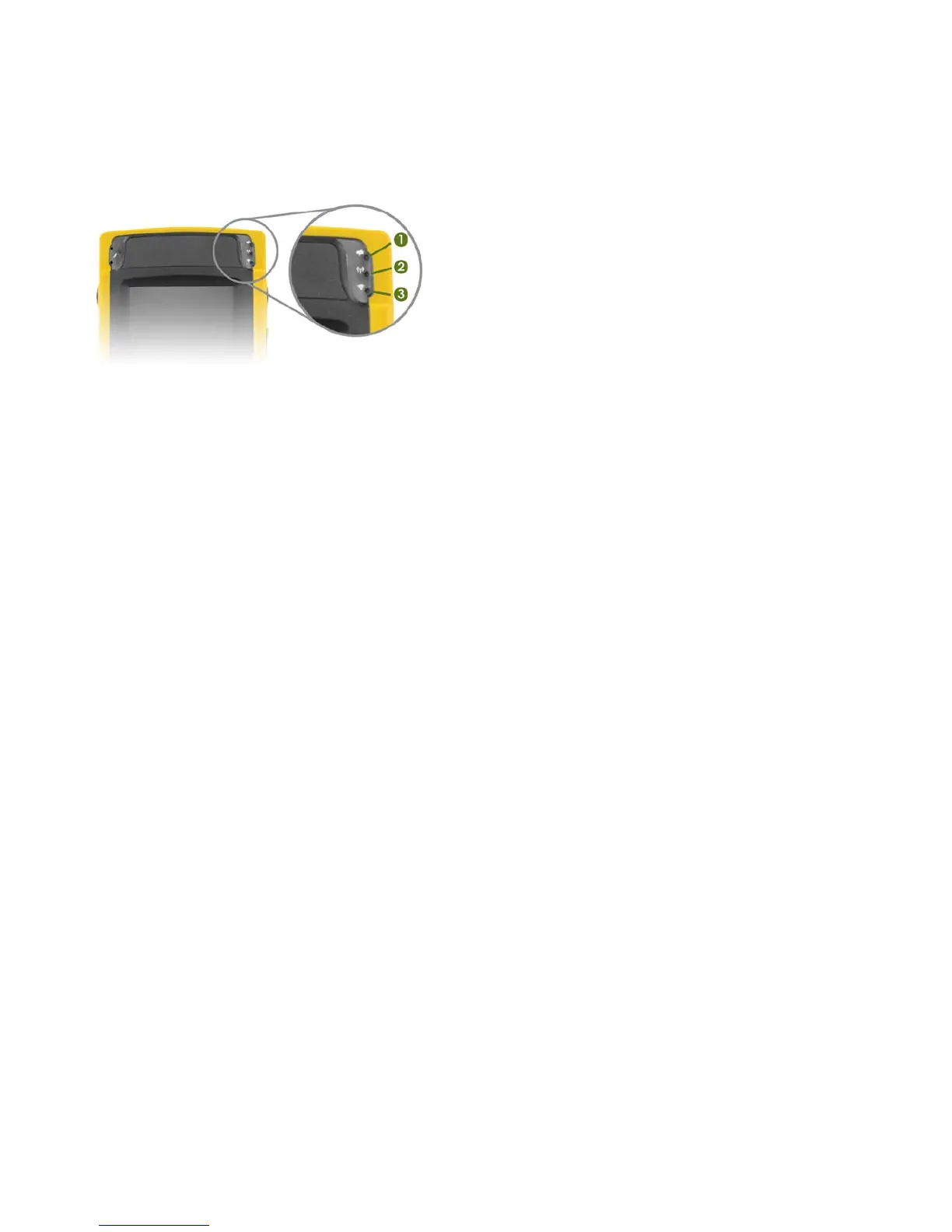

WebDT 435 Status LED Indicators
Power Mode Status LED Indicator ():
i. Blue: Device is powered on
ii. Blinking Blue: Main battery charging
iii. Orange: Low battery mode
iv. Blinking Orange: Extremely low battery mode
v. Off: Device is powered off or in suspend mode
WiFi Status LED Indicator () :
i. Blue: The device has been connected to a wireless AP
ii. Blinking blue: The device is connecting to a wireless AP.
iii. Off: WiFi is disabled
Magnetic Stripe Reader LED Indicator ():
i. Power On – Powering on Sequence: blinks orange 2 times, then lights solid blue
ii. Ready – Solid blue
iii. Read Ok – Blinks blue 1 time
iv. Read Error – Orange and then turn to blue
