DT Research WebDT 435 User Manual

Rev Date 9/16/2010
39
Using the WebDT Keyboard Wedge
The WebDT Keyboard Wedge is the software program that interfaces with the device to translate data read by
the data capture module–such as a magnetic strip card reader, a barcode scanner or a RFID reader–into
keystroke data.
Enabling Keyboard Wedge

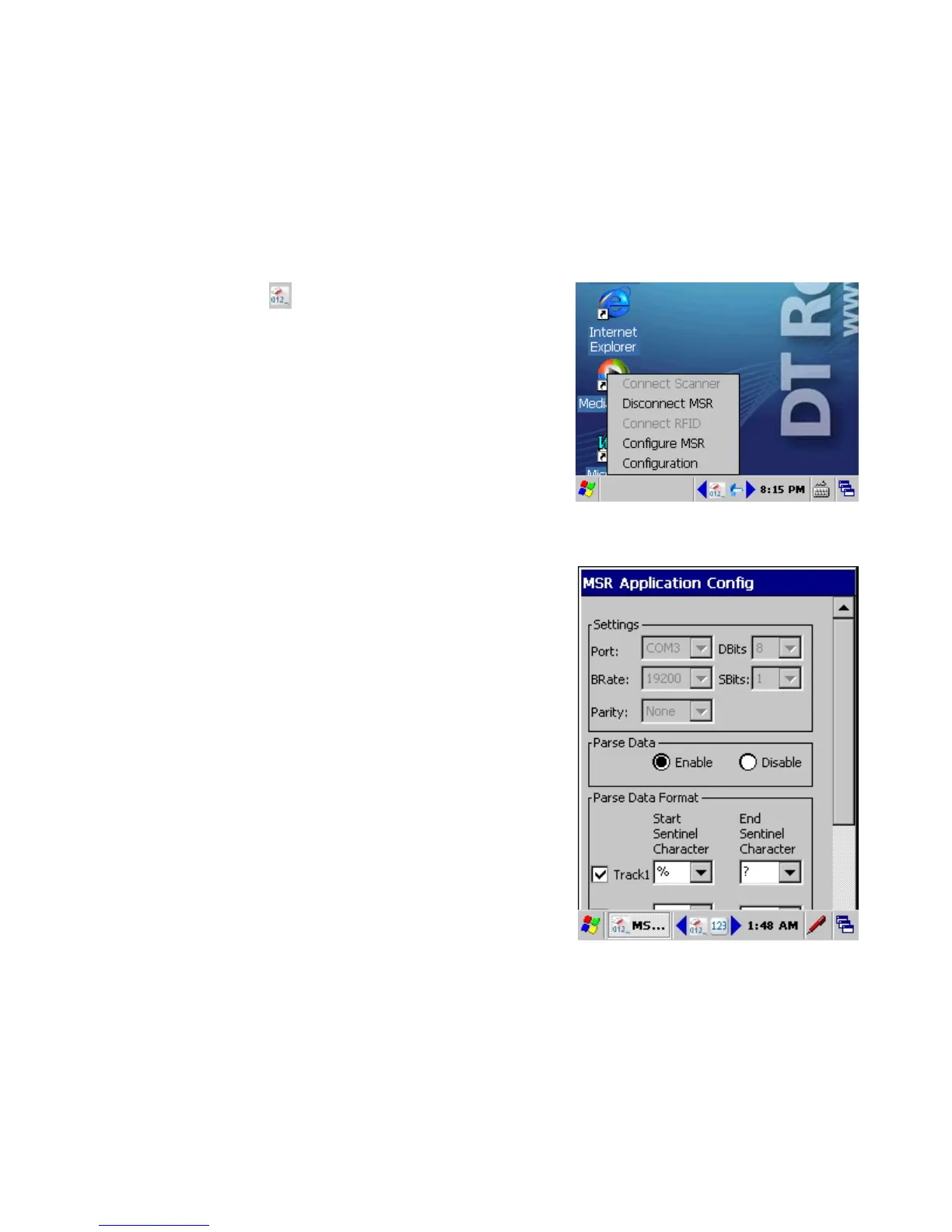

If you tap on the icon, a menu is displayed, as shown in
the picture at right. You can choose to connect a Scanner,
MSR or RFID. The input data from the selected data capture
module will be passed to the active application as keystrokes.
Configuring MSR Application Config
For a Magnetic Stripe Card, the raw data in each data track
may contain start and end sentinel characters. To remove
those characters, you can select the Configure MSR command
to parse input raw data and filter out the start and end sentinel
characters on each track.
1. Click
Configure MSR
in the menu, and a
MSR Application
Configuration
window will display.
2. Choose
Enable
in the
Parse Data
section
.
3. Choose data you want to parse at the start or end of each
track.
For Example:
Check
Track 1
In Start Sentinel Character, select
%
In End Sentinel Character, select?
See the picture at the right .
4. Click
OK
to complete the settings
