1.2.2 Functions

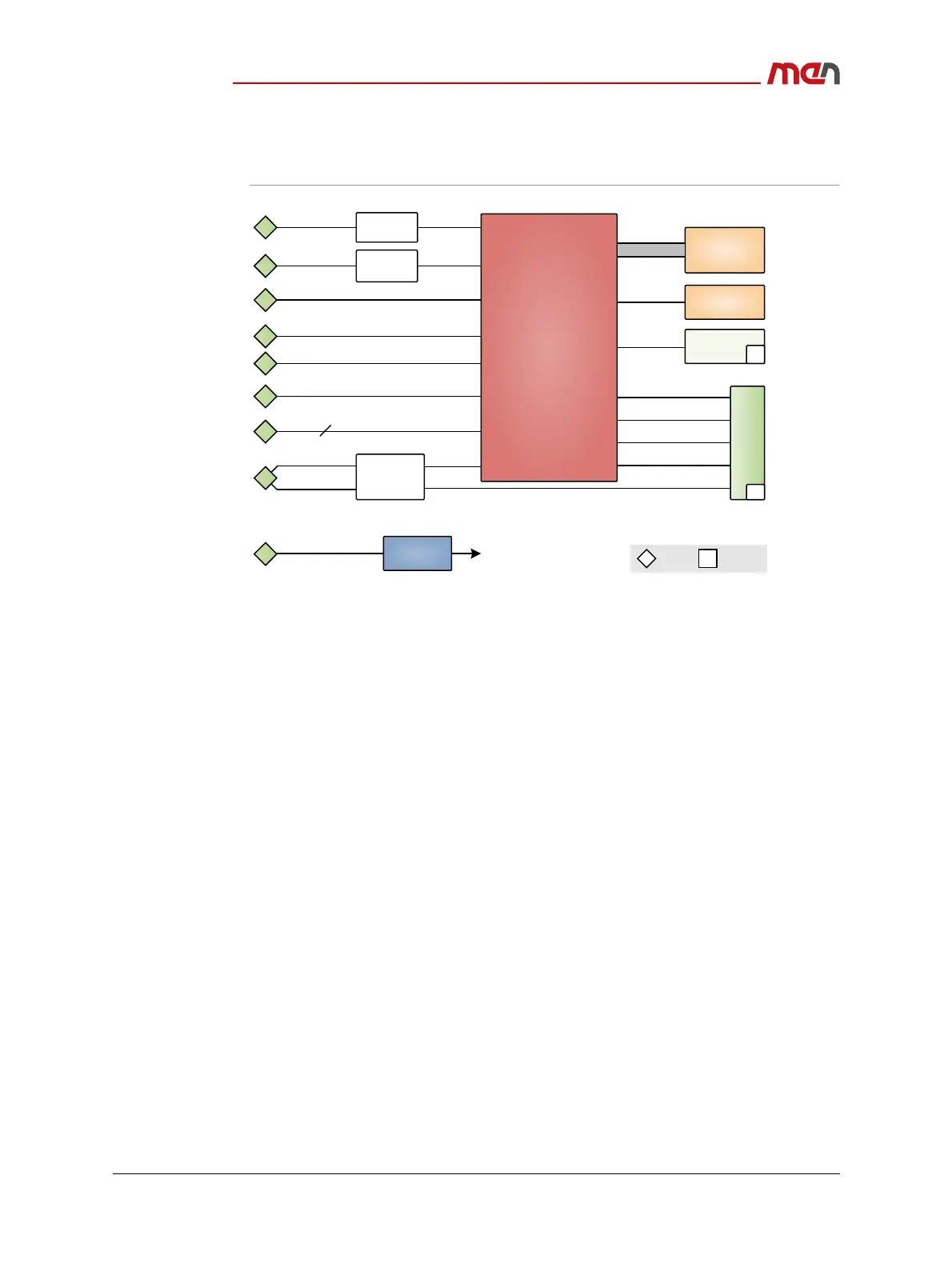

Figure 2. Functional diagram
DisplayPort 1.2a
F
Intel Atom
E3900 Series
M.2 NVMe
Slot
B
PCIe x1
F
PCIe x1
F
Gb Ethernet
F
F
F
USB 3.0
USB 3.0
RS232
F
Power In/Ignition
(24 V DC nom.)
F
10 LEDs
F
ETH
Controller
Gb Ethernet
Gb Ethernet
ECC DDR3
SDRAM
DC/DC
ETH
Controller
Onboard Voltages
RS422/RS485
PCIe x1
SATA (6 Gb)
SMB
SPI
SATA (6 Gb)
Extension
Connector
B
F Front B Onboard
UART/SPI
Controller
PCIe x1
eMMC
