duagon MC50M - Serial Interface Mapping (Linux); Linux ttyFx to Front Interface Assignment

Getting Started
20MC50M00 E5

2020-10-20
40

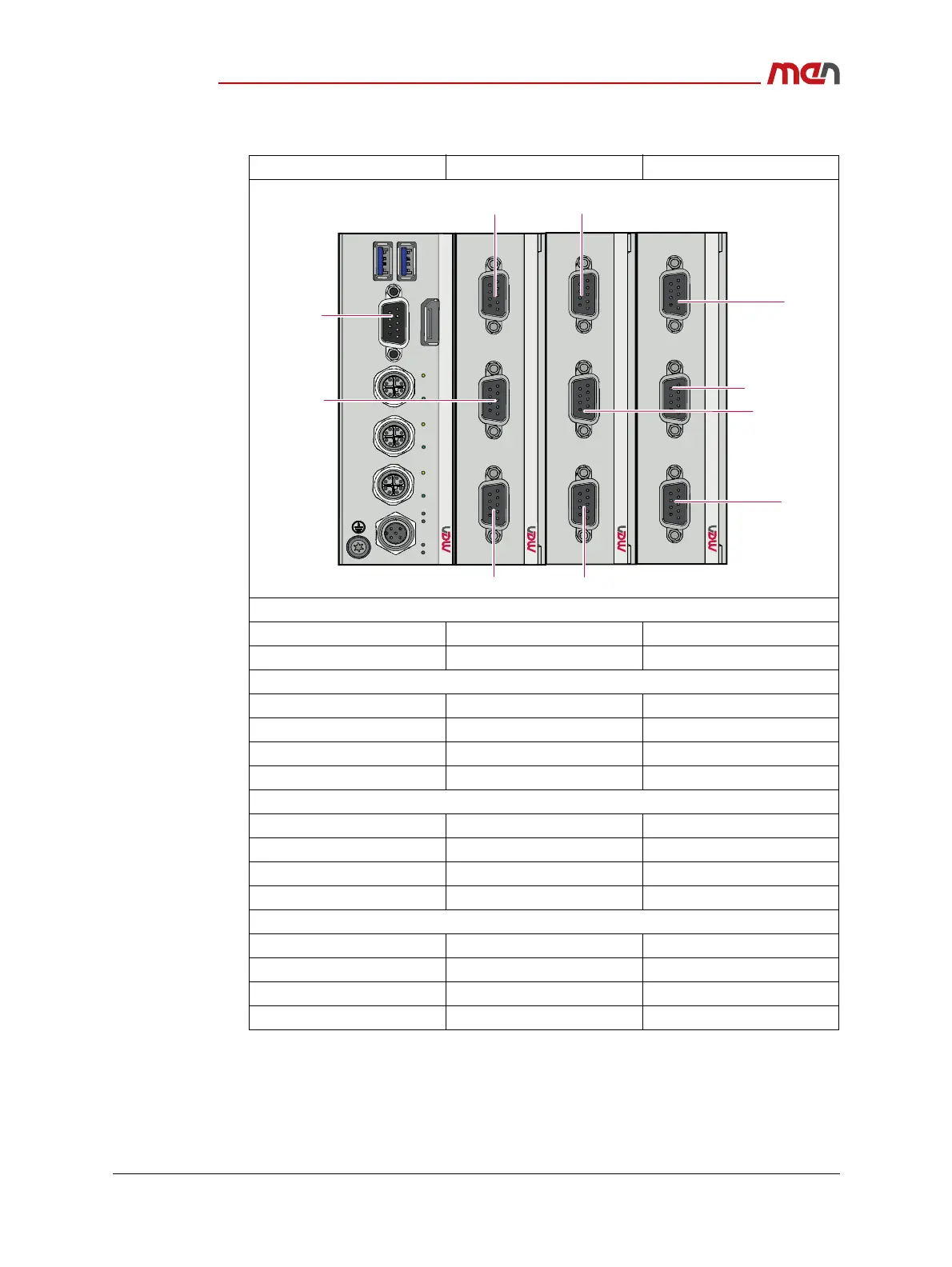

Table 1. Linux ttyFx to front interface assignment
Linux Port Front Connector Serial Interface
MC50M/MC50I
ttyF0 COM RS232
ttyF1 COM RS422/RS485
ME3 – first instance in system
ttyF2 COM1 RS232
ttyF3 COM2 RS232
ttyF4 COM2 RS422/RS485
ttyF5 COM3 RS422/RS485 or IBIS
ME3 – second instance in system
ttyF6 COM1 RS232
ttyF7 COM2 RS232
ttyF8 COM2 RS422/RS485
ttyF9 COM3 RS422/RS485 or IBIS
ME3 – third instance in system
ttyF10 COM1 RS232
ttyF11 COM2 RS232
ttyF12 COM2 RS422/RS485
ttyF13 COM3 RS422/RS485 or IBIS
USB1
DP
COM
ETH3
ETH2
ETH1
PWR1
1
2
3
4
A
L
A
USB2
L
L
A
COM2
COM3
COM1
COM2
COM3
COM1
COM2
COM3
COM1
yF0/yF1
yF3/yF4
yF5
yF9
yF13
yF11/yF12
yF7/yF8
yF10
yF6
yF2
