Functional Description
20MC50M00 E5

2020-10-20
46

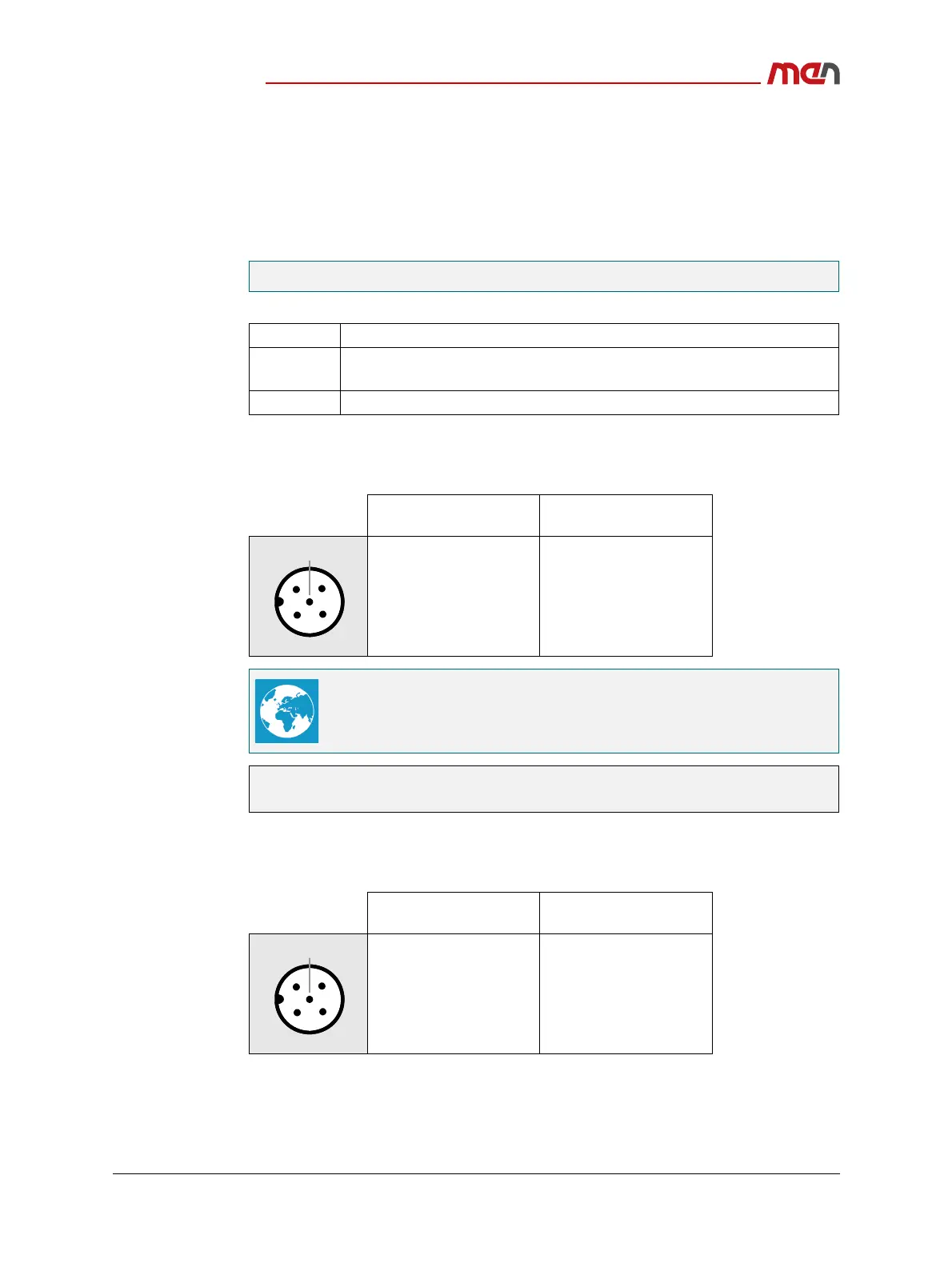

3 Functional Description
3.1 Power Supply
The MC50M is supplied via a power inlet connector at the front panel.
Table 2. Connector types – power supply (5-pin M12)
3.1.1 Pin Assignment for Product Versions 06MC50Mxx
Table 3. Pin assignment - power supply (5-pin M12 A-coded) for 06MC50Mxx
3.1.2 Pin Assignment for Prototype Versions 06MC50MPxx
Table 4. Pin assignment - power supply (5-pin M12 A-coded) for 06MC50MPxx
See Chapter Connecting the Power Supply for a detailed description.
Connector Type
On MC50M 5-pin M12 plug, A-coded (PHOENIX SACC-CI-M12MS-5CON-L90 SH SCO -
1439890)
Mating 5-pin M12 receptacle, A-coded
without MP1 Power
Supply Unit
with MP1 Power
Supply Unit
1 +24V_IN/+48V_IN
Only use power supply
connector of MP1
2 IGNITION
3GND
4GND
5GND
See the duagon website for the MP1 user manual.
See Chapter Connecting the Power Supply for further information on the power
supply connection in combination with MP1.
without MP1 Power
Supply Unit
with MP1 Power
Supply Unit
1 +24V_IN/+48V_IN -
2 - +110V_IN
3 GND +110V_GND
4GND -
5 IGNITION IGNITION
1
3
2
4
5
1
3
2
4
5
