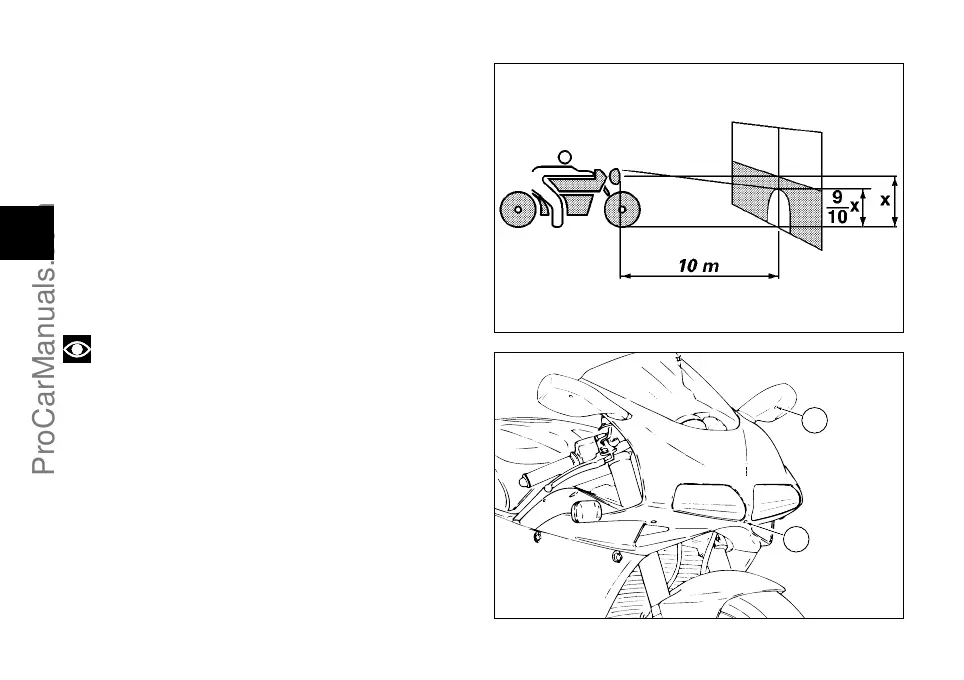

Beam setting (fig. 39.1)
When checking the beam setting, put the motorcycle
upright. Tyres should be inflated at the correct pressure
and one person should be sitting astride the motorcycle,
keeping it at right angles to its longitudinal axis. Place the
motorcycle opposite a wall or a screen, 10 meters apart
from it, then draw a horizontal line dictated by headlamp
center and a vertical one in line with the longitudinal axis
of motorcycle.
If possible, perform this check in dim light.
Switch on the low beam. The height of the light spot
(measured at the upper limit between dark and lighted-
up area) should not exceed 9/10
th
of the height from
ground of headlamp center.
Note
The procedure described here is in compliance with
the “Italian Standard” establishing the maximum height
of the light beam. Owners in other countries will adapt
said procedure to the provisions in force in their
countries.
The height of the light beam can be corrected using the
screws (1, fig. 39.2), after removing the protection cover.
Turn the screw clockwise to lower the beam, turn
anticlockwise to lift.
fig. 39.2
ProCarManuals.com

Ducati 996R Specifications

General

Displacement	998 cc
Compression Ratio	11.5:1
Torque	105 Nm (77.4 lb-ft) @ 8, 000 rpm
Transmission	6-speed
Frame	Tubular steel trellis
Front Brakes	2 x 320 mm discs, 4-piston calipers
Rear Brakes	Single 220 mm disc, 2-piston caliper
Seat Height	790 mm (31.1 in)
Engine Type	Liquid-cooled, 4-stroke, L-twin cylinder, Desmodromic DOHC, 4 valves per cylinder
Power	101 kW (136 hp) @ 10, 200 rpm
Fuel System	Fuel injection
Rear Suspension	Öhlins fully adjustable monoshock
Fuel Capacity	17 liters (4.5 gallons)
Bore x Stroke	100 mm x 63.5 mm
Front Suspension	Öhlins 43 mm upside-down fork
