Adjustment of gear change and rear brake
pedals
Gear change and rear brake pedals can be set in a
preferred position relative to footpegs to better suit the
riding style of every rider.

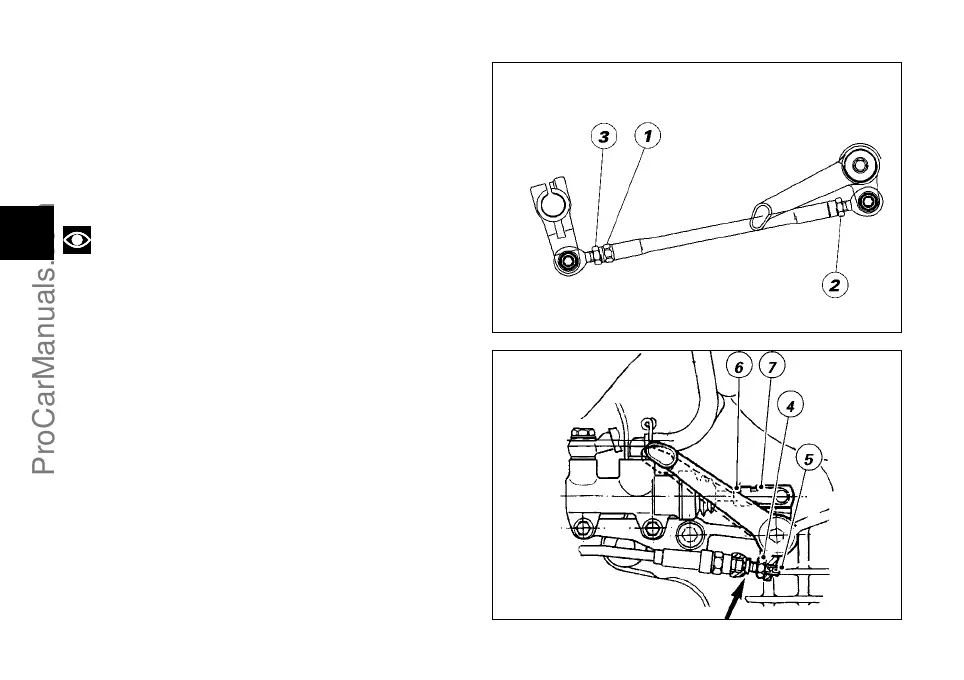

To set the gear change pedal, lock linkage (1) and loosen
check nuts (2) and (3).
Note
Nut (2) has a left-hand thread.
Apply an open-end wrench to the hexagon portion of
linkage (1) and rotate linkage until the gear change pedal
is in the desired position.
Tighten both check nuts until they contact linkage.
To set the rear brake pedal:
loosen check nut (4).
Turn travel adjuster (5) until pedal is in the desired
position.
Tighten check nut (4).
Work the pedal by hand to make sure it has about
1.5 ÷ 2 mm free play before brake is actuated.
If not so, set master cyilinder rod length as follows:
loosen the check nut (6) on the rod.
Tighten rod into fork (7) to increase free play or loosen it
to decrease play.
Tighten the check nut (6) and check play again.
fig. 11.2
fig. 11.3
ProCarManuals.com

Ducati 996R Specifications

General

Displacement	998 cc
Compression Ratio	11.5:1
Torque	105 Nm (77.4 lb-ft) @ 8, 000 rpm
Transmission	6-speed
Frame	Tubular steel trellis
Front Brakes	2 x 320 mm discs, 4-piston calipers
Rear Brakes	Single 220 mm disc, 2-piston caliper
Seat Height	790 mm (31.1 in)
Engine Type	Liquid-cooled, 4-stroke, L-twin cylinder, Desmodromic DOHC, 4 valves per cylinder
Power	101 kW (136 hp) @ 10, 200 rpm
Fuel System	Fuel injection
Rear Suspension	Öhlins fully adjustable monoshock
Fuel Capacity	17 liters (4.5 gallons)
Bore x Stroke	100 mm x 63.5 mm
Front Suspension	Öhlins 43 mm upside-down fork
