Ducati 996R User Manual

57
E
TECHNICAL DATA

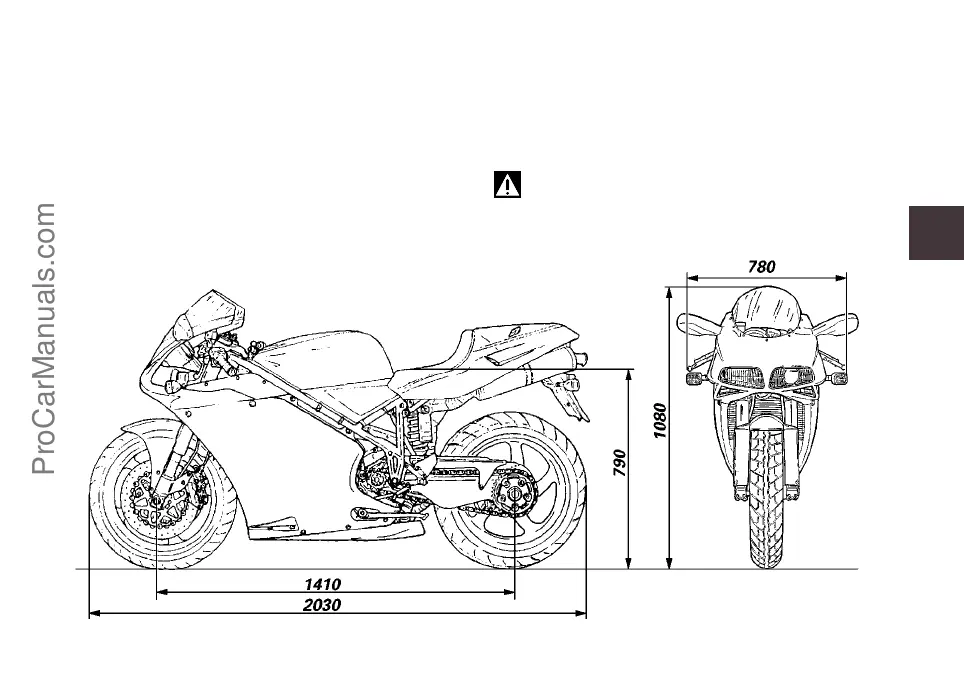

Overall dimensions (mm) (fig. 43)
fig. 43
Weights
Dry weight:
190 kg.
Carrying full load:
310 kg.
Warning
Failure to observe weight limits could result in poor
handling and impair the performance of your motorcycle,
and you may lose control of the motorcycle.
ProCarManuals.com

Ducati 996R Specifications

General

Displacement	998 cc
Compression Ratio	11.5:1
Torque	105 Nm (77.4 lb-ft) @ 8, 000 rpm
Transmission	6-speed
Frame	Tubular steel trellis
Front Brakes	2 x 320 mm discs, 4-piston calipers
Rear Brakes	Single 220 mm disc, 2-piston caliper
Seat Height	790 mm (31.1 in)
Engine Type	Liquid-cooled, 4-stroke, L-twin cylinder, Desmodromic DOHC, 4 valves per cylinder
Power	101 kW (136 hp) @ 10, 200 rpm
Fuel System	Fuel injection
Rear Suspension	Öhlins fully adjustable monoshock
Fuel Capacity	17 liters (4.5 gallons)
Bore x Stroke	100 mm x 63.5 mm
Front Suspension	Öhlins 43 mm upside-down fork
