-6-
2011-09
14 / 40
850 mini

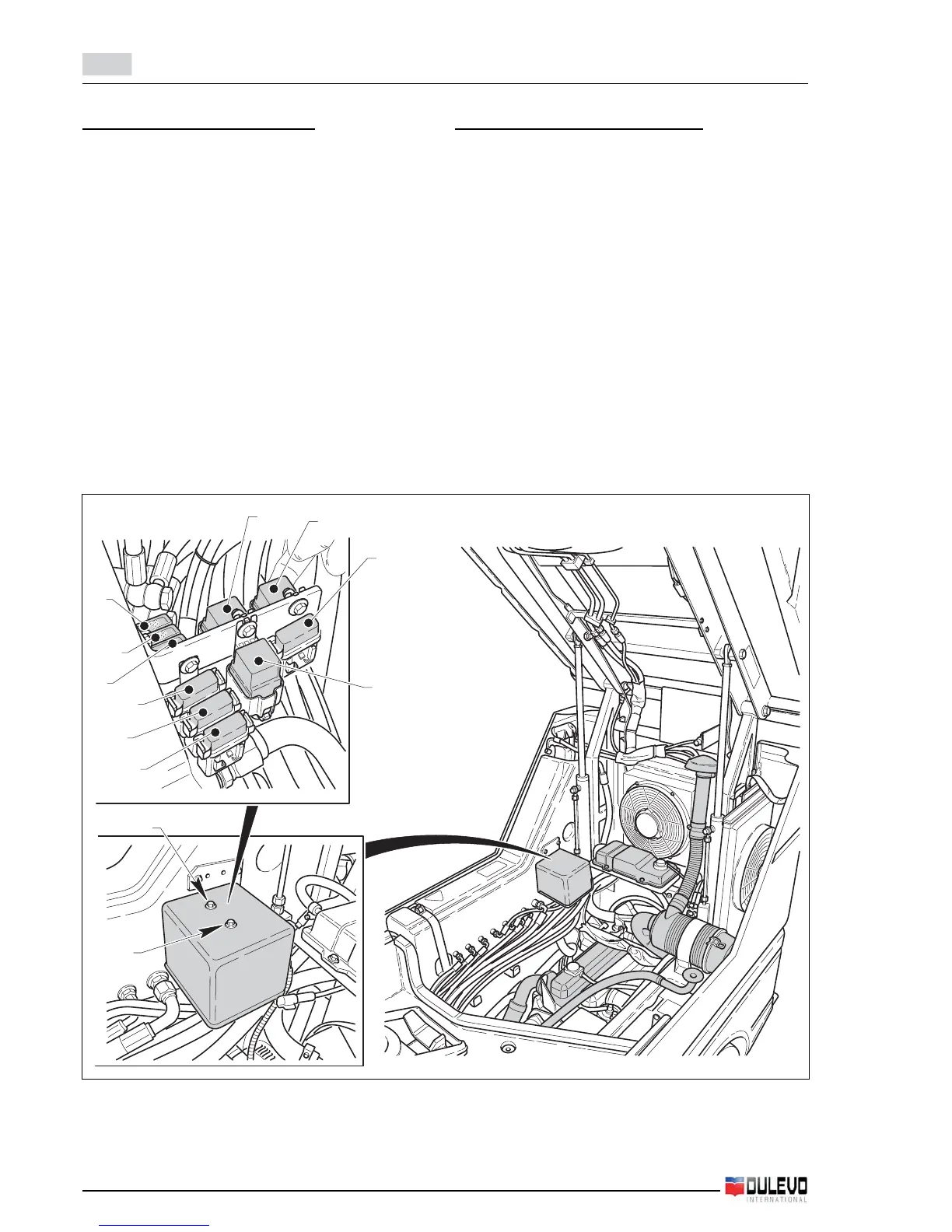

Sostituzione fusibili e relè motore
- Sollevare il contenitore per accedere ai fusibili (1),
(2), (3), (4), (5) e (6) ed ai relè (7), (8) e (9); inserire le
barre di sicurezza.
- Rimuovere il carter di protezione svitando le due viti
(11).
Posizione e valore fusibili e relè
1 = Fusibile candelette ..................................... 40A
2= Fusibile generale luci ................................. 40A
3= Fusibile + batteria....................................... 40A
4= Fusibile elettrostop ..................................... 30A
5= Fusibile elettroventola A/C ......................... 20A
6= Fusibile elettroventola olio idraulico............ 20A
7= Relè ventilatore A/C
8= Relè ventilatore olio idraulico
9= Relè candelette
10= Fusibile elettrovalvola avviamento a freddo . 5A
1
2
3
4
5
6
7
8
9
10
11
11
Engine fuses and relay replacement
- Lift the hopper to have access to the fuses (1), (2),
(3), (4), (5) and (6) and to the relays 87), (8) and (9);
secure the hopper in place with the safety bar.
- Remove the safety guard by undoing the two screws
(11).
Position and values of fuses and relays
1 = Glow plug fuse ........................................... 40A
2= Lights general fuse..................................... 40A
3= Fuse + battery............................................ 40A
4= Electrostop fuse ......................................... 30A
5= A/C electrofan fuse .................................... 20A
6= Hydraulic oil electrofan fuse ....................... 20A
7= A/C fan relay
8= Hydraulic oil fan relay
9= Glow plug relay
10= Cold starting electrovalve fuse ..................... 5A
