- 16 -

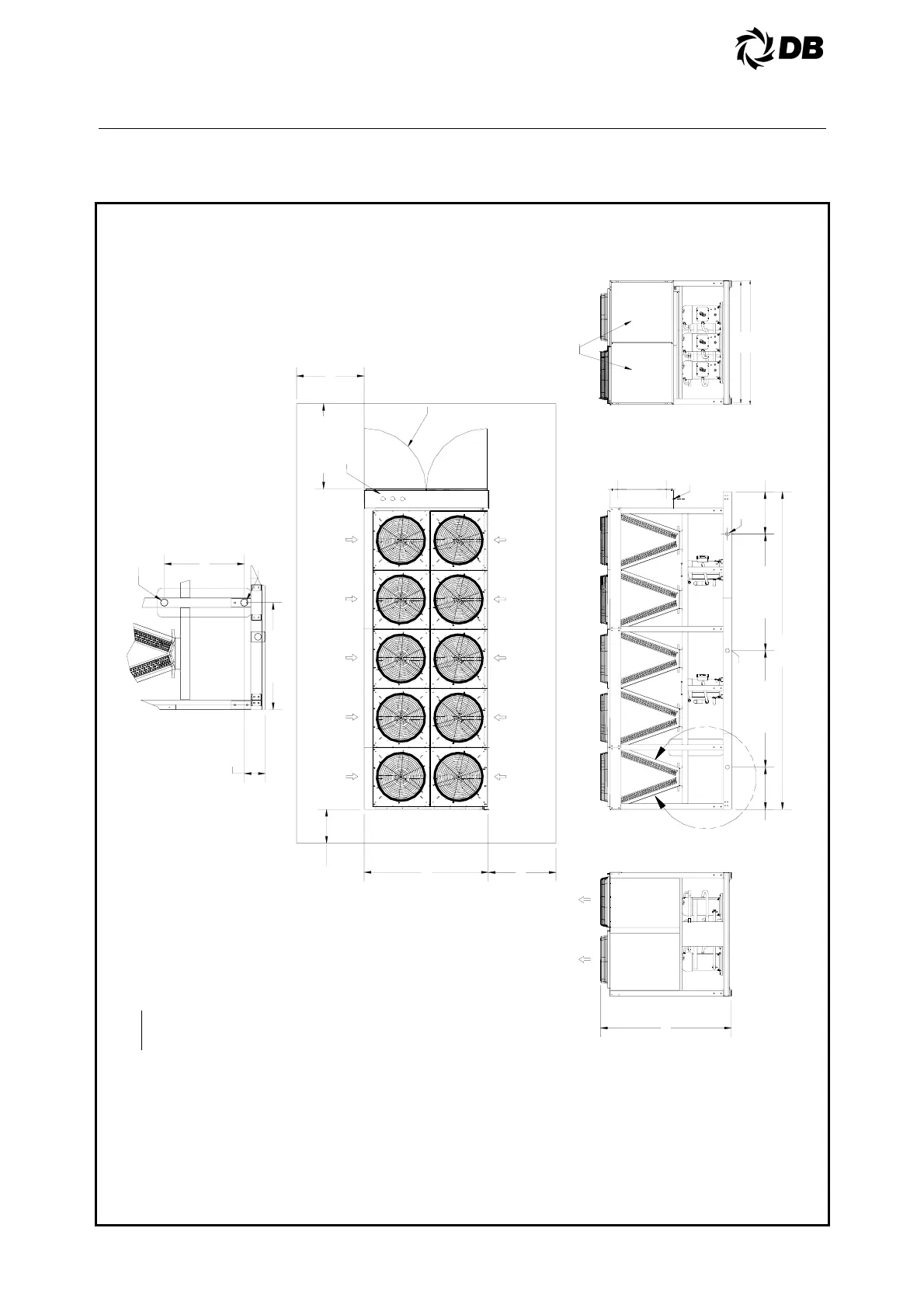

TOP VIEW
LEFT VIEW
FRONT VIEW
REAR VIEW
84 [2134]
88 [2235]
.
AIR FLOW
226 [5740]
1. ALL DIMENSIONS ARE IN INCHES AND MILIMETERS.
2. ALLOW 60 [ 1254 ] CLEARANCE AT CONTROL PANEL END OF UNIT FOR SERVICES.
3. USE MINIMUM 36 [ 914 ] FLEXIBLE CONDUIT TO CONTROL BOX TO ISOLATE UNIT.
4. WATER PIPING TO BE SUPPORTED TO MINIMIZE LOAD ON UNIT.
NOTES:
6 NOS OF 3/4" (19)
MOUNTING HOLES
FOR SPRING ISOLATORS
AIR FLOW
6 NOS OF ? 2.9 [? 73.200 mm] LIFTING
HOLES ON BOTH SIDE OF THE FRAME
POWER ENTRY
(BOTTOM)
POWER ENTRY
(BOTTOM)
30 [762.000 mm]
83 [2101.850 mm]83 [2101.850 mm]30 [762.000 mm]
CONTROL BOX ACCESS
88 [2237.600 mm]
DOOR SWING
AIR FLOW
9 [219.500 mm]
Approx.
33 [836.000 mm]
44 [1119.700 mm]
Approx.
WATER OUT CONNECTION [3.5"] NOMINAL DIA
OPTIONAL WELDED FLANGE CONNECTION
48 [1216.800 mm]
48 [1219.200 mm]
60.5 [1536.600 mm]
24 [609.200 mm]
93 [2357.500 mm]
WATER IN CONNECTION [3.5"] NOMINAL DIA
OPTIONAL-WELDED FLANGE CONNECTION
DETAIL A
A
2.0 INSTALLATION
ACDS 135, 150
