- 17 -

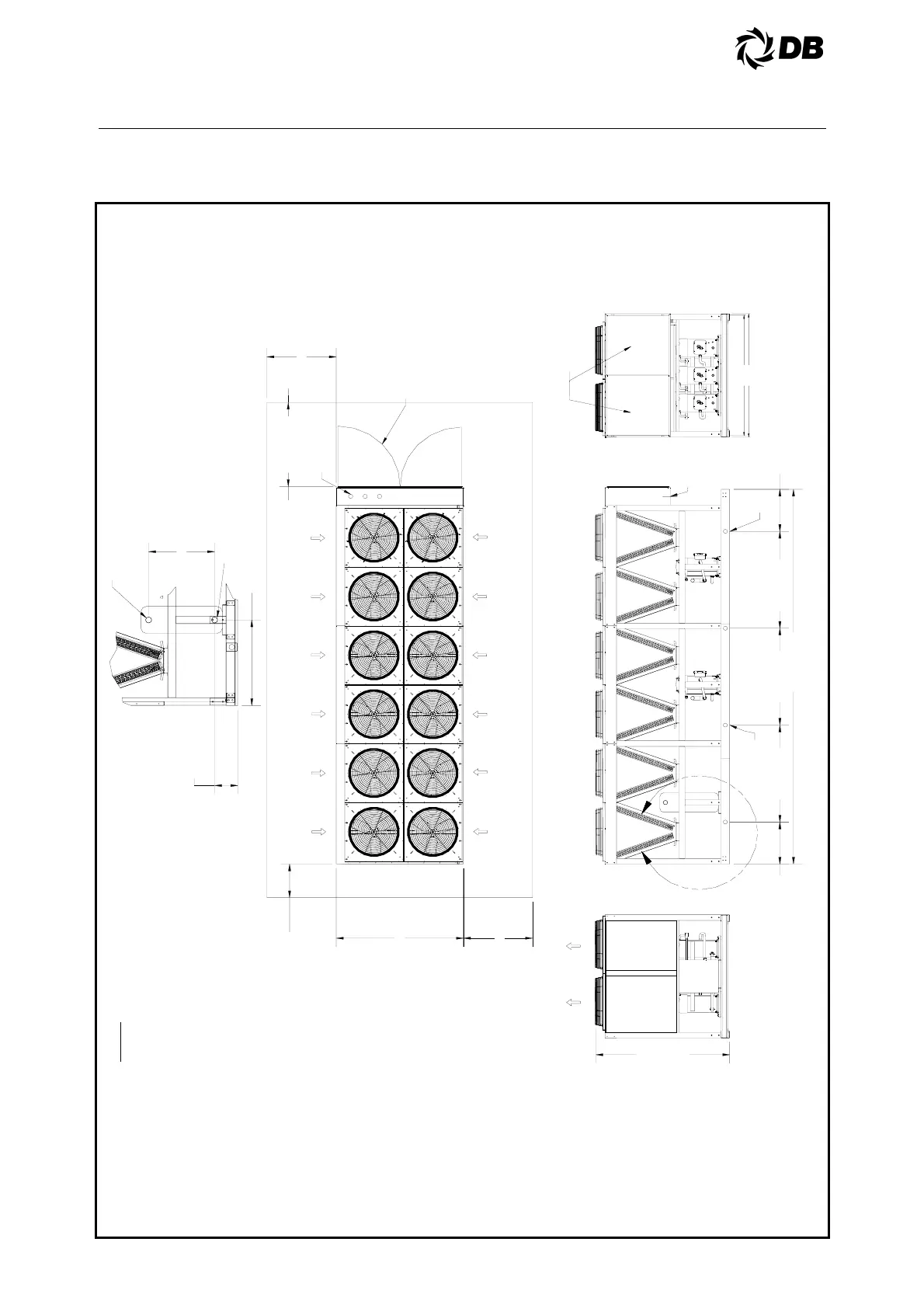

LEFT VIEW
FRONT VIEW
REAR VIEW
TOP VIEW
69 [1756.830 mm]
84 [2134]
88 [2235]
.
DOOR SWING
POWER ENTRY
8 NOS OF n 2.9 [73mm] LIFTING
HOLES ON BOTH SIDE OF THE FRAME
8 NOS OF 3/4" (19)
MOUNTING HOLES
FOR SPRING ISOLATORS
NOTES:
1. ALL DIMENSIONS ARE IN INCHES AND MILIMETERS.
2. ALLOW 60 [ 1254 ] CLEARANCE AT CONTROL PANEL END OF UNIT FOR SERVICES.
3. USE MINIMUM 36 [ 914 ] FLEXIBLE CONDUIT TO CONTROL BOX TO ISOLATE UNIT.
4. WATER PIPING TO BE SUPPORTED TO MINIMIZE LOAD ON UNIT.
WATER IN CONNECTION [3.5"] NOMINAL DIA
OPTIONAL WELDED FLANGE CONNECTION
WATER OUT CONNECTION [3.5"] NOMINAL DIA
OPTIONAL WELDED FLANGE CONNECTION
33 [836.000 mm]
12 [294.900 mm]
Approx.
44 [1116.050 mm]
Approx.
DETAIL A
A
48 [1219.200 mm]
60 [1524.000 mm]
48 [1216.800 mm]
88 [2237.600 mm]
24 [609.600 mm]
93 [2353.719 mm]
30 [762.000 mm] 69 [1756.830 mm] 69 [1756.830 mm] 30 [762.000 mm]
POWER ENTRY
(BOTTOM)
CONTROL BOX ACCESS
AIR FLOW
AIR FLOW
AIR FLOW
267.5 [6794.500 mm]
2.0 INSTALLATION
ACDS 165, 180
