Duplo 660P Maintenance Manual

SECTION 5 - ELECTRICAL DESCRIPTION & ADJUSTMENTS
KEY
ABBREVIATION DESCRIPTION
LS-D Knife bottom position switch LS-R Micro adjustment switch LS-S Rear point switch P1 Backgauge brake R1 Backgauge on/off relay R2 Backgauge forward/reverse relay R3 Backgauge fast/slow relay SB Backgauge slow speed adjustment SSR Slow start relay TR1 MKII power transformer

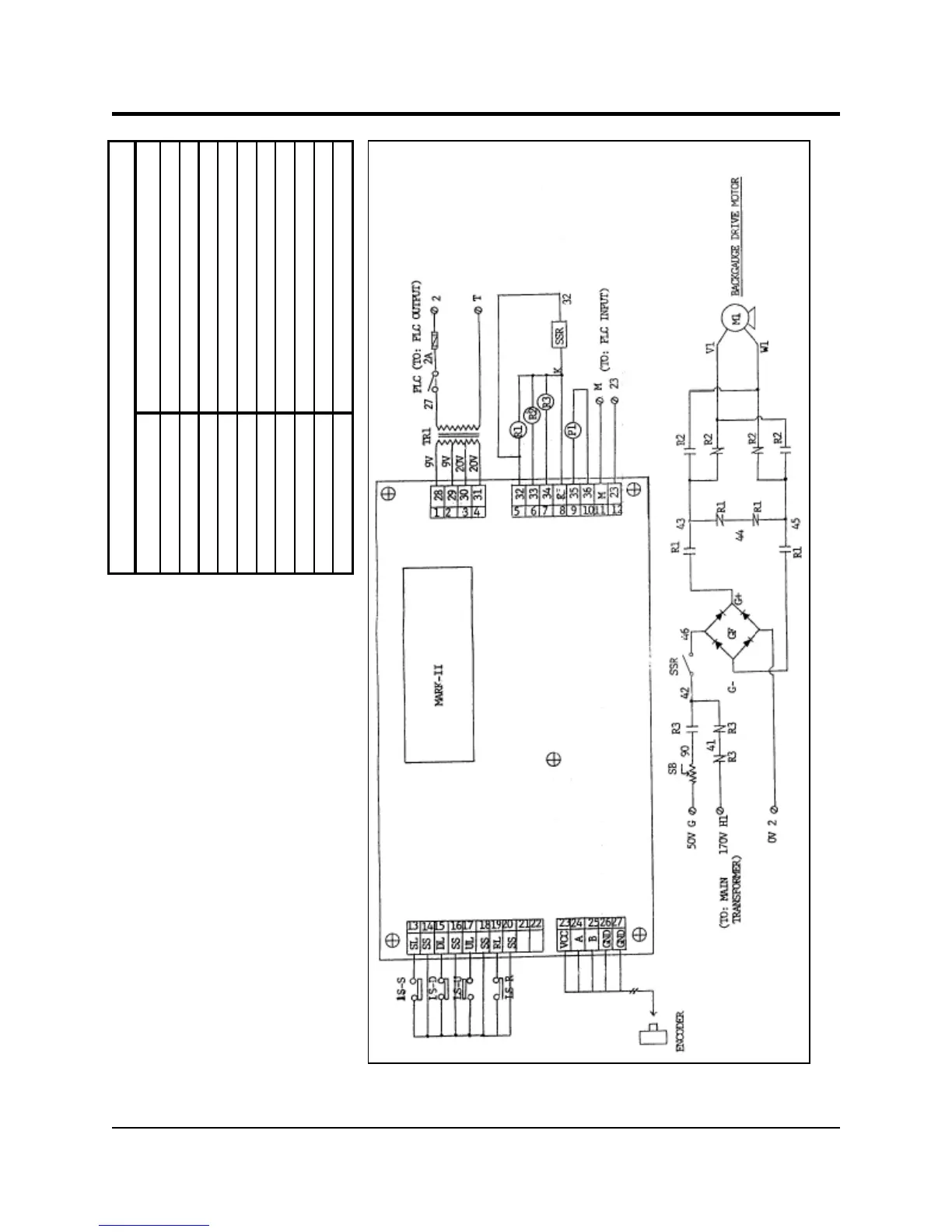

Figure 3b - Electrical Diagram for Programmatic MKII and Backgauge Motor Circuit
660P CUTTER
5 - 9
