Chapter 3 Advanced Operation
5-2. Adjusting the position of the kicker
1

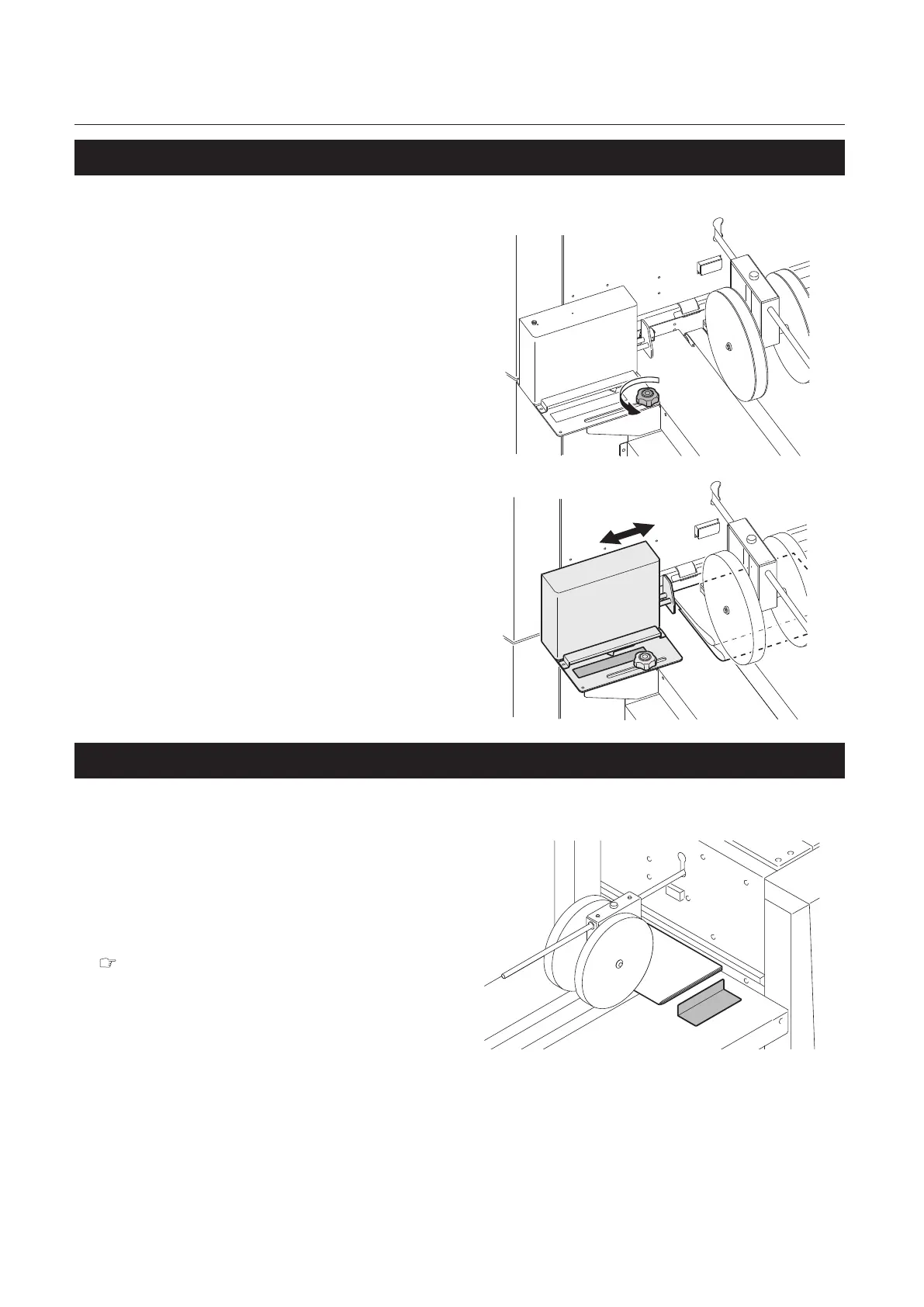

Loosen the knob screw of the kicker.
2
Move the kicker according to the
booklet size referring to the scale label.
3
Tighten the knob screw of the kicker.
5-3. Attaching the stopper
The use of the stopper can prevent the sorted booklet from being kicked too much.
Attach the supplied stopper to the belt
stacker (magnet type).
Attach the stopper at a position which is 40
to 50 mm/1.57 to 1.97 inches away from the
booklet before being kicked.
When you need to adjust the paper guide
roller unit, refer to the section below.
“10-1. Adjusting the position of the paper guide roller unit” (p.2-46)
