Chapter 5 Trouble Guide
Symptom Cause Solution
After a booklet is
trimmed, it is not
conveyed.
The conveyance restart timing is not
appropriate.
Make the timing slower.
(p.2-47)

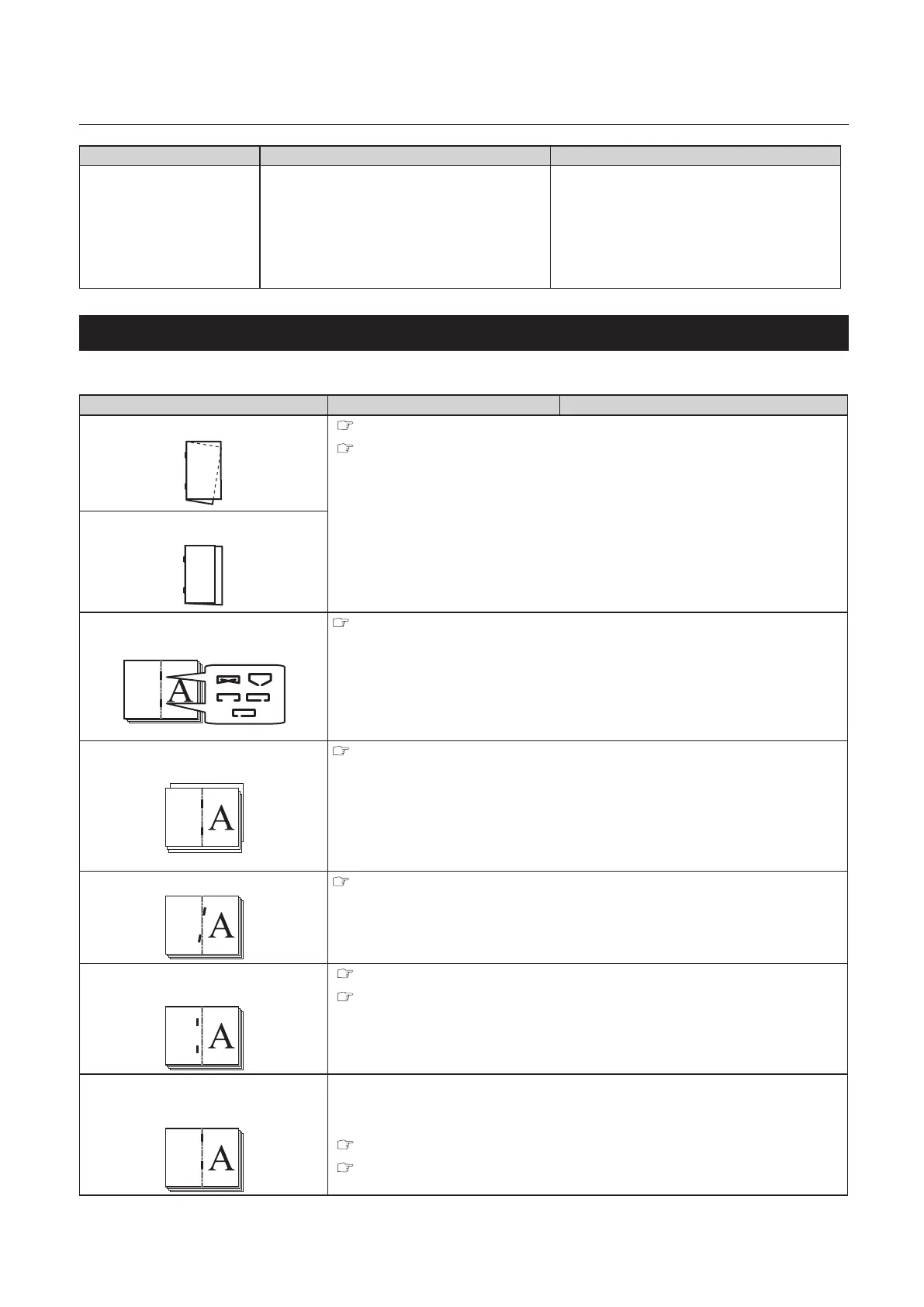

4-6. Problem with finished booklets
Symptom Cause Solution
The booklet is folded skewed.
“The folding position is not stable.” (p.5-13)
“Folding misalignment has occurred.” (p.5-15)
Folding misalignment has occurred.
There is a problem with the length
of a stitch and its form.
“6. Adjusting the Stitcher Head” (p.3-5)
The paper does not align after
stitched.
”7-1. When paper does not align” (p.2-25)
Stitches are oblique.
”7-6. When the stitching position is not at right angle to paper” (p.2-32)
The stitching position does not
coincide with the folding position.
”7-2. When stitching and folding positions do not align” (p.2-27)
”7-3. Adjusting stitching and folding positions simultaneously” (p.2-29)
The stitching position is closer to
the head or foot of the booklet than
intended.
When using the OFFSET TRIM KIT (option), the head/foot guide of the DKT-
200 and the stitching side guides and the folding side guides are not properly
adjusted.
”2-2-1. Adjusting head/foot guide of the DKT-200” (p.2-13)
”2-2-2. Adjusting the stitching side guides and the folding side guides (option)” (p.2-14)
