1-6
Chapter 1 Before Operation

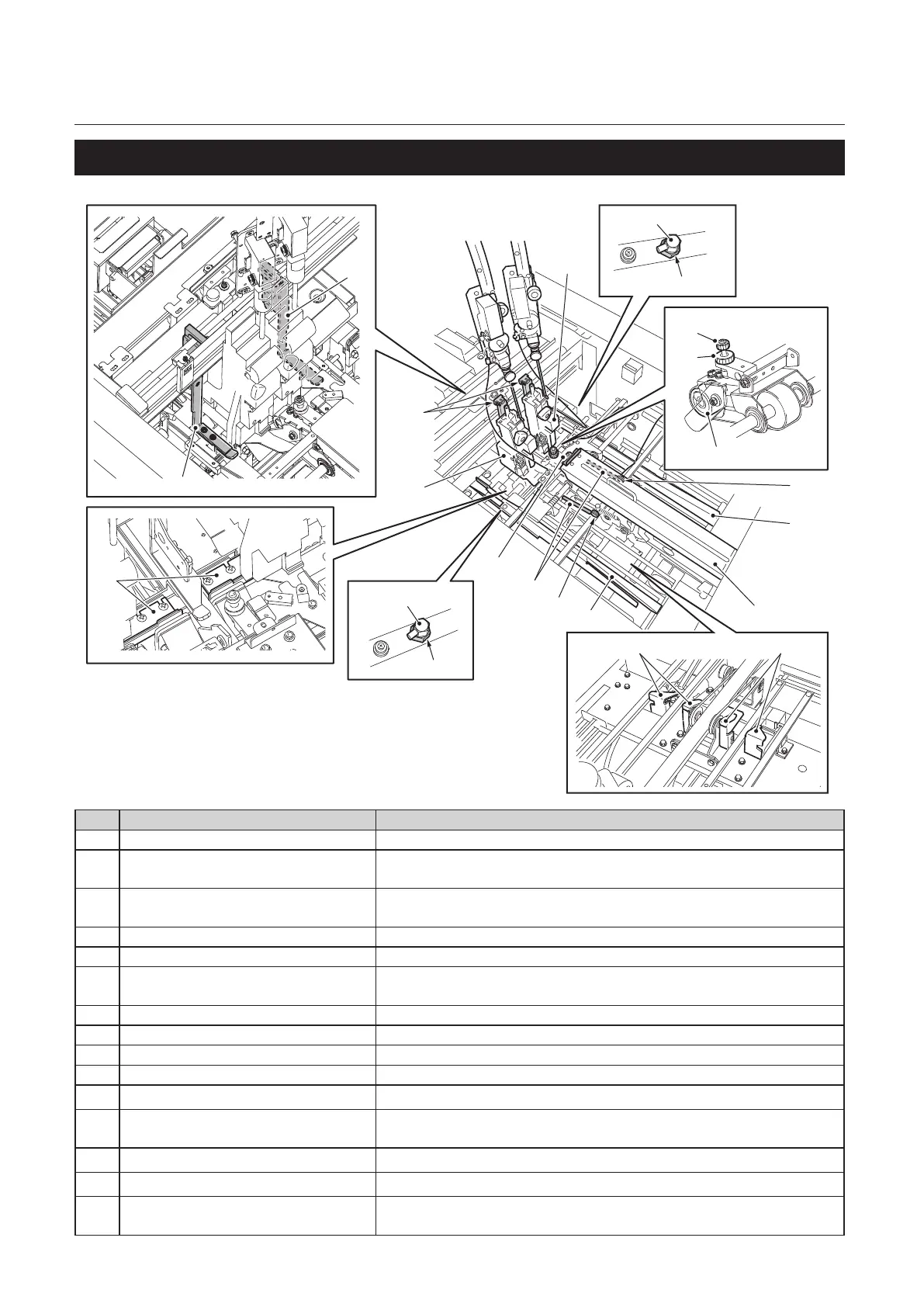

2-3. DBM-600 internal parts (stitching section)
[5]
[5]
[6]
[7]
[8]
[11]
[10]
[9]
[9]
[13]
[14]
[1]
[1]
[2]
[10]
[4]
[3]
[15]
[3]
[4]
[12] [12]
No. Name Function
[1] Stitcher head Stitches paper with a wire.
(p.1-12)
(p.4-4)
[2] Stitch release lever Used to release stitching operations of the stitcher head. Use this for
corner stitches.
(p.2-17)
[3] CALENDAR KIT stopper Used for CALENDAR KIT (option). When paper reaches here, the
stopper goes down.
[4] Stitching side guide knob screw Used to secure the angle of the stitching side guides.
(p.2-32)
[5] Stitching side guide adjustment Used to adjust the angle of the stitching side guides.
(p.2-32)
[6] Stitch ejection roller R height
adjustment
Adjusts the height of the ejection roller R.
(p.2-38)
[7] Stitch ejection roller R knob screw Secures the ejection roller height.
(p.2-38)
[8] Stitch ejection roller R Conveys stitched paper to the folding section.
(p.1-27)(p.2-38)
[9] Stitching paper holder knob screw Secures the stitching paper holder.
(p.2-37)
[10] Stitching side guide Aligns the sides of paper conveyed to the stitching section.
(p.2-14)(p.2-25) (p.2-27)
[11]
Infeed conveyance unit Conveys paper to the stitching section.
(p.2-35)
[12]
Stitching back guide Aligns the leading and trailing edges of paper conveyed to the
stitching section.
(p.2-21)(p.2-27)
[13]
Infeed paper holder Prevents paper conveyed to the stitching section from rising.
(p.2-37)
[14]
Infeed conveyance unit lock lever Locks and releases the infeed conveyance unit.
(p.2-35)(p.5-6)
[15]
Side-stitching stopper Used during side-stitching operations. Stops paper conveyed from the
infeed section.
To Next Page
