Duplo DBM-600 User Manual

1-7
Chapter 1 Before Operation
[6][5]
[7]
[2]
[3]
[4]
[1]

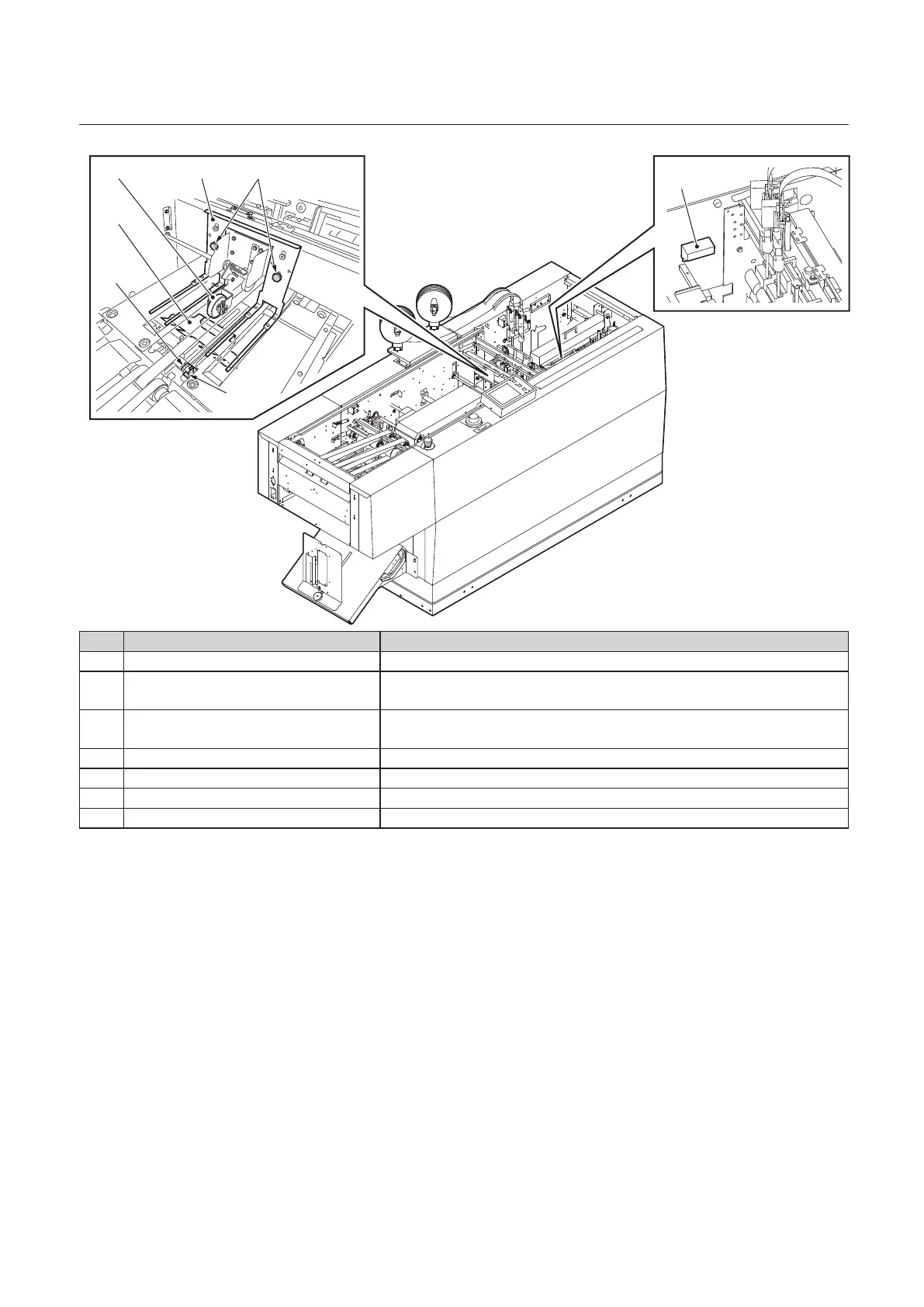

No. Name Function
[1] Saddle-stitching stopper lock plate Secures the saddle-stitching stopper angle.
(p.2-32)
[2] Saddle-stitching stopper angle
adjustment
Adjusts the angle of the saddle-stitching stopper.
(p.2-32)
[3] Saddle-stitching stopper Used during saddle stitching operations. Stops paper conveyed from
the infeed section.
(p.2-32)
[4] Stitch ejection roller L Conveys stitched paper to the folding section.
(p.1-27)
[5] Stitching paper holder Prevents paper conveyed to the stitching section from rising.
(p.2-37)
[6] Stitching paper holder knob screw Secures the stitching paper holder.
(p.2-37)
[7] LED inner lamp LED lamp for partially lighting up inside the machine.
