2-17
Chapter 2 Basic Operation

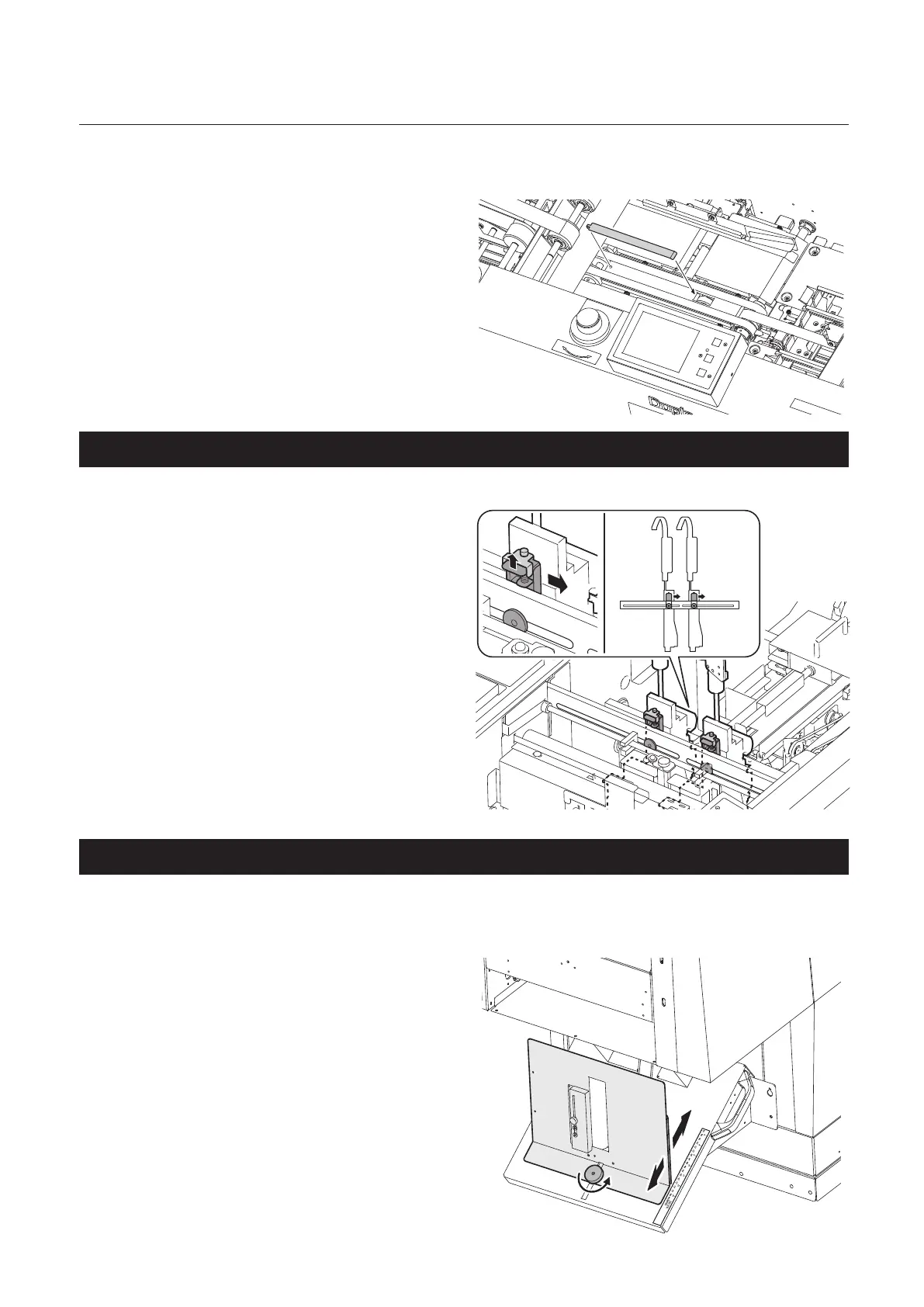

3-2-2. Attaching the page insertion guide
1
Align the left notch on the page
insertion guide with the hole on the
machine.
2
Align the right notch on the page
insertion guide with the cutout on the
machine.
Once you nish the page insertion operations,
remove the page insertion guide.
3-3. Moving the stitch release levers (for corner stitching)
When performing corner stitching, follow the
procedure below.
While lifting the stitch release lever of the
stitcher head that is not used for the corner
stitching, move it to the operator’s side.
Set the wire feed detection for the side that
is not used for corner stitching to off.
(p.1-29)
3-4.
Adjusting the paper receiver stopper (for side stitching, corner stitching)
A stitched booklet is ejected to the paper receiver for side stitching and corner stitching. Move the paper
receiver stopper according to the paper size.
1
Loosen the paper receiver knob screw.
2
Move the stopper manually referring to
the scale label.
3
Tighten the paper receiver knob screw.
