DURKOPP ADLER 745-34-2 User Manual

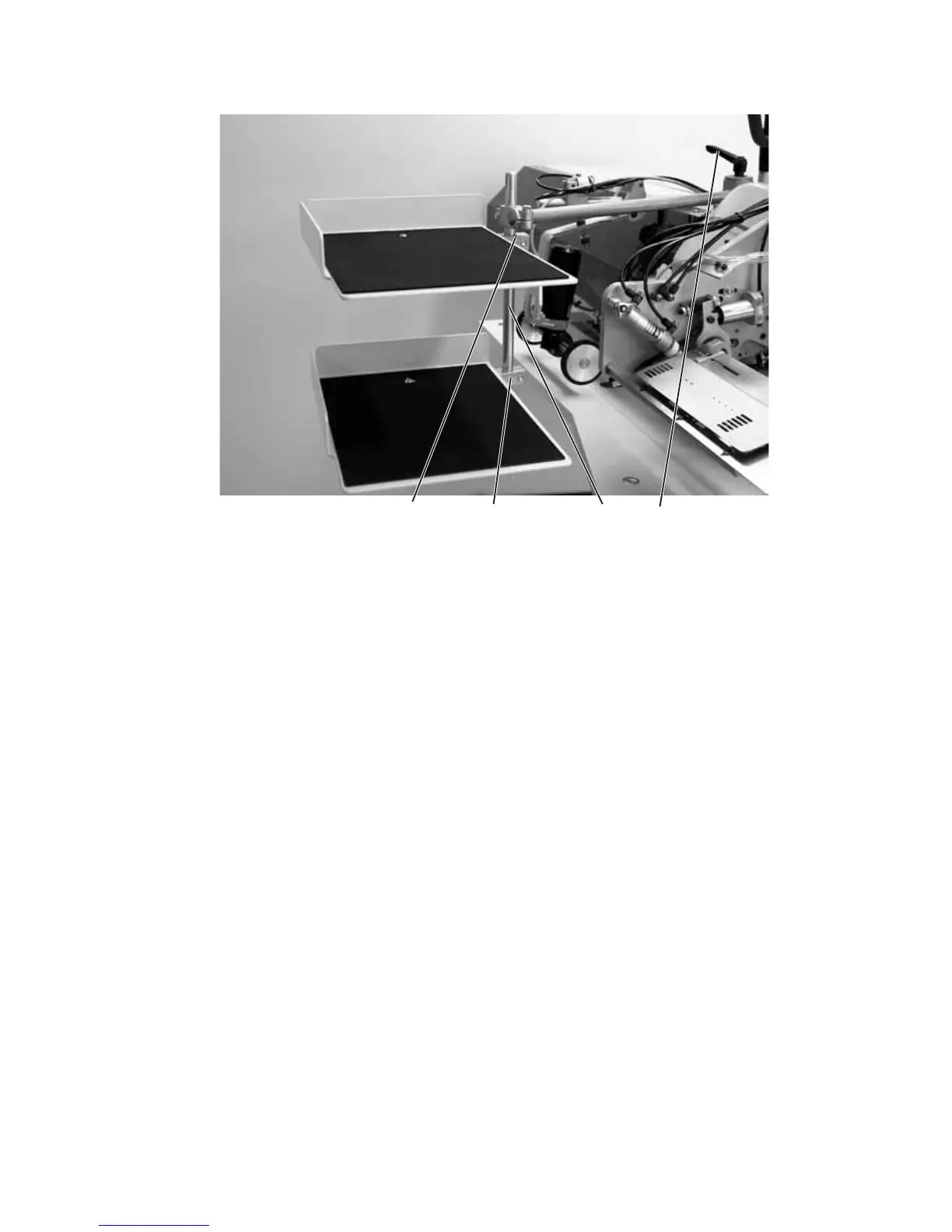

4.3 Workpiece boxes
–
Fasten the workpiece boxes onto rod 2.
For this purpose push the clamping pieces 4 and 3 on rod 2, align
the height and clamp them firmly by tightening the screws.
–
Loosen the screw at clamping lever 1 and align the workpiece
boxes to the sewing station.
–
Tighten the screw at clamping lever 1.
10
43 21
