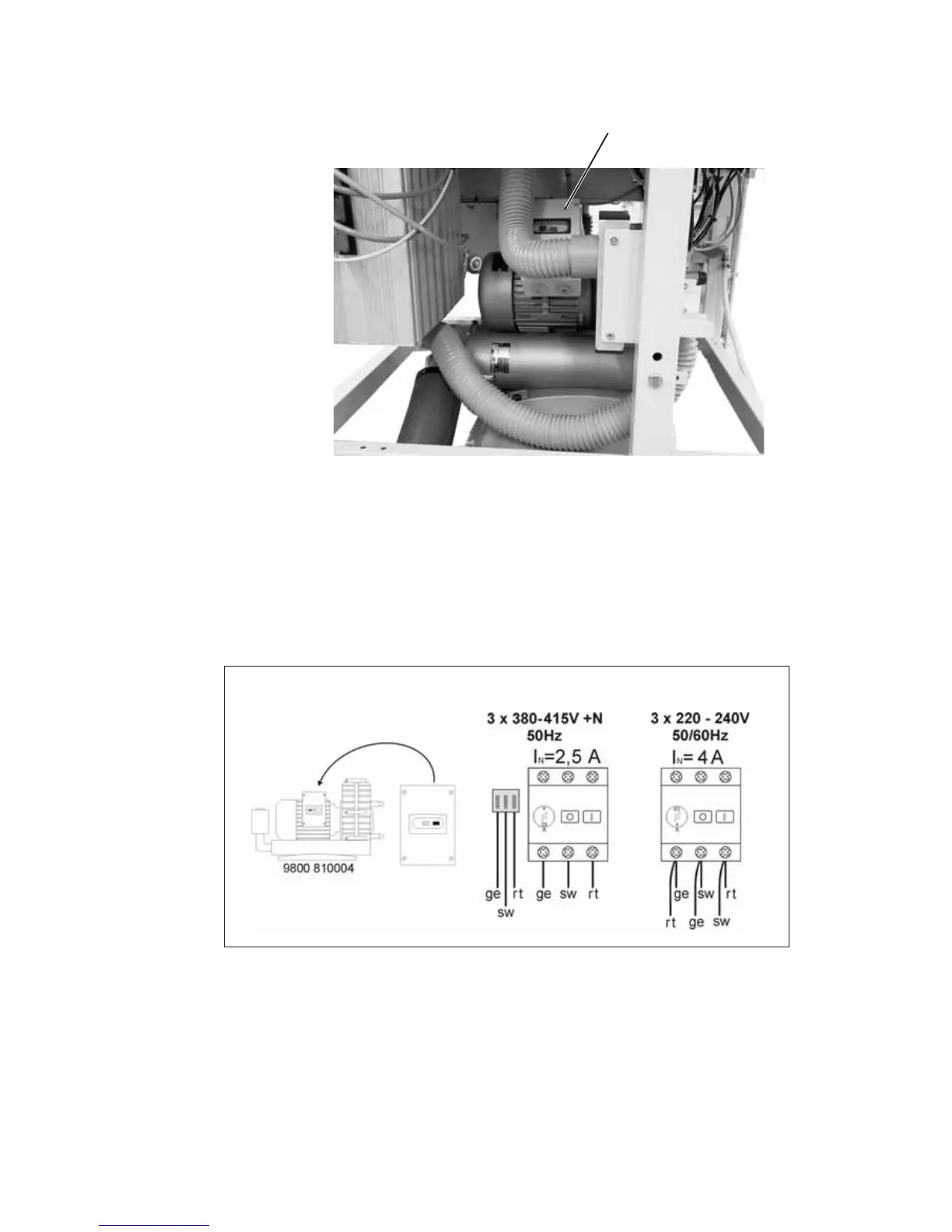

5.4 Checking the nominal voltage of the vacuum device (optional equipment)
The adaptation to the local mains voltage has to be done at the
terminal strip in control box 1.
Screw off the cover of control box 1.
Check the arrangement of the connections to the terminal strip.
(see circuit diagram).
If necessary, change the c onnections according to the local mains
voltage.
Put the cover on the control box 1 again and screw on.
Legend: bl=blue / sw =black / bn=brown / gn-ge= green, yellow
5.5 Direction of rotation of the sewing motor and the vacuum blower
The sewing unit is equipped with the latest step motor technology.
A check of the direction of rotation of the sewing motors is not
required because it is automatically set by the control.
The direction of rotation of the vacuum blower can be inverted by
exchanging the phase (plug).
20
1
