4.5 Table extensions (optional equipment)

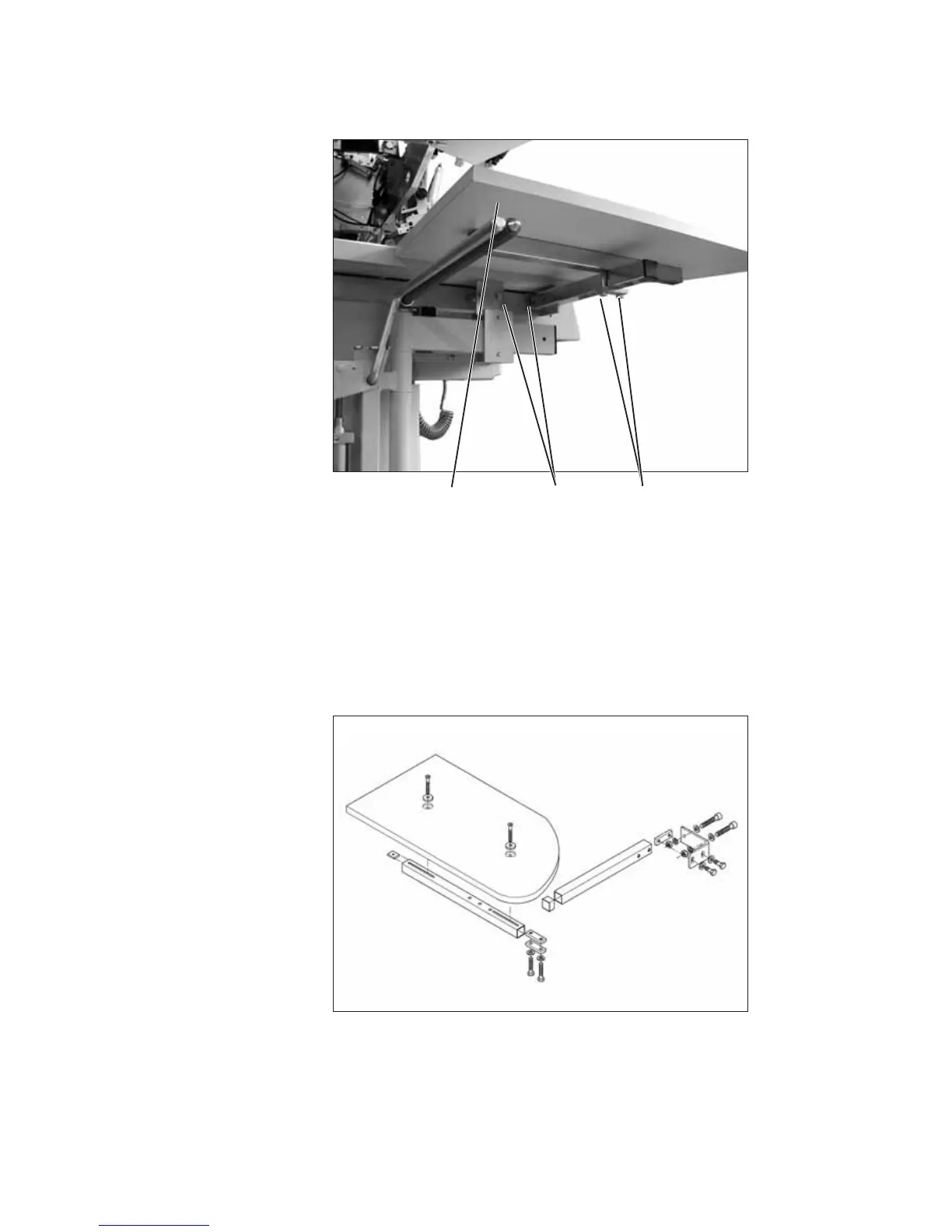

4.5.1 Table extension for working method with bundle clamp carriage (Order No. 0745 597674)
–
Fasten the table extension 3 onto the table top brace with the
screws 2.
–
Loosen screws 1 slightly.
Create a clearance to the table top by shifting the table extension 3.
This clearance is required for the free passage of the positioned
pocket bag.
12
321
