DURKOPP ADLER 745-34-2 - Throw-Over Stacker (Optional Equipment)

4.6 Throw-over stacker (optional equipment)

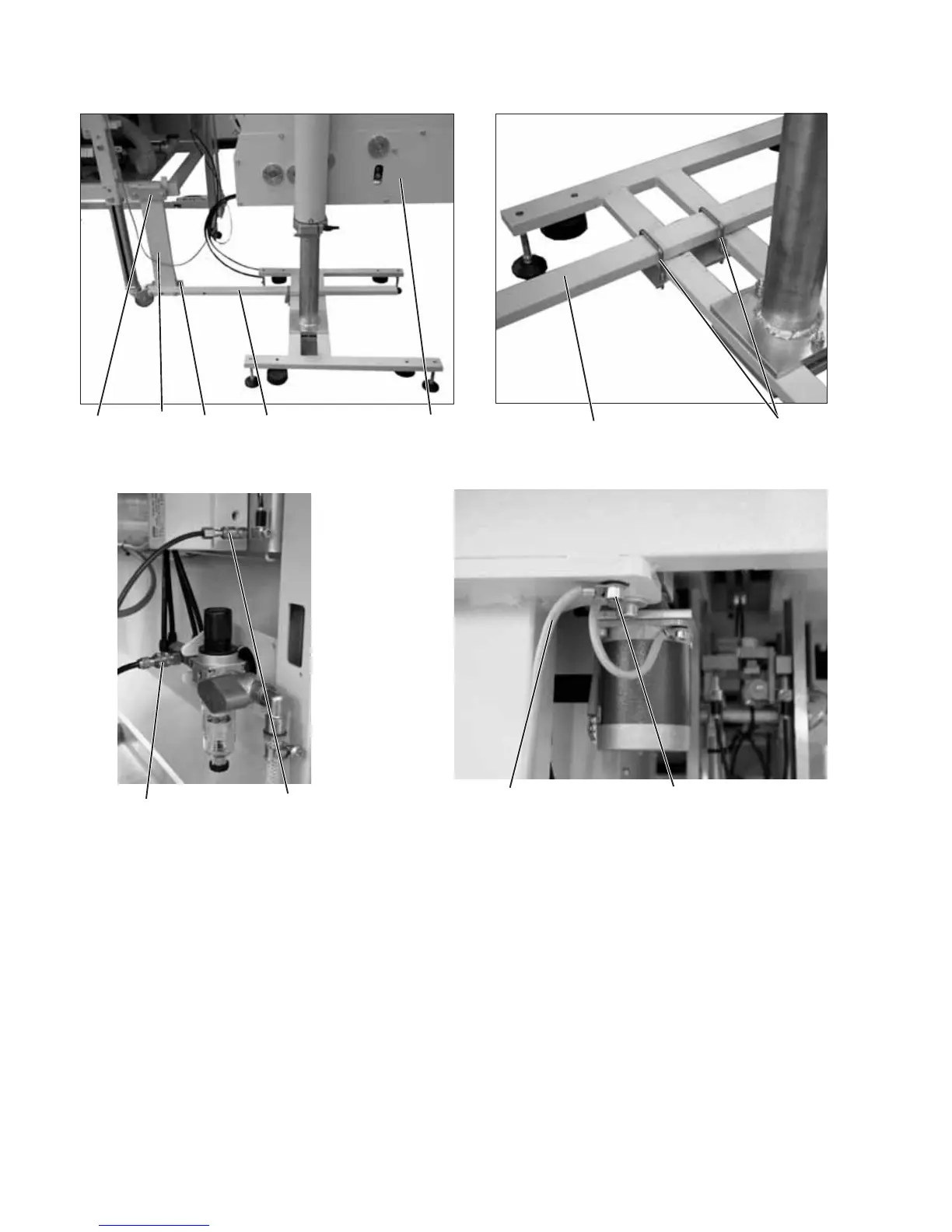

The throw-over stacker 1 (Order No. 0745 597554) is fastened to the
stand of the sewing unit with mounting pipe 2.
–
Fasten the mounting pipe 2 in the right stacking opening 4 with
screws, washers and shackle 3.
–
Push the throw-over stacker towards the stand of the sewing unit.
–
Fasten spars 5 and 6 on spar 2 with the shackle and the two
brackets 7.
–
Insert the coupling plug of the compressed air supply (thick hose)
into hose coupling 8.
–
Insert the coupling plug of the control conduit (thin hose) into
coupling 9.
14
78
325 4 1
46
10 9
