DURKOPP ADLER 745-34-2 User Manual

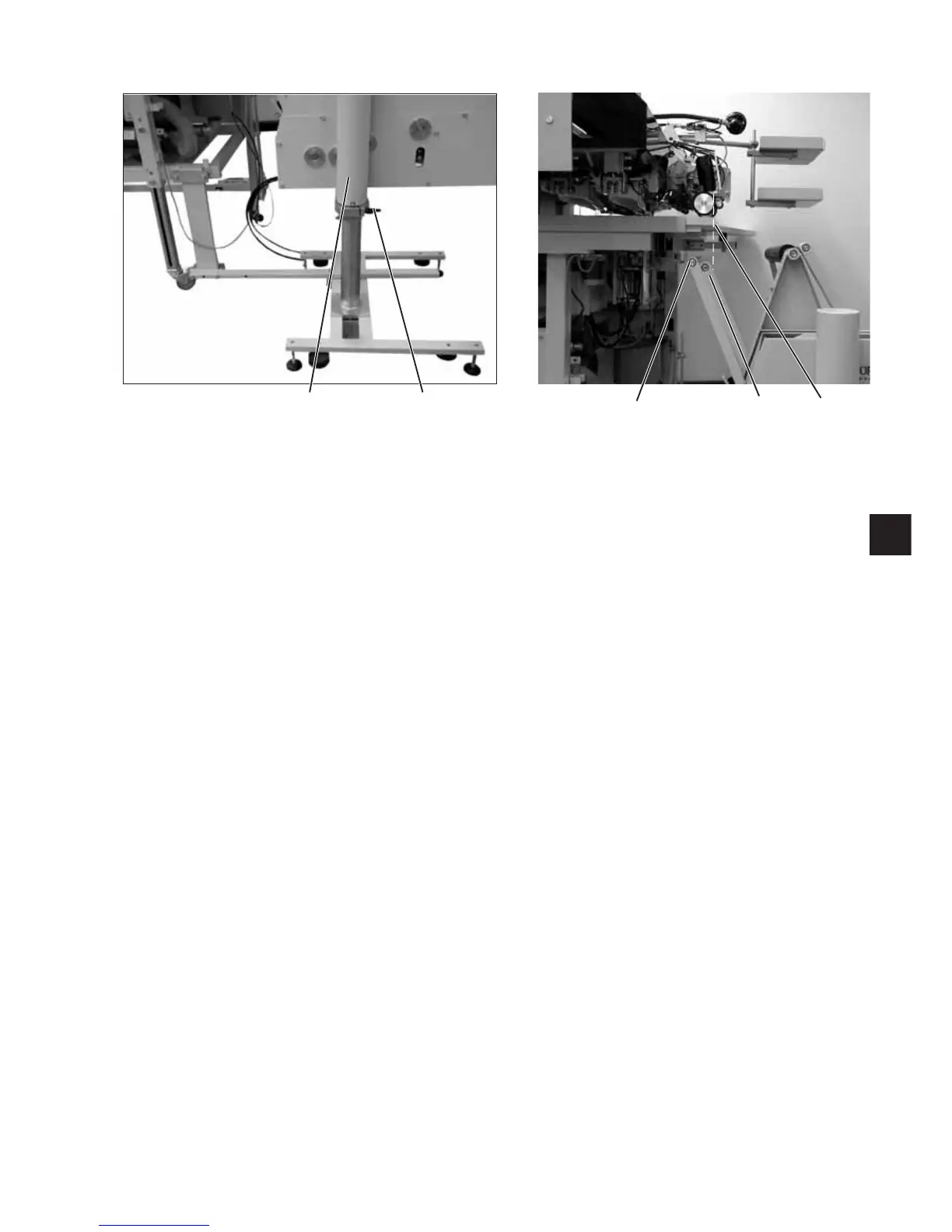

Aligning the stacker
–
Shift the stacker laterally in such a way that spar 11 is flush with
the table top edge 13.
–
Loosen the clamping lever 14.
–
Move the stacker up on cylinder 15 so that the moving smoother 12
does not hit the table top.
–
Tighten the clamping lever 14.
2
15
15 14
12 11 13
