8. Oil lubrication
Caution: Danger of injury !
Oil can cause skin rashes.
Avoid longer skin contact.
After contact wash yourself thoroughly.
ATTENTION !
The handling and disposal of mineral oils is subject to legal
regulations.
Deliver used oil to an authorized collecting station.
Protect your environment.
Be careful not to spill any oil.
For filling up the oil reservoirs use nothing but DA-10 lubricating oil or
an equivalent oil with the following specification:
–
Viscosity at 40° C: 10 mm
2
/s
–
Ignition point: 150° C
DA-10 is available from the DÜRKOPP ADLER AG sales offices under
the following parts numbers:
250 ml-Container: 9047 000011
1 l - Container: 9047 000012
2 l - Container: 9047 000013
5 l - Container: 9047 000014

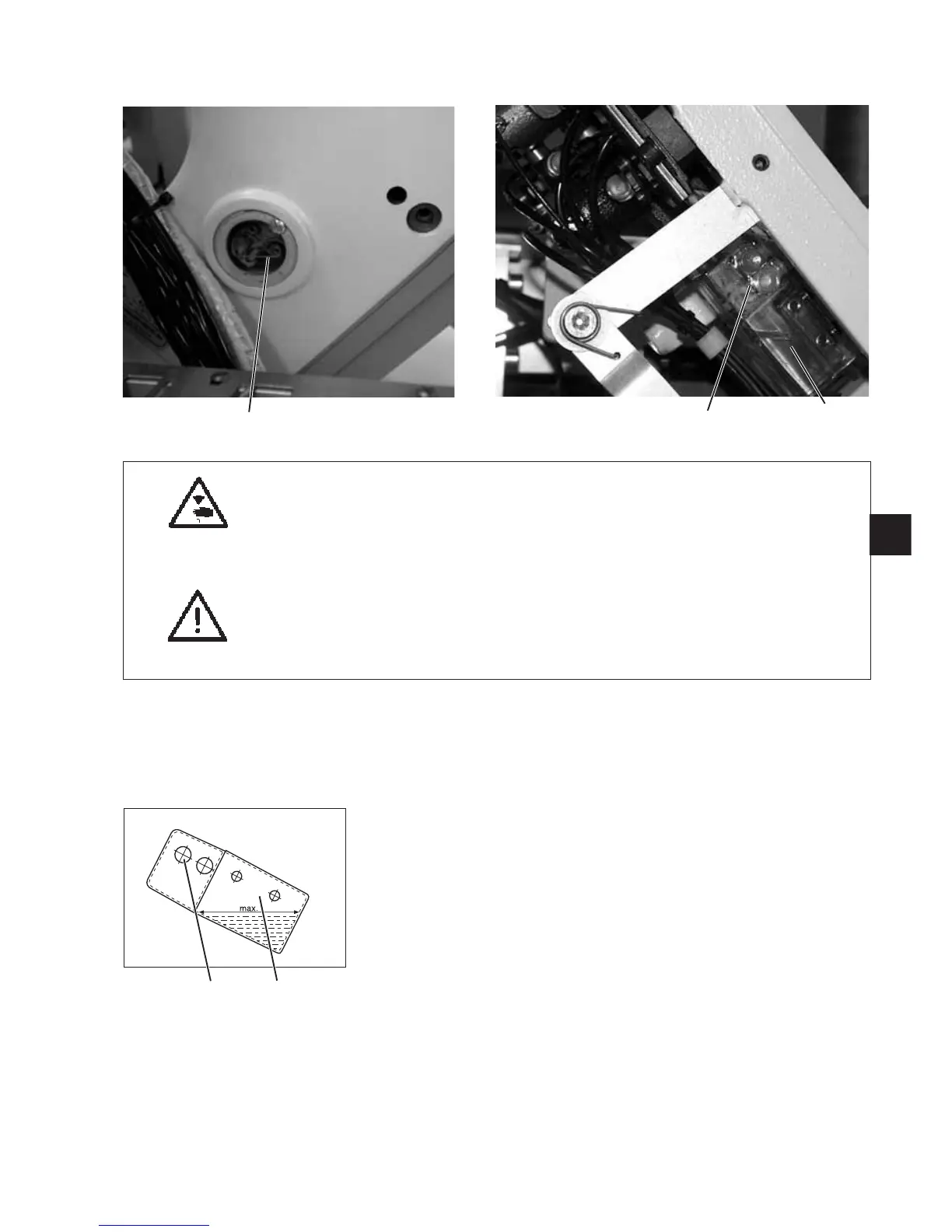

Oil reservoir for the lubrication of the machine head
–
Fill oil reservoir 1 with oil through the drill-holes in the inspection
glass.
The oil level must be between the “Min” and “Max” markings.
Oil reservoir for the hook lubrication
–
Tilt the machine head up (see Operating Instructions, chapter 2.3).
–
Fill the oil reservoir 2 with oil up to the “max.” marking through
nipple 3 (see sketch).
2
23
32
1
23
