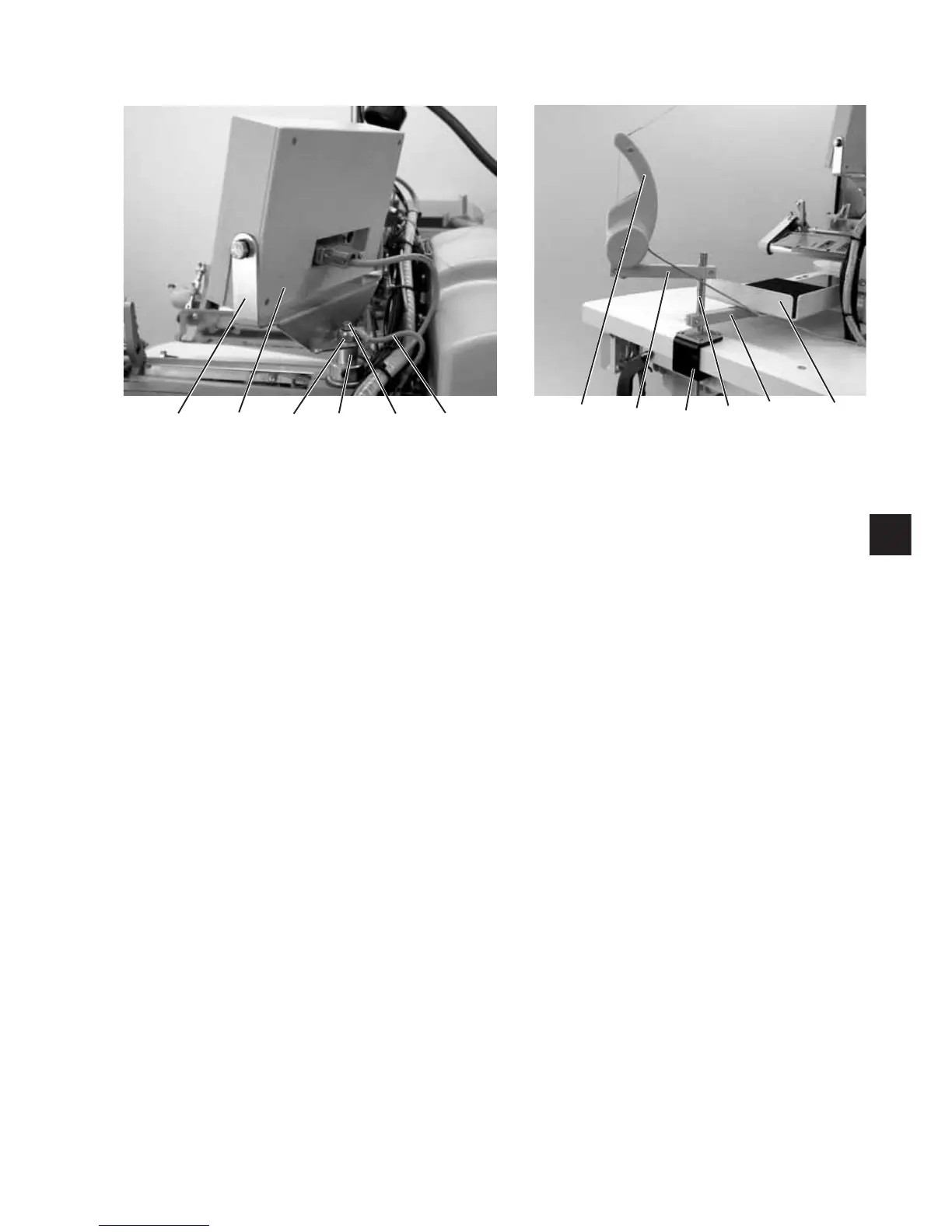

4.4 Fastening the holder for control panel, bobbin winder and right-hand tray
Control panel
–
Fasten angle 6 and control panel 5 to bolt 3 with nut 4.
–
Fasten cable 1 to bolt 3 with screw 2.
Bobbin w inder and tray
–
Push holder 11 with angle 10 onto the table top and tighten
with the screw.
–
Align the arms 9 and 12.
–
Fasten the tray 8 to the lower arm.
–
Fasten the bobbin winder 7 to the upper arm.
See chapter 5.2 for connecting the bobbin winder.
2
11
6 543 21
7 1210119 8
