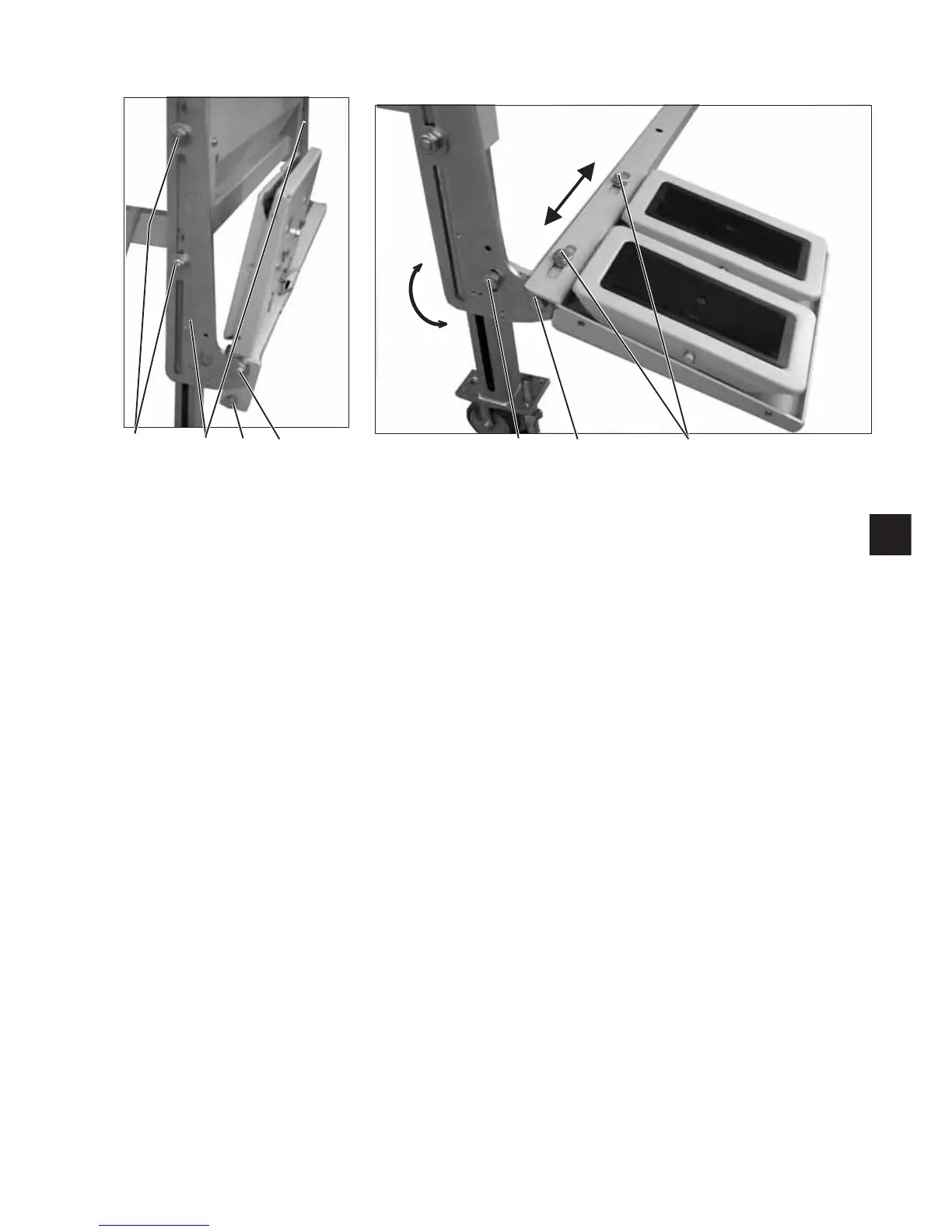

3.4 Adjusting the foot pedals
The height of the foot pedals can also be set, independently of the
height of the sewing unit.
The angle of slope and the lateral position of the foot pedals are also
adjustable.
Setting the height
–
Loosen nut 1 and shift both guides 2 in the slotted hole.
Loosen the screws 3 additionally, in order to displace them in the
next slotted hole.
Make sure to have the same height in both guides 2.
–
Tighten the nut 1.
Setting the angle of slope
–
Unscrew the screw 4 and swivel the pedal.
–
Adjust the angle of slope of the pedal.
–
Tighten the screws 3 (2x) and screw 4 with the pedal at the desired
position.
Setting the lateral position
–
Loosen the screws 5 and shift the pedal laterally.
–
Tighten screws 5 again.
