5.3 Checking the nominal voltage and connecting to the mains
The adaptation to the local mains voltage has to be done. The switch
element 2 of the main switch 1 has to be corrected accordingly.
–
Remove the mains plug.
–
Loosen the screw in the switch handle and remove the cover
(steps 2-5).
–

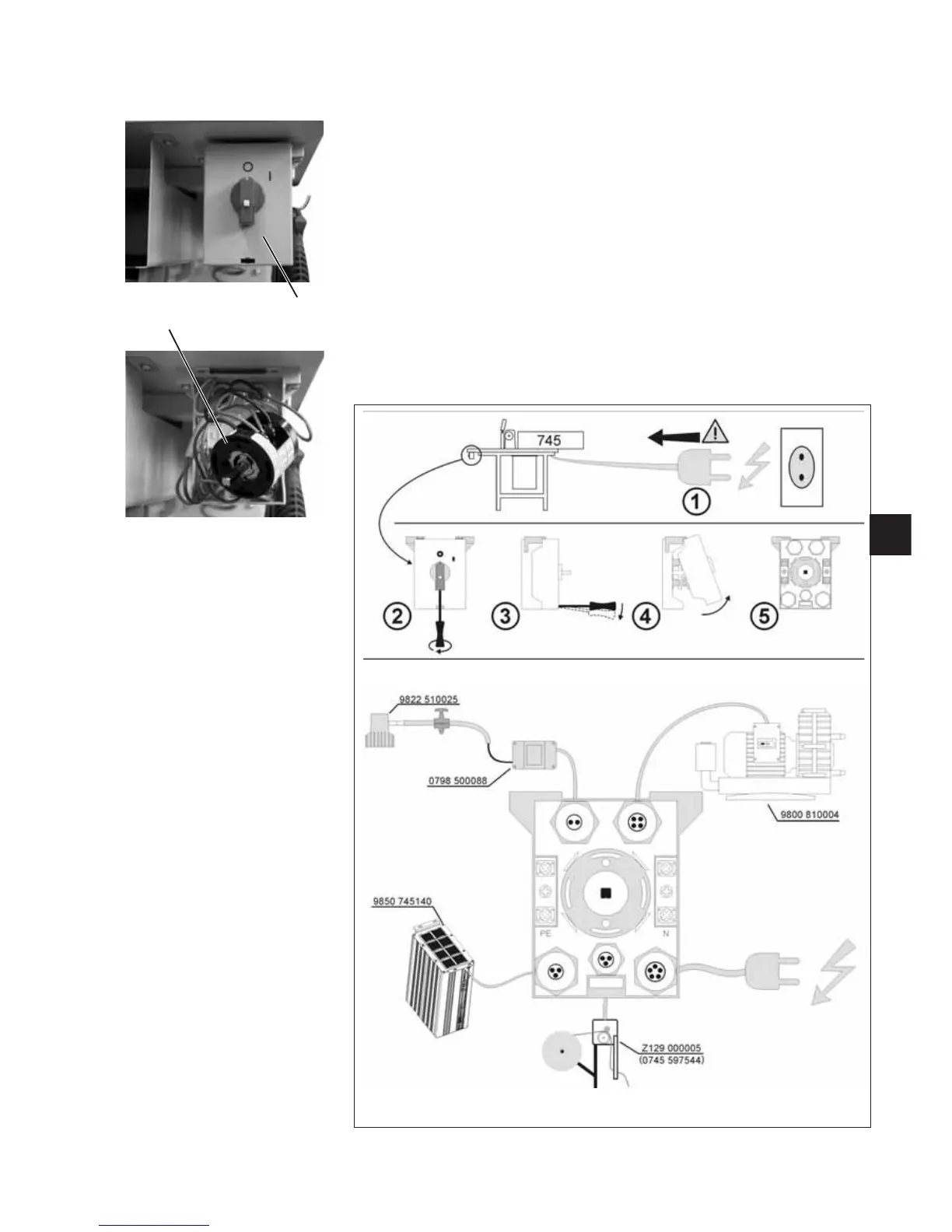

Check the configuration of the connections at the switch
element and change the connections accordingly
(see interconnection-diagram, sheet 1, e.g. next figurs).
–
Attach the c over again and fasten the screw.
–
Connect the mains plug.
