DSP 260
34 Owner‘s Manual
7 Configurations of the DSP 260
The DSP 260 offers 7 pre-defined configurations. A configuration is a basic setting that includes the
routing of inputs and outputs, the function of the outputs (Sub, Lo, Mid, Hi, Full Range) including basic x-
over filter settings, and different channel/parameter linking schemes.
The active configuration is defined by the selected program i. e., each program is based on a specific
configuration which is also displayed next to the program number and program name.

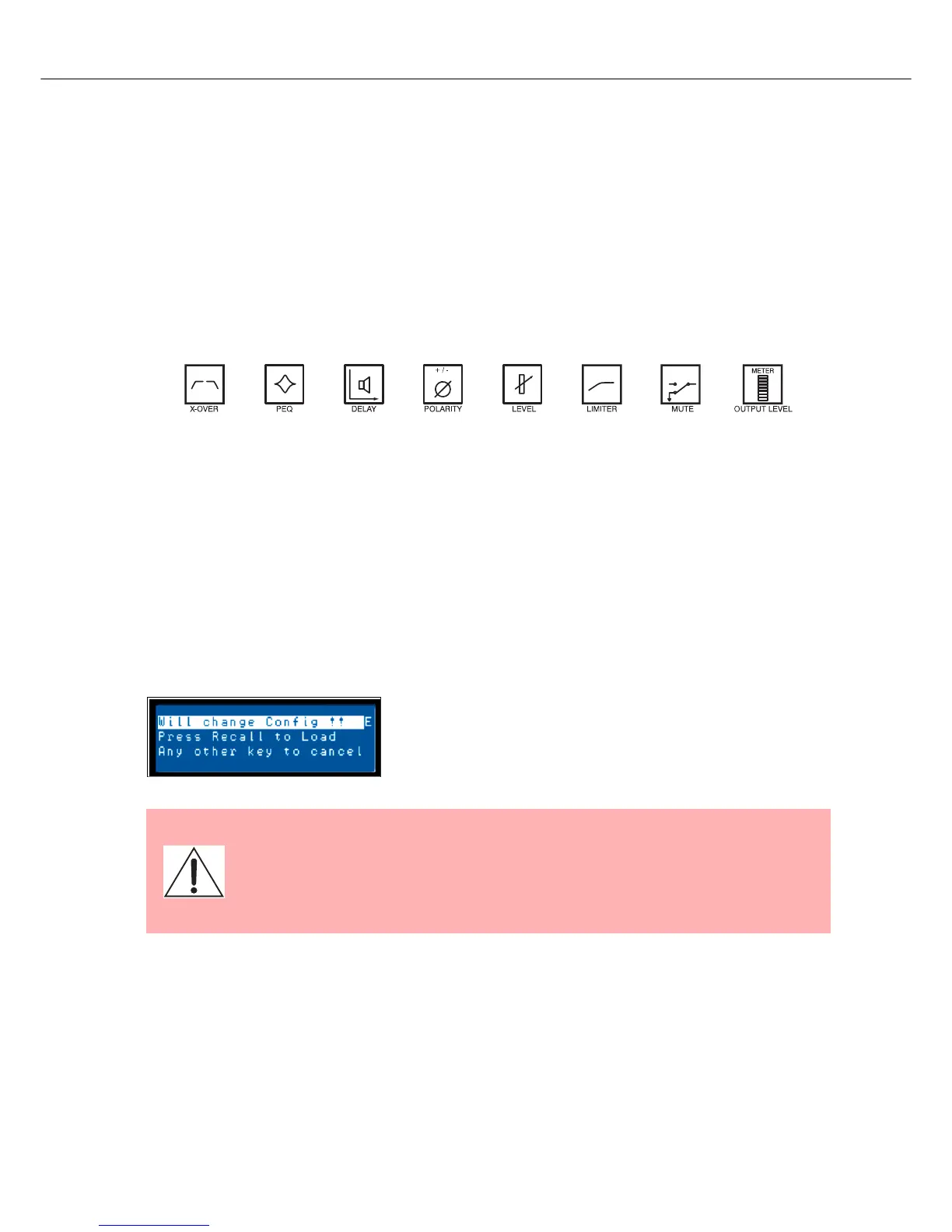

Each output employs two X-Over filters that can be assigned to a variety of filter types and slopes. Each
output channel provides 5 additional filters which can be used as parametric EQs, Low- / High-shelving
filters, or Lo-Pass and Hi-Pass filters, and also as All-Pass filters. In addition to a gain control for adjusting
the output level and a polarity switch, each output is monitored by a digital limiter with adjustable threshold,
attack and release.
List and Detailed Description
•2 Way Stereo + FR
•3 Way Stereo
•4 Way + FR
•5 Way + FR
• Free Configuration - Full Edit 2 in 6 Out
• 3 Way Stereo - Mono Sub + FR
• 4 Way Stereo - Mono Sub + LF
Please use caution when changing configurations.
Note:
Not all parameters may be accessible in every preset and, depending on the
configurations set by the contractor/installer, not all presets and/or preset
values may be available for editing. Changes to preset availability, parameter
availability and preset value ranges can only be set using the DSP 260 Editor
PC application.
