DSP 260

40 Owner‘s Manual

7.6 3-Way Stereo-MonoSub+FR

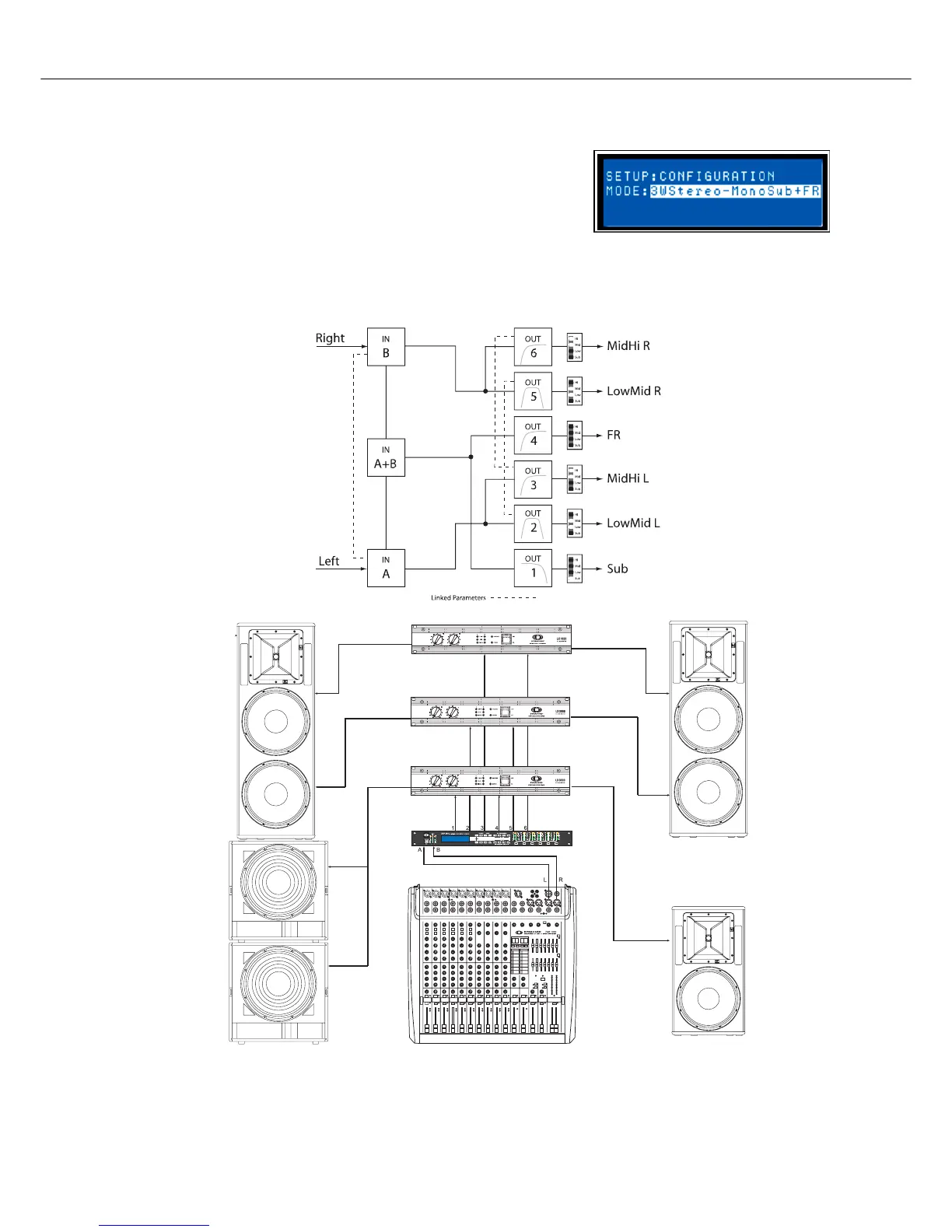

This 3-way configuration provides stereo crossover for Low-

frequency and High-frequency devices and a summed mono feed

for subs as well as a Full-range output. IN A serves at the left input

and IN B serves as the right input. OUT 1 is a mono Sub-frequency

channel, OUT 2 & 5 are L/R Low-frequency channels, OUT 3 & 6

are L/R High-frequency channels and OUT 4 is the Full-range channel.

Note: On Input channels, all Parametric EQ and Graphic EQ parameters are linked. For Output channels,

linking applies to Crossovers, EQ, Delay Level and Limiter.

(Mono)

Hi Mid L

Lo Mid L

Sub

Hi Mid R

Lo Mid R
