Dynacord DSP 260 User Manual

DSP 260
Owner‘s Manual 39

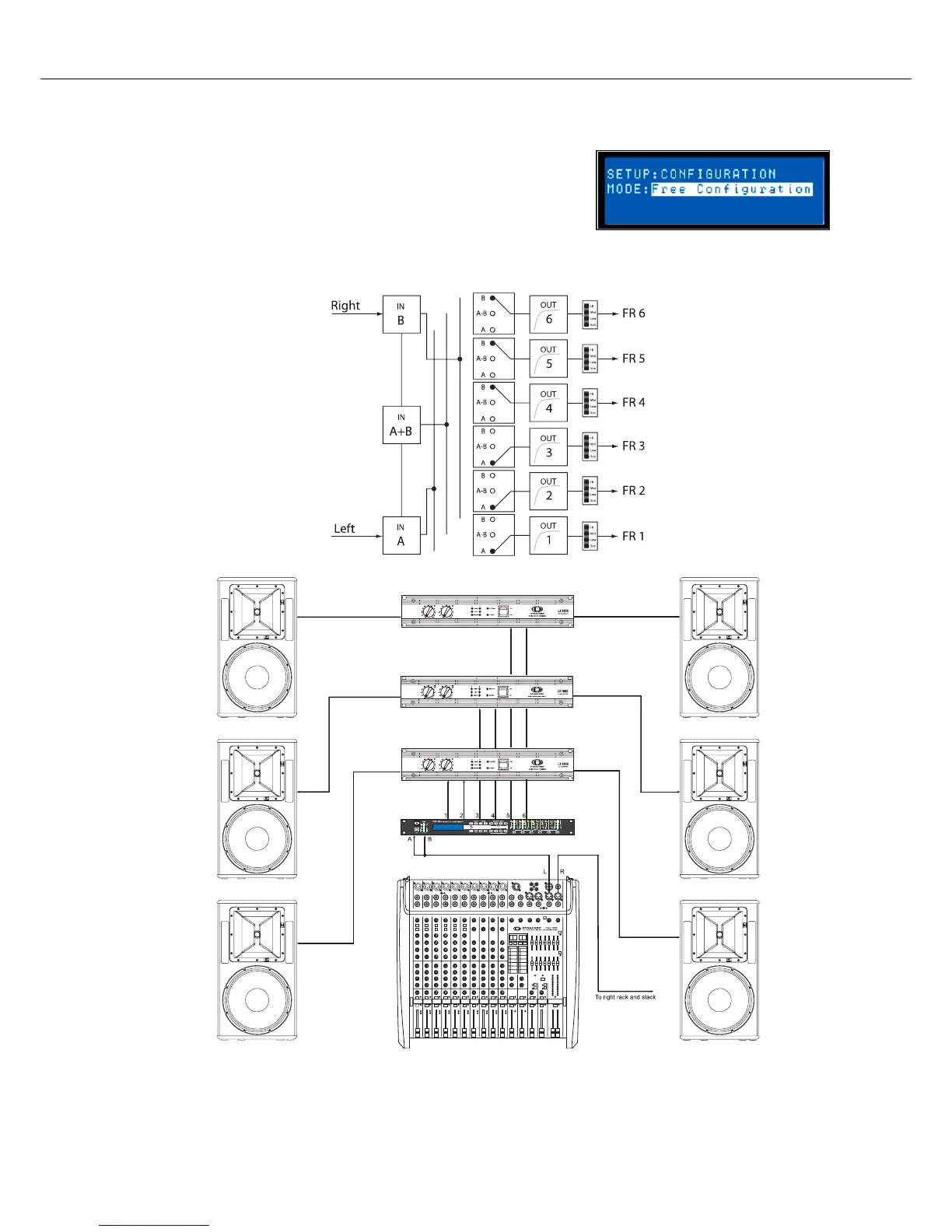

7.5 Free Configuration - Full Edit 2 In 6 Out
In this configuration, all 6 outputs are configured for full range
operation. OUT 1, OUT 2 and OUT 3 get their signal-feed from IN A
while OUT 4, OUT 5 and OUT 6 are fed from the input channel IN B.
This configuration provides a “blank slate” for creating any custom
routing and processing application.
Note: In this Configuration, no channels or parameters are linked.
FR6
FR4
FR2
FR5
FR3
FR1
