DSP 260
Owner‘s Manual 35

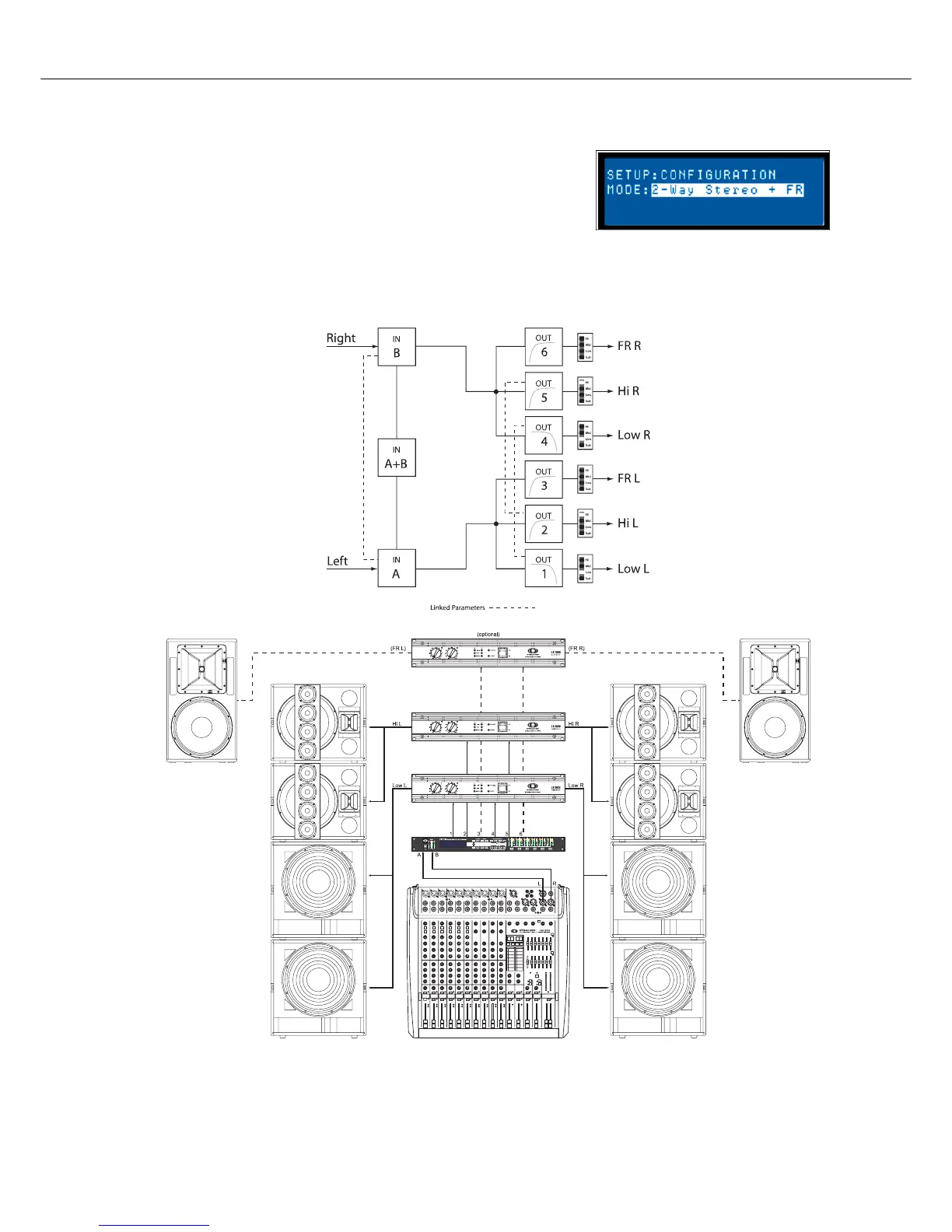

7.1 2-Way Stereo + Full Range
This configuration generally represents a 2-way stereo frequency
crossover, where IN A serves as the left input channel and IN B as
the right input channel. OUT 1 is the left Low-frequency output and
OUT 2 is the left High-frequency output. OUT 4 and OUT 5 are the
corresponding right Low-frequency and High-frequency output
channels
Note: On Input channels, all Parametric EQ and Graphic EQ parameters are linked. For Output channels,
linking applies to Crossovers, EQ, Delay Level and Limiter.
